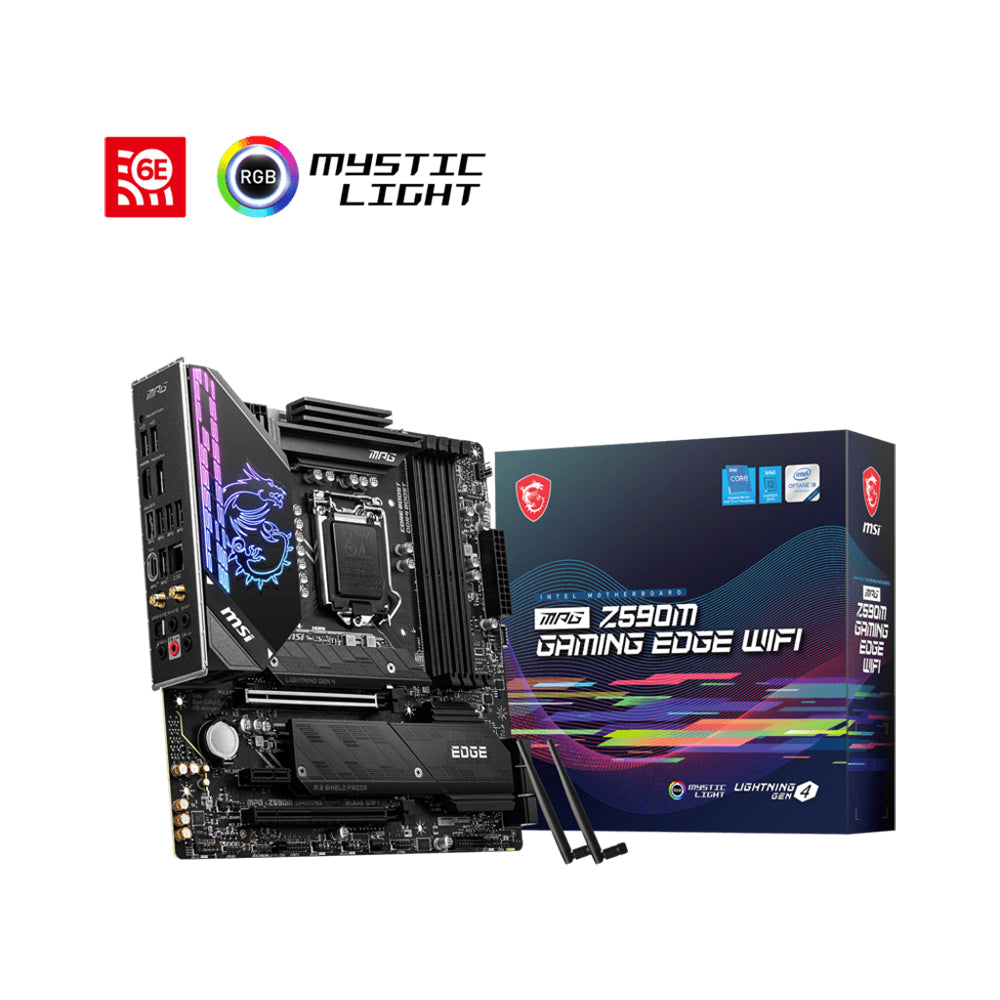

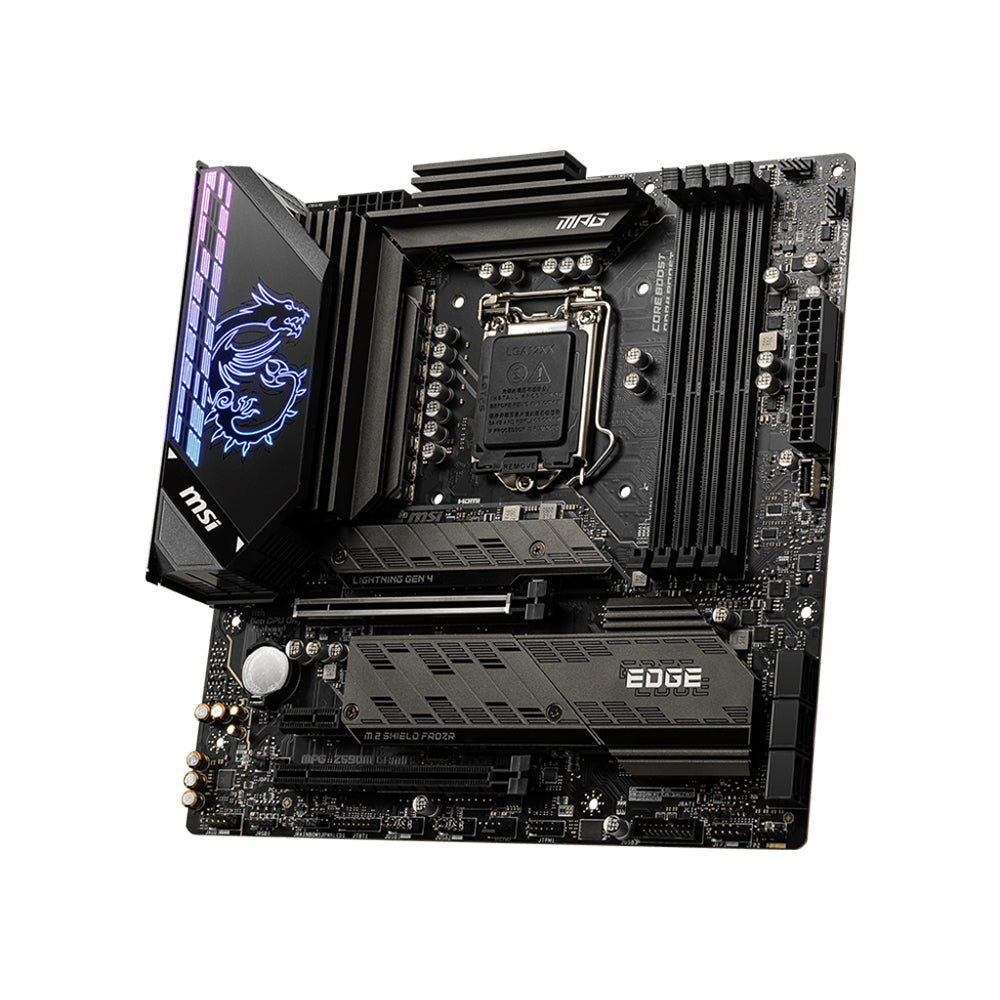

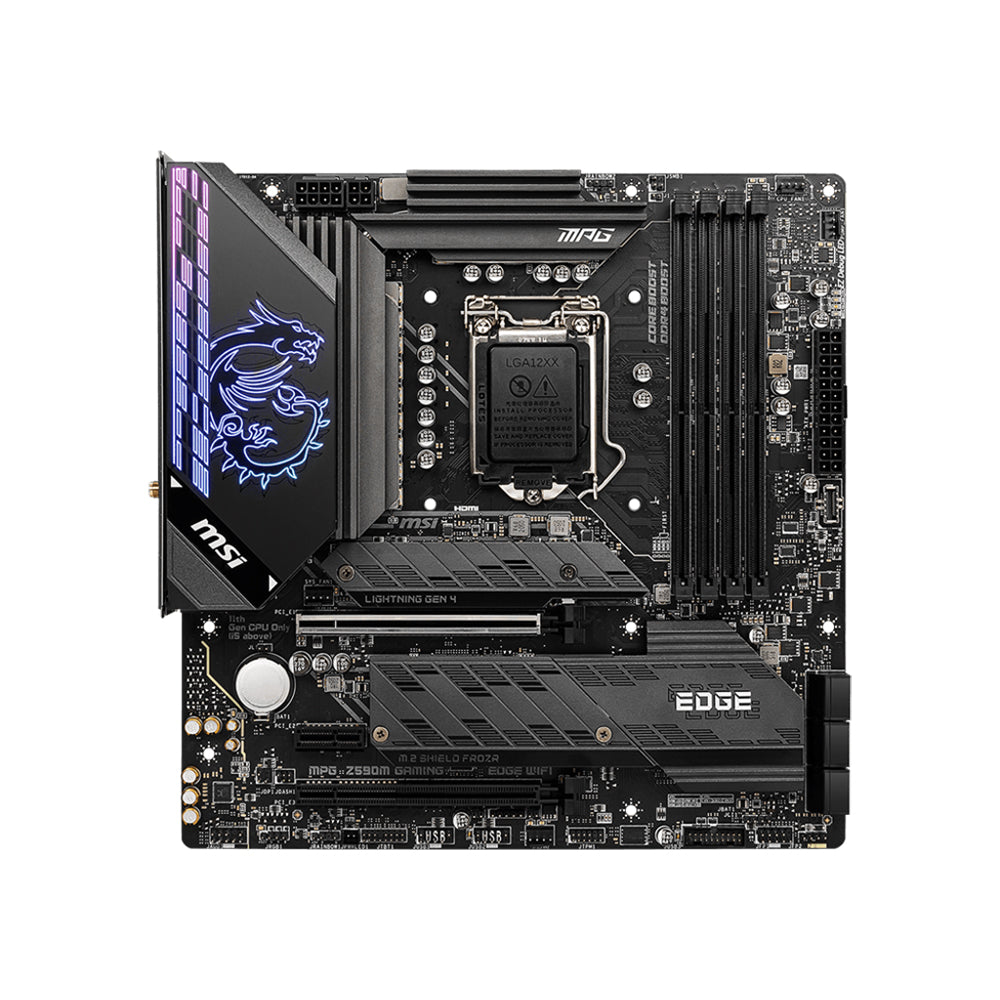

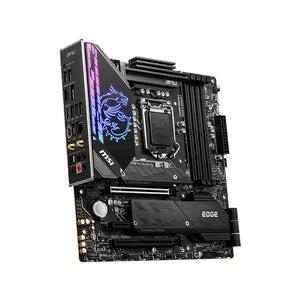

MSI MPG Z590M GAMING EDGE WIFI Motherboard - LGA 1200, DDR4, PCIe 4.0, Micro-ATX

The MSI MPG Z590M GAMING EDGE WIFI Motherboard is a high-performance Micro-ATX motherboard designed for gamers and PC enthusiasts. It supports Intel's 10th and 11th Generation processors and is equipped with advanced features to enhance your gaming experience.Key Features:

• Processor Compatibility:
  • Supports Intel® Core™ 10th and 11th Generation processors, as well as Pentium Gold and Celeron processors using the LGA 1200 socket.
• Chipset:
  • Intel Z590 chipset for improved performance and features.
• Memory Support:
  • Slots: 4 x DDR4 memory slots
  • Maximum Capacity: Up to 128GB
  • Speed Support:
    • Supports DDR4 speeds up to 5333+(OC) MHz for high-performance memory configurations.
• Expansion Slots:
  • PCIe Slots:
    • 2 x PCIe 4.0 x16 slots (one from the CPU, one from the chipset)
    • 1 x PCIe 3.0 x1 slot.
• Storage Options:
  • M.2 Slots:
    • 2 x M.2 slots (M2_1 supports PCIe 4.0; M2_2 supports PCIe 3.0/SATA)
    • SATA Ports: 6 x SATA III (6Gb/s) ports for traditional storage solutions.
• Networking:
  • LAN Controller: Intel I225V (2.5Gbps) for reliable wired connectivity.
  • Wi-Fi: Integrated Intel® Wi-Fi 6E AX210 for fast wireless connections with Bluetooth® support.
• Audio Features:
  • Realtek® ALC4080 Codec for high-definition audio quality with support for up to 7.1-channel audio.

Advanced Features

• USB Connectivity:

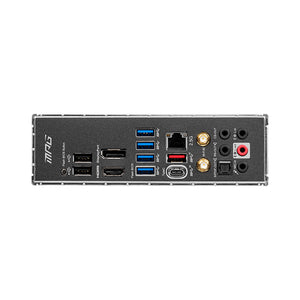

  • Includes multiple USB ports, such as USB 3.2 Gen2x2 Type-C (20Gbps) on the rear panel and several USB Type-A ports for versatile connectivity options.
• Enhanced Thermal Solutions:
  • Features M.2 Shield Frozr technology to prevent throttling of M.2 SSDs and ensure optimal performance during intense workloads.

Design and Build Quality

The MPG Z590M GAMING EDGE WIFI showcases a sleek design with a black aesthetic complemented by customizable RGB lighting, providing both style and functionality. Its Micro-ATX form factor allows it to fit in a wide range of cases while offering ample features for high-performance setups.
