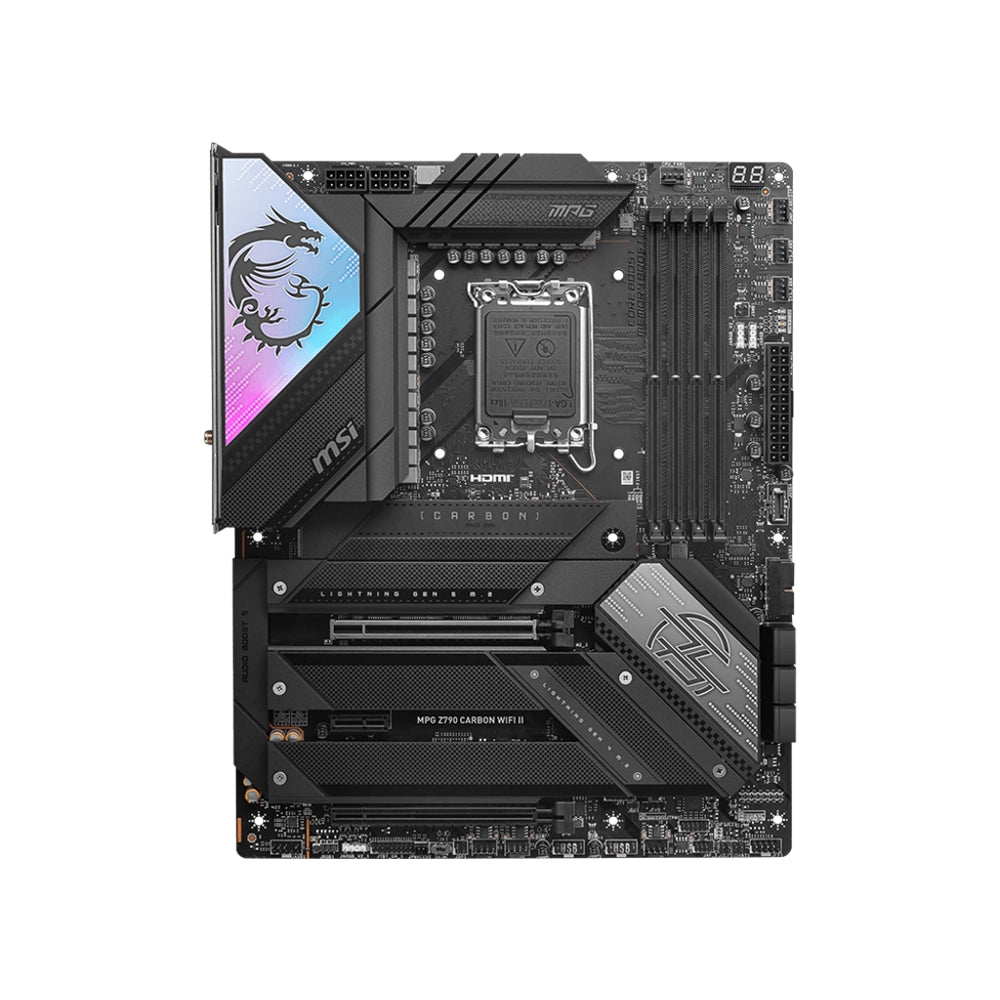

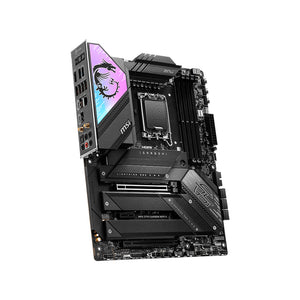

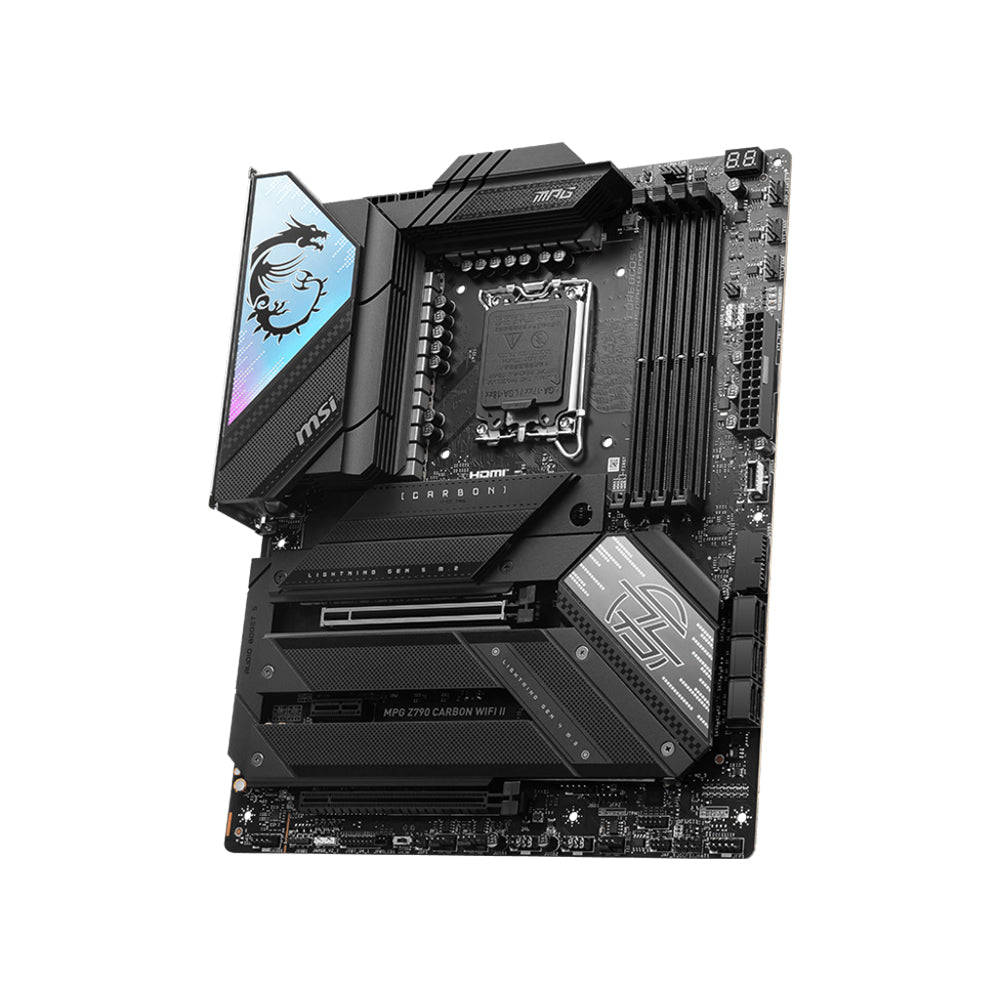

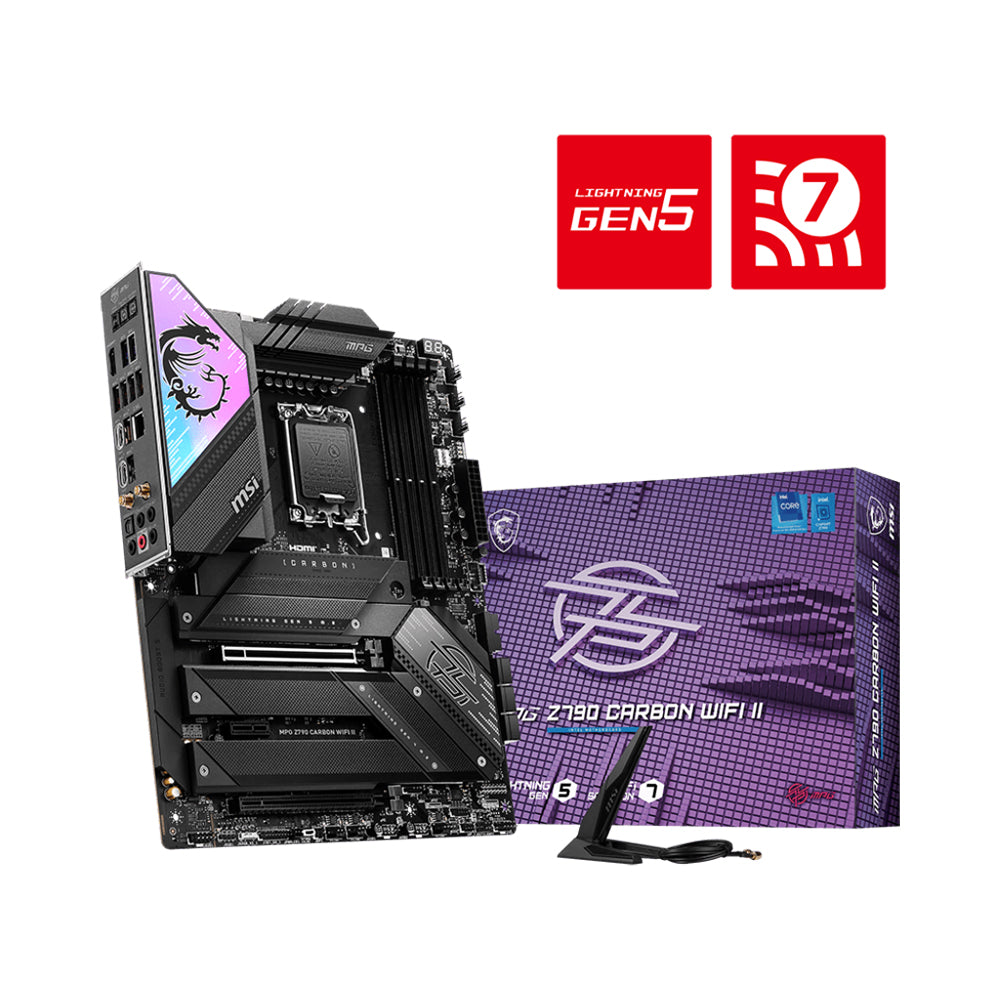

MSI MPG Z790 CARBON WIFI II Motherboard - LGA 1700, DDR5, PCIe 5.0, ATX

The MSI MPG Z790 CARBON WIFI II Motherboard is a high-performance ATX motherboard designed for Intel's latest 12th and 13th Generation processors. This motherboard combines advanced features with a stylish design, making it ideal for gamers and PC enthusiasts.Key Features:

• Processor Compatibility:
  • Supports Intel® Core™ 14th, 13th, and 12th Generation processors, as well as Intel® Pentium® Gold and Celeron® processors using the LGA 1700 socket.
• Chipset:
  • Intel Z790 chipset for enhanced performance and features.
• Memory Support:
  • Slots: 4 x DDR5 UDIMM slots
  • Maximum Capacity: Up to 256GB
  • Speed Support:
    • Supports DDR5 speeds up to 7800+(OC) MHz with Intel® XMP3.0 overclocking capabilities.
• Expansion Slots:
  • PCIe Slots:
    • 2 x PCIe 5.0 x16 slots (one from CPU)
    • 1 x PCIe 3.0 x1 slot
    • Additional PCIe slots for expansion cards.
• Storage Options:
  • M.2 Slots:
    • Multiple M.2 slots with the latest PCIe 5.0 support, featuring the innovative Screwless M.2 Shield Frozr for easy installation.
    • SATA Ports: Several SATA III (6Gb/s) ports for traditional storage solutions.
• Networking:
  • LAN Controller: Intel® 2.5Gbps LAN for reliable wired connectivity.
  • Wi-Fi: Integrated Wi-Fi 7 solution supporting MU-MIMO technology with Bluetooth® 5.4 for fast wireless connections.
• Audio Features:
  • High-definition audio capabilities with premium audio components.

Advanced Features

• Smart Button:
  • A multifunction button allows quick access to various hardware controls such as Safe Boot, Turbo Fan, and EZ LED control directly from the BIOS.
• Flash BIOS Button:
  • Easily update the BIOS without needing a CPU or memory installed.
• Enhanced Thermal Solutions:
  • M.2 Shield Frozr technology to prevent throttling of M.2 SSDs and ensure optimal performance during intense workloads.

Design and Build Quality

The MPG Z790 CARBON WIFI II features a sleek carbon black design with customizable Mystic Light RGB lighting, providing both aesthetic appeal and functionality. Its robust design ensures durability while offering ample space for high-performance components.
