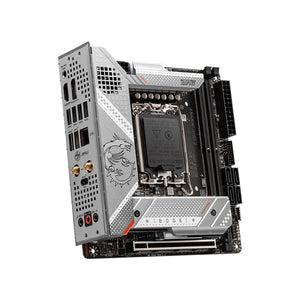

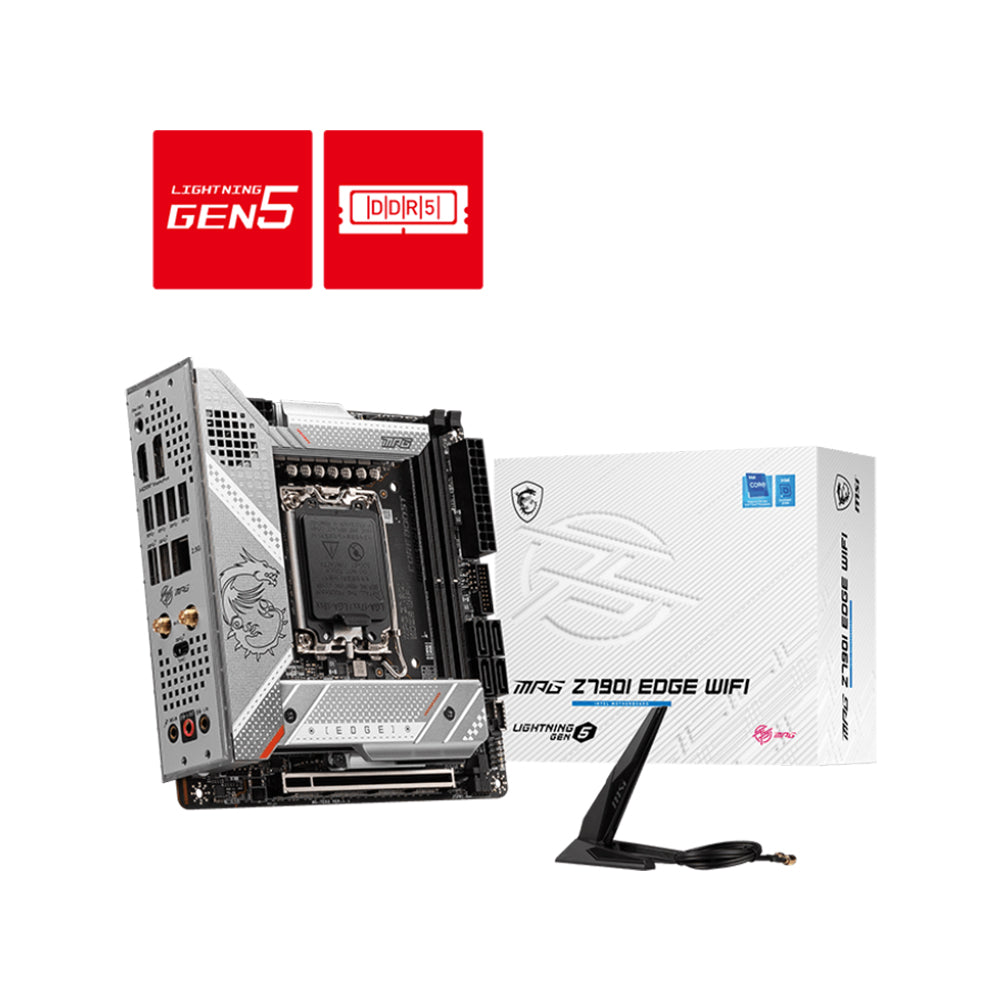

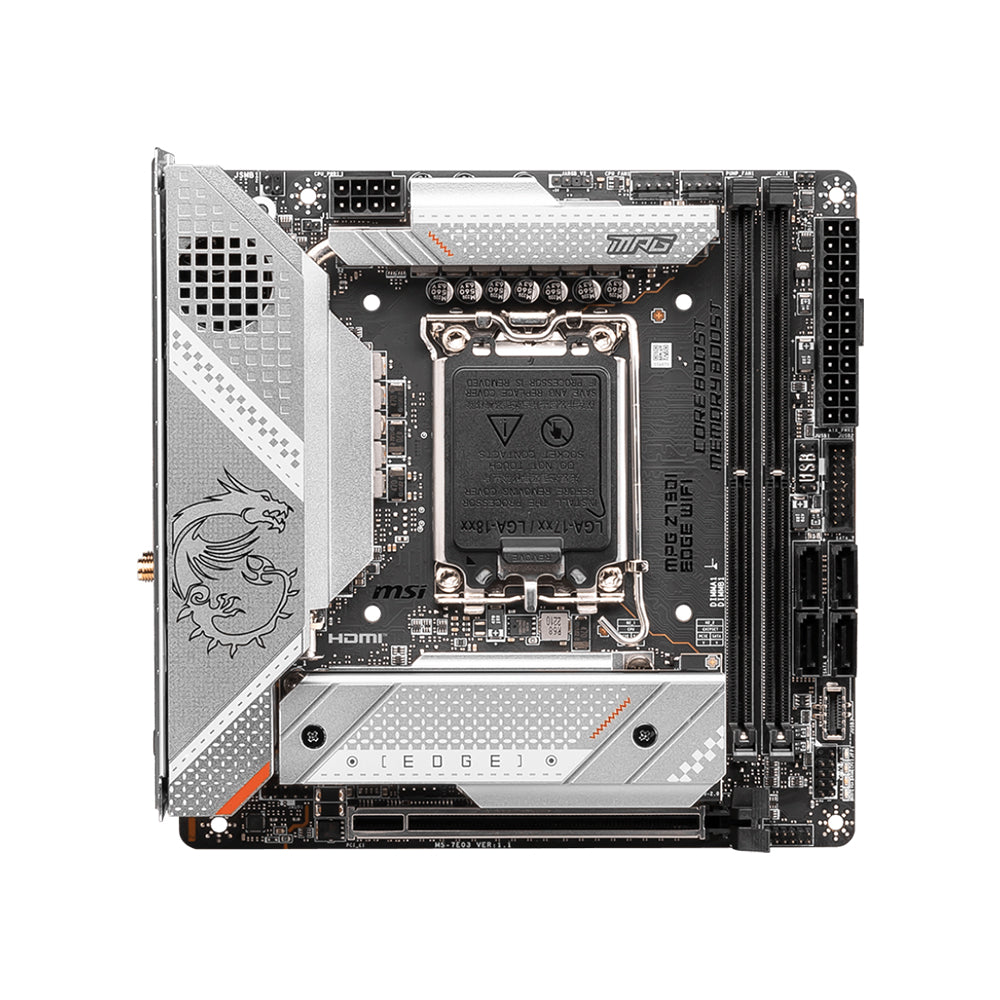

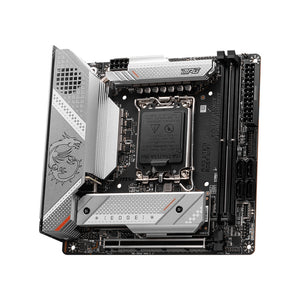

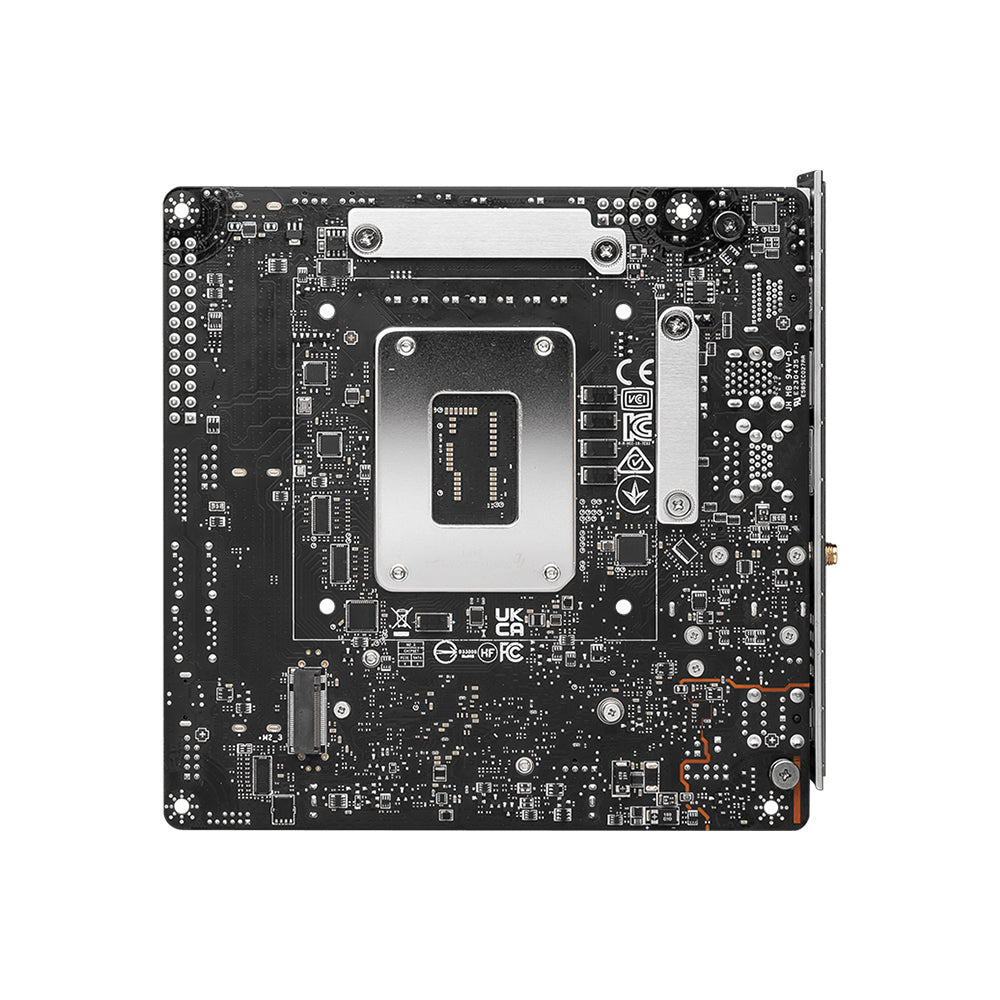

MSI MPG Z790I EDGE WIFI Motherboard - LGA 1700, DDR5, PCIe 5.0, Mini-ITX
Guarantee Safe Checkout
The MSI MPG Z790I EDGE WIFI Motherboard is a high-performance Mini-ITX motherboard designed for Intel's latest 12th and 13th Generation processors. With its compact form factor and advanced features, it is ideal for gamers and PC builders looking for powerful performance in a small package.Key Features:
-
Processor Compatibility:
- Supports Intel® Core™ 14th, 13th, and 12th Generation processors, as well as Intel® Pentium® Gold and Celeron® processors using the LGA 1700 socket.
-
Chipset:
- Intel Z790 chipset for enhanced performance and features.
-
Memory Support:
- Slots: 2 x DDR5 memory slots
- Maximum Capacity: Up to 64GB
-
Speed Support:
- Supports DDR5 speeds up to 8000+(OC) MHz with Intel® XMP 3.0 overclocking capabilities.
-
Expansion Slots:
-
PCIe Slot:
- 1 x PCIe 5.0 x16 slot for graphics cards.
-
PCIe Slot:
-
Storage Options:
-
M.2 Slots:
- 3 x M.2 slots (1 supports PCIe 4.0 x4; others support PCIe 3.0 x4/SATA)
- SATA Ports: 4 x SATA III (6Gb/s) ports for traditional storage solutions.
-
M.2 Slots:
-
Networking:
- LAN Controller: Intel® 2.5Gbps LAN for reliable wired connectivity.
- Wi-Fi: Integrated Intel® Wi-Fi 6E solution with Bluetooth® 5.3 support for fast wireless connections.
-
Audio Features:
- Realtek® ALC4080 Codec providing high-definition audio quality with support for up to 7.1-channel audio.
Advanced Features
-
Enhanced Thermal Solutions:
- Features an enlarged heatsink with heat-pipe technology, MOSFET thermal pads rated for up to 7W/mK, and M.2 Shield Frozr to prevent throttling during intense workloads.
-
USB Connectivity:

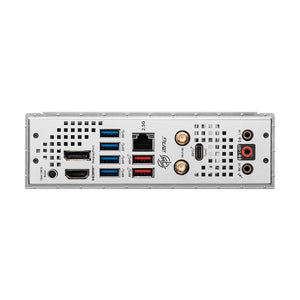

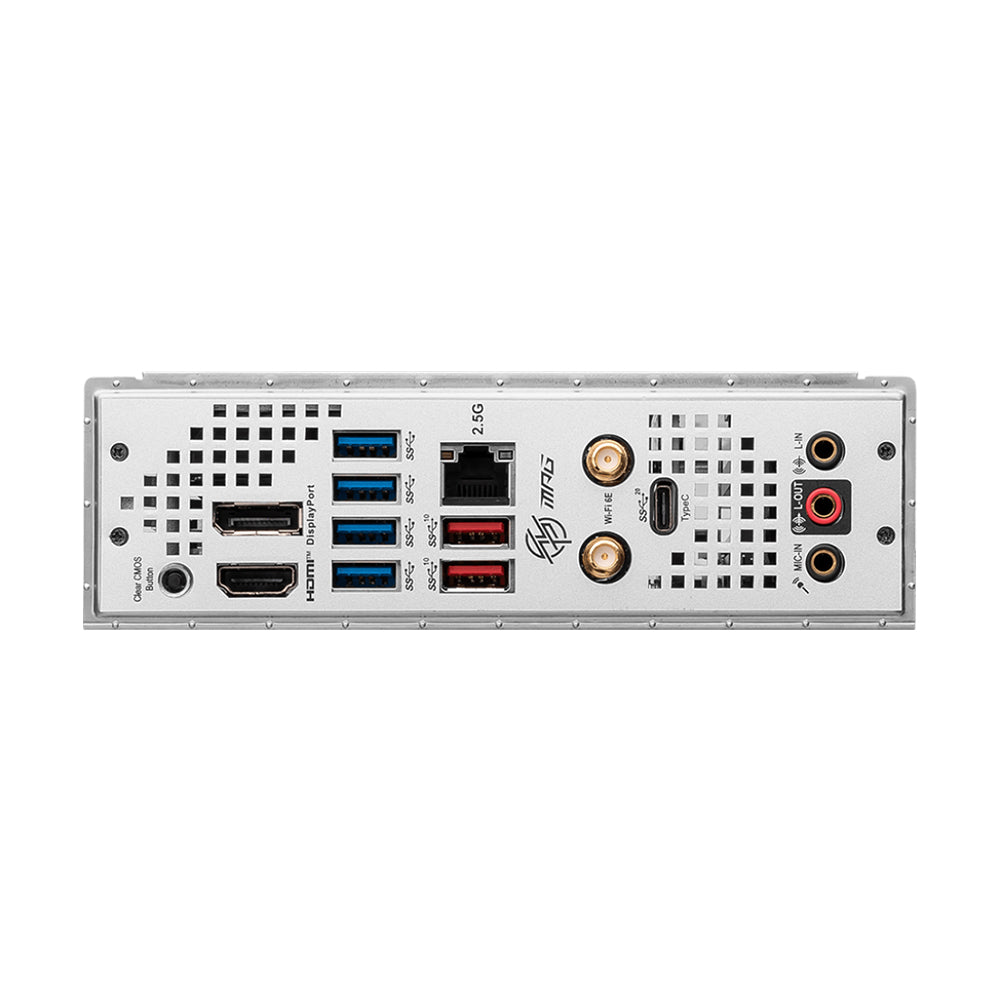

- Multiple USB ports including USB Type-C (20Gbps) and several USB Type-A ports for versatile connectivity options.
-
Debugging Features:
- EZ Debug LED indicators for easy troubleshooting.
Design and Build Quality
The MPG Z790I EDGE WIFI showcases a sleek black design with customizable RGB lighting, providing both aesthetic appeal and functionality in a compact Mini-ITX form factor.
