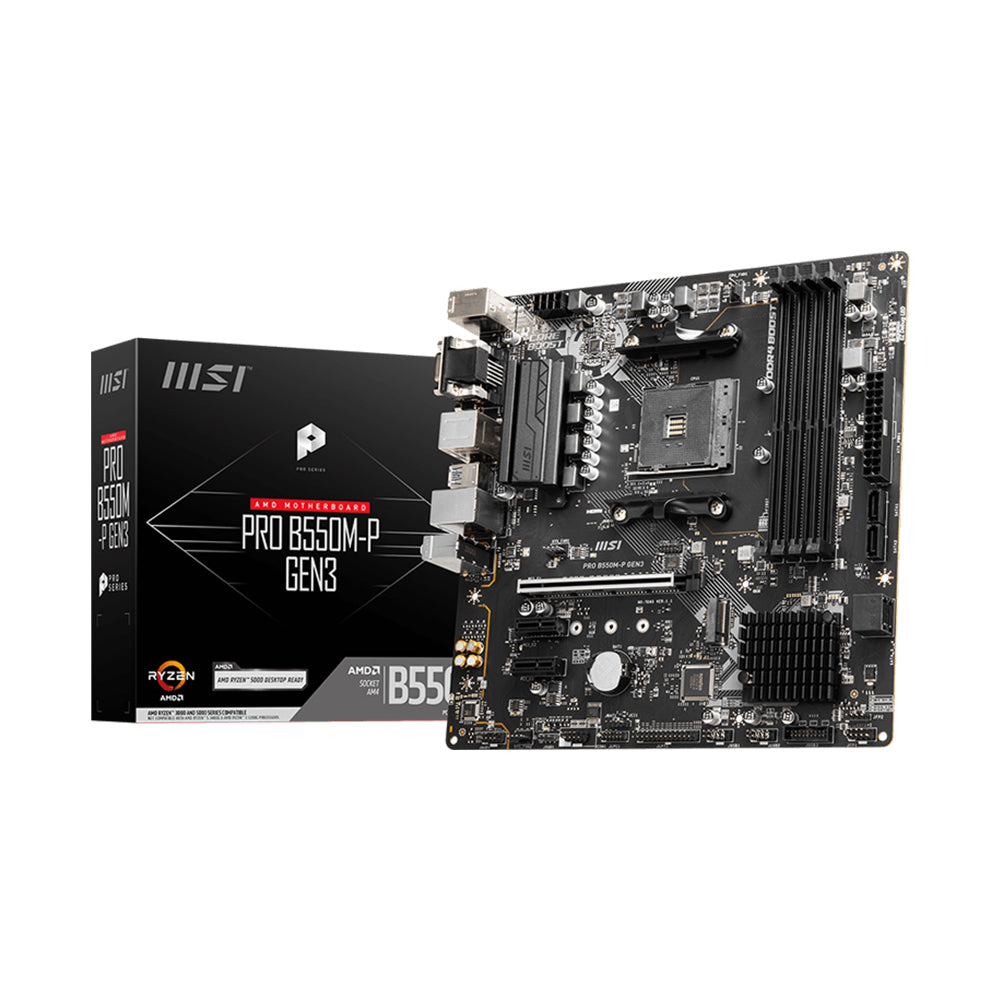

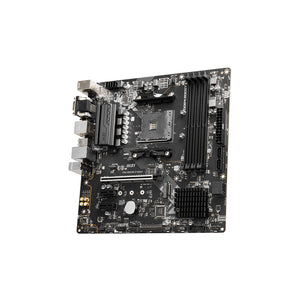

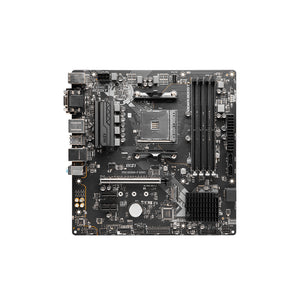

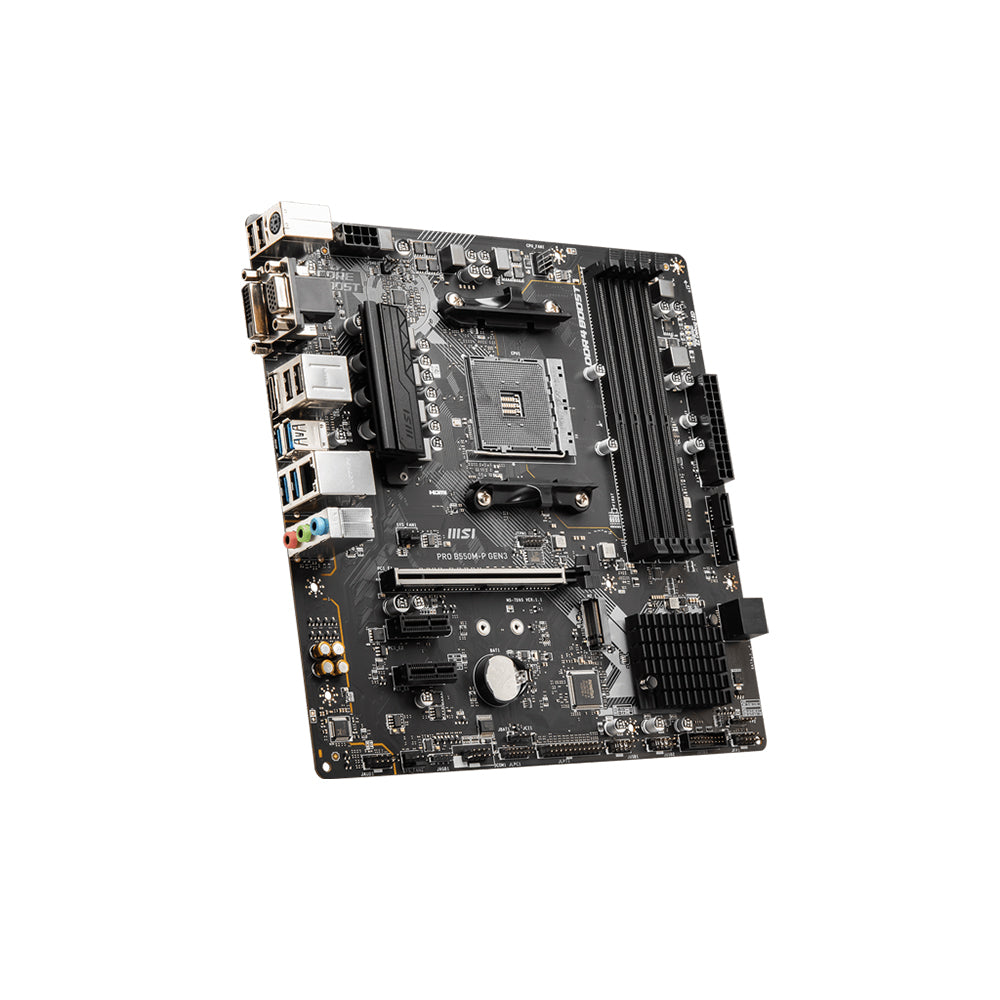

MSI PRO B550M-P GEN3 Motherboard - AM4, DDR4, PCIe 3.0, Micro-ATX

The MSI PRO B550M-P GEN3 Motherboard is a reliable Micro-ATX motherboard designed for AMD Ryzen processors. Featuring the AMD B550 chipset, this motherboard provides robust performance and extensive connectivity options, making it ideal for both gaming and productivity tasks.Key Features:

• Processor Compatibility:
  • Supports AMD Ryzen™ 5000 and 3000 Series desktop processors using the AM4 socket (not compatible with Ryzen™ 5 3400G and Ryzen™ 3 3200G).
• Chipset:
  • AMD B550 chipset for enhanced performance and features.
• Memory Support:
  • Slots: 4 x DDR4 DIMM slots
  • Maximum Capacity: Up to 128GB
  • Speed Support:
    • Supports DDR4 speeds up to 4400+ MHz (OC) and various lower frequencies (1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz).
• Expansion Slots:
  • PCIe Slots:
    • 1 x PCIe 3.0 x16 slot (from CPU)
    • 2 x PCIe 3.0 x1 slots (from chipset).
• Storage Options:
  • M.2 Slot:
    • 1 x M.2 slot (supports PCIe 3.0 x4 and SATA).
    • SATA Ports: 4 x SATA III (6Gb/s) ports for traditional storage solutions.
• Networking:
  • LAN Controller: Realtek® RTL8111H Gigabit LAN for reliable wired connectivity.
• Audio Features:
  • Realtek® ALC897 Codec providing high-definition audio quality with support for up to 7.1-channel audio.

Advanced Features

• RAID Support:
  • Supports RAID configurations (RAID 0, RAID 1, RAID 10) for enhanced data management.
• User-Friendly BIOS:
  • Fully controllable BIOS with fan control and temperature monitoring features.
• EZ Debug LED:
  • Debugging LEDs for easy troubleshooting during system setup.

Design and Build Quality

The PRO B550M-P GEN3 features a compact Micro-ATX form factor, ensuring efficient heat dissipation while providing ample space for high-performance components. Its durable construction ensures stability and longevity in various computing environments.
