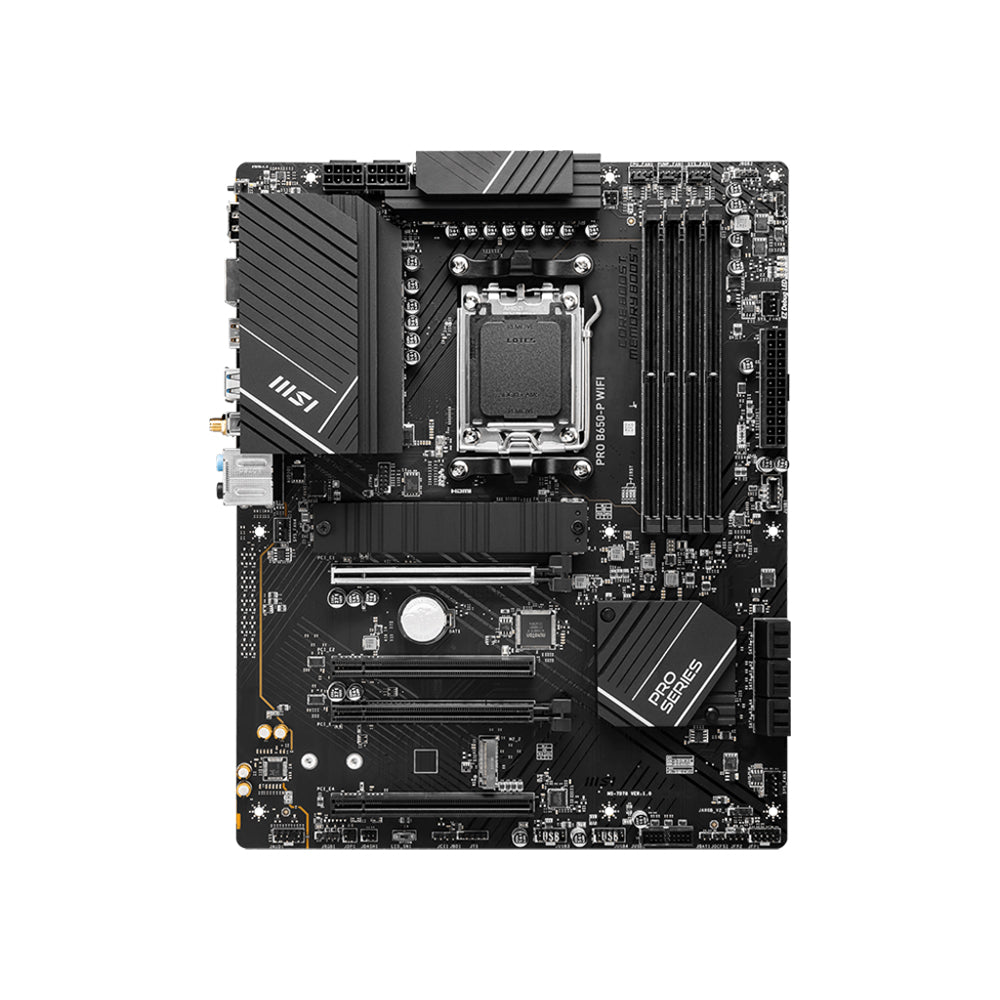

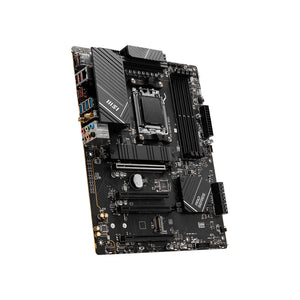

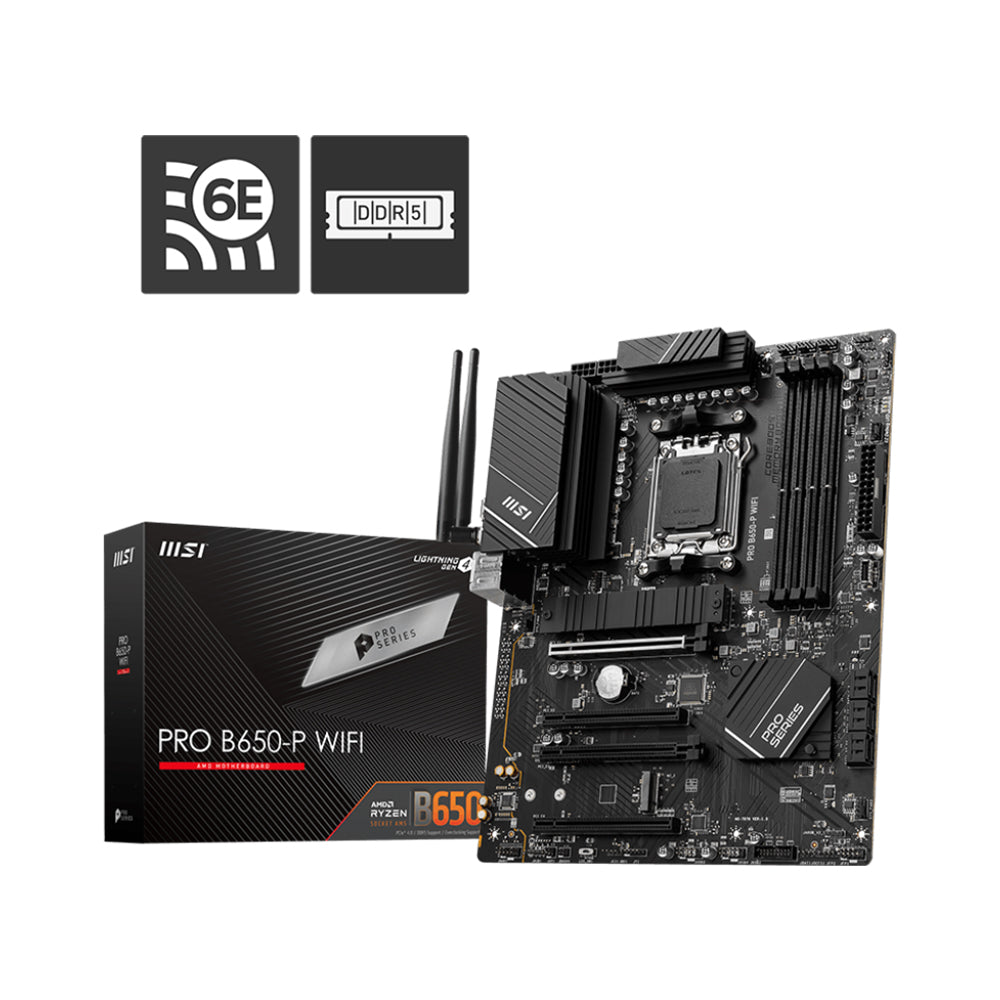

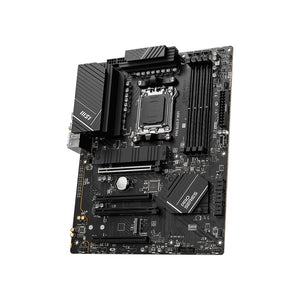

MSI PRO B650-P WIFI Motherboard - AM5, DDR5, PCIe 4.0, ATX

The MSI PRO B650-P WIFI Motherboard is designed for users looking to build a high-performance system with AMD's Ryzen 7000 Series processors. This ATX motherboard features the AMD B650 chipset and offers a range of advanced connectivity options, making it suitable for both gaming and professional applications.Key Features:

• Processor Compatibility:
  • Supports AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors using the AM5 socket.
• Chipset:
  • AMD B650 chipset for enhanced performance and features.
• Memory Support:
  • Slots: 4 x DDR5 memory slots
  • Maximum Capacity: Up to 128GB
  • Speed Support:
    • Supports DDR5 speeds up to 6400+ MHz (OC) and various lower frequencies (4800 MHz JEDEC).
• Expansion Slots:
  • PCIe Slots:
    • 1 x PCIe 4.0 x16 slot (from CPU)
    • 3 x PCIe slots (PCIe 3.0 and PCIe 4.0 configurations for additional expansion).
• Storage Options:
  • M.2 Slots:
    • 2 x M.2 slots supporting PCIe Gen4 x4 for high-speed NVMe SSDs.
    • SATA Ports: 6 x SATA III (6Gb/s) ports for traditional storage solutions.
• Networking:
  • LAN Controller: Realtek® RTL8125BG with 2.5Gbps LAN for reliable wired connectivity.
  • Wi-Fi: Integrated Wi-Fi 6E solution for fast wireless connections.
• Audio Features:
  • Realtek® ALC897 Codec providing high-definition audio quality with support for up to 7.1-channel audio.

Advanced Features

• Enhanced Power Design:
  • Features a robust power delivery system with a Duet Rail Power System, dual 8-pin CPU power connectors, and Core Boost technology for improved performance.
• Premium Thermal Solution:
  • Extended heatsinks and M.2 Shield Frozr technology to prevent thermal throttling during intensive workloads.

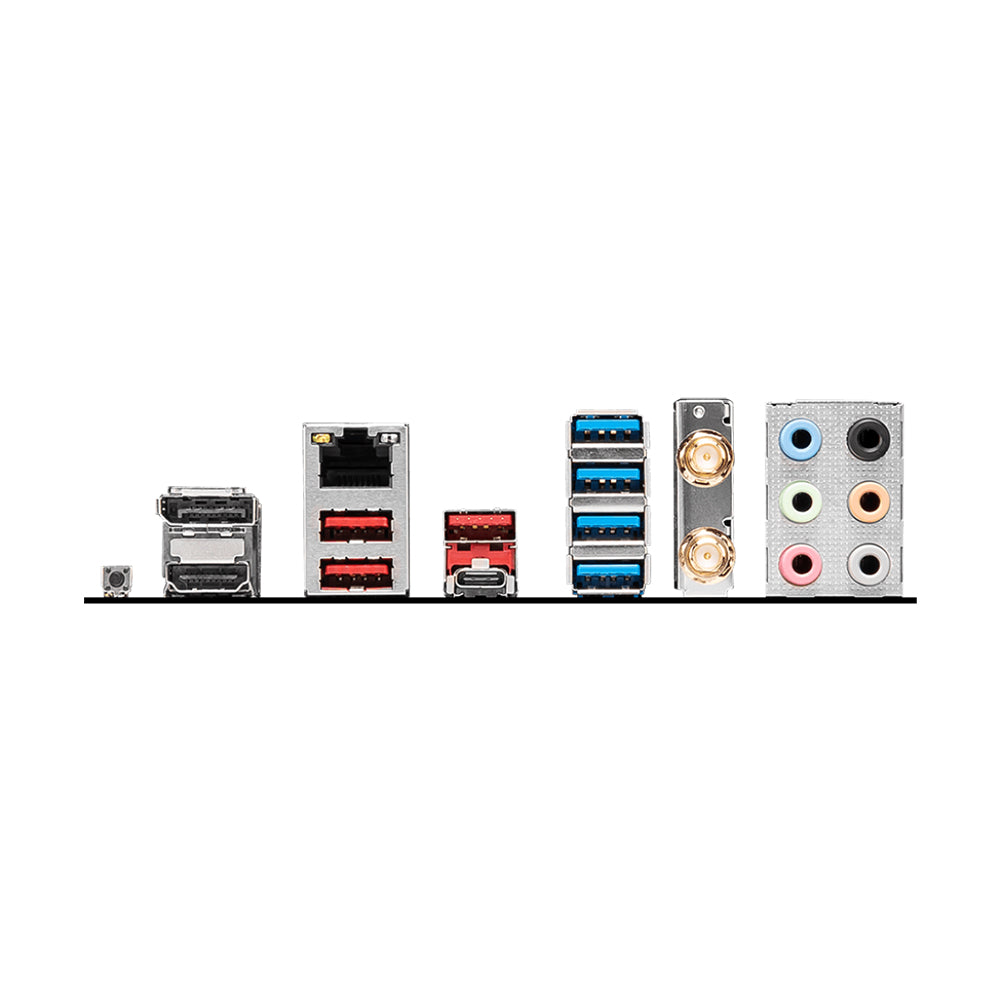

• Multiple USB Connectivity:
  • Includes USB Type-C and multiple USB Type-A ports for versatile connectivity options.

Design and Build Quality

The PRO B650-P WIFI features a durable ATX form factor, ensuring efficient heat dissipation while providing ample space for high-performance components. Its robust construction ensures stability and longevity in demanding environments.
