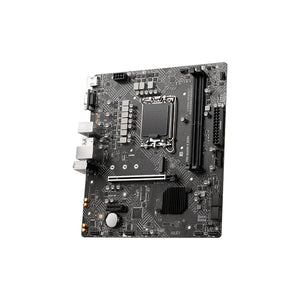

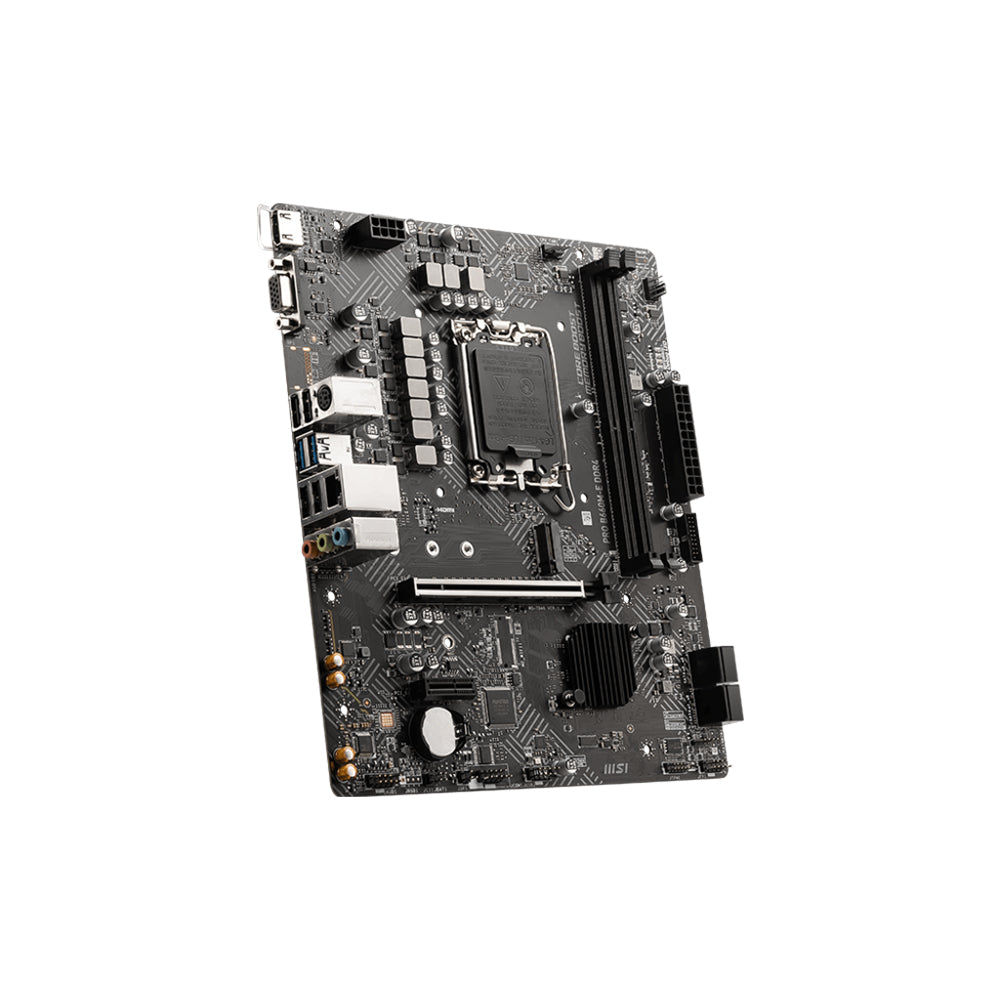

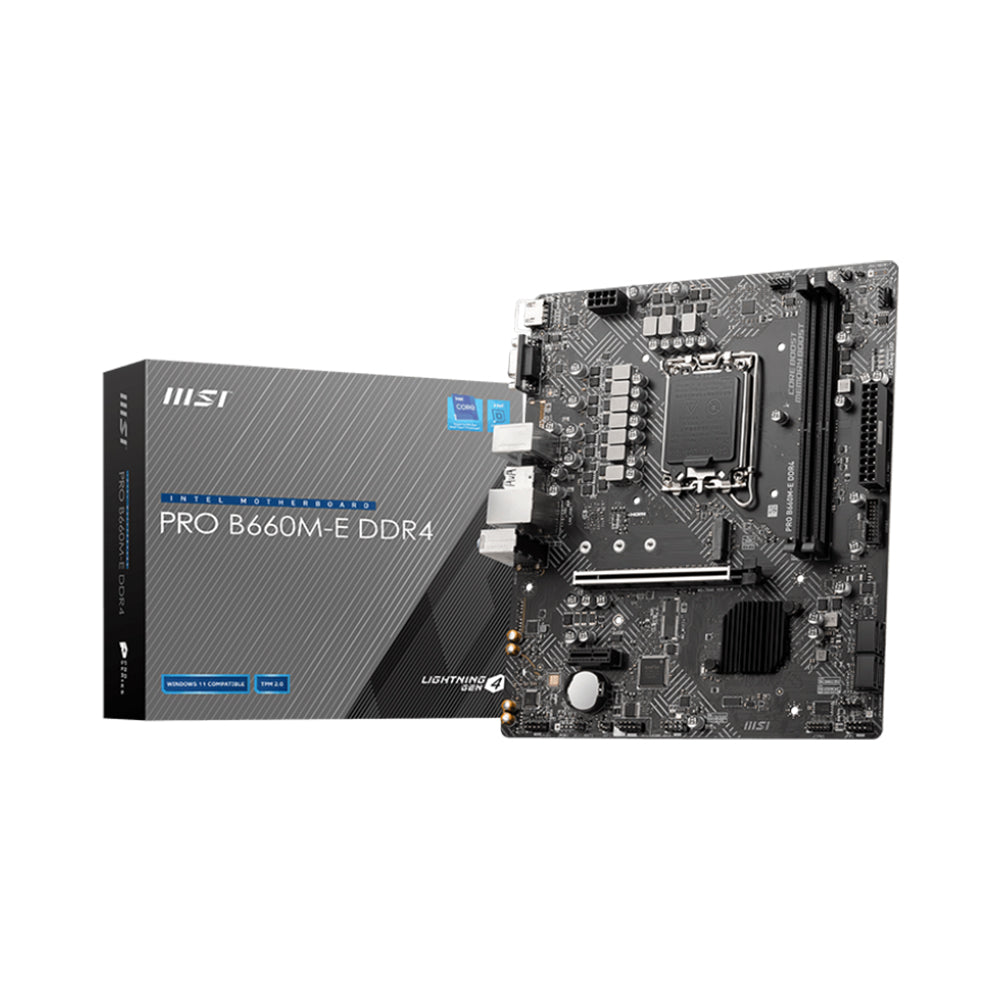

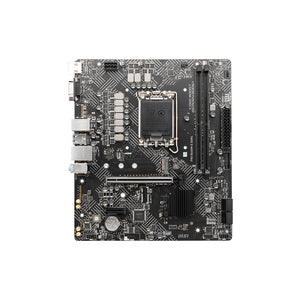

MSI PRO B660M-E DDR4 Motherboard - LGA 1700, DDR4, PCIe 4.0, Micro-ATX

The MSI PRO B660M-E DDR4 Motherboard is a versatile Micro-ATX motherboard designed for Intel's 12th and 13th Generation processors. Featuring the Intel B660 chipset, this motherboard is ideal for users looking to build a reliable system for both gaming and productivity.Key Features:

• Processor Compatibility:
  • Supports Intel® 12th and 13th Generation Core processors, Pentium Gold, and Celeron processors using the LGA 1700 socket.
• Chipset:
  • Intel B660 chipset for enhanced performance and features.
• Memory Support:
  • Slots: 2 x DDR4 DIMM slots
  • Maximum Capacity: Up to 64GB
  • Speed Support:
    • Supports DDR4 memory speeds up to 4600 MHz (OC) with various lower frequencies supported (3200 MHz JEDEC).
• Expansion Slots:
  • PCIe Slots:
    • 1 x PCIe 4.0 x16 slot (from CPU)
    • 1 x PCIe 3.0 x1 slot (from chipset).
• Storage Options:
  • M.2 Slot:
    • 1 x M.2 slot supporting PCIe Gen3 x4 and SATA for high-speed NVMe SSDs.
    • SATA Ports: 4 x SATA III (6Gb/s) ports for traditional storage solutions.
• Networking:
  • LAN Controller: Intel® I219V Gigabit LAN for reliable wired connectivity.
• Audio Features:
  • Realtek® ALC892/ALC897 Codec providing high-definition audio quality with support for up to 7.1-channel audio.

Advanced Features

• Core Boost Technology:
  • Combines premium layout and digital power design to support higher core counts and improve performance.
• Memory Boost Technology:
  • Delivers pure data signals for optimal performance, stability, and compatibility.
• Audio Boost Technology:
  • Provides studio-grade sound quality for an immersive audio experience.

Design and Build Quality

The PRO B660M-E features a compact Micro-ATX form factor, ensuring efficient heat dissipation while providing ample space for high-performance components. Its durable construction ensures stability and longevity in demanding environments.
