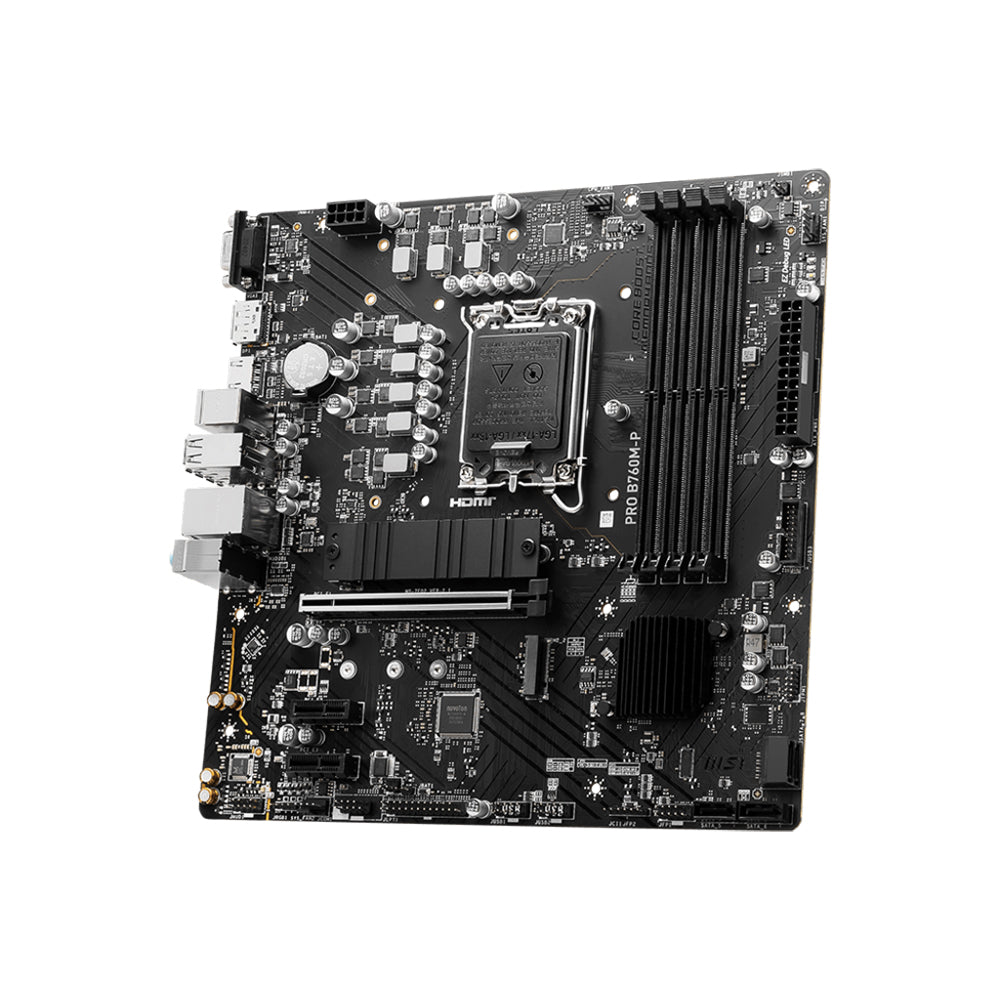

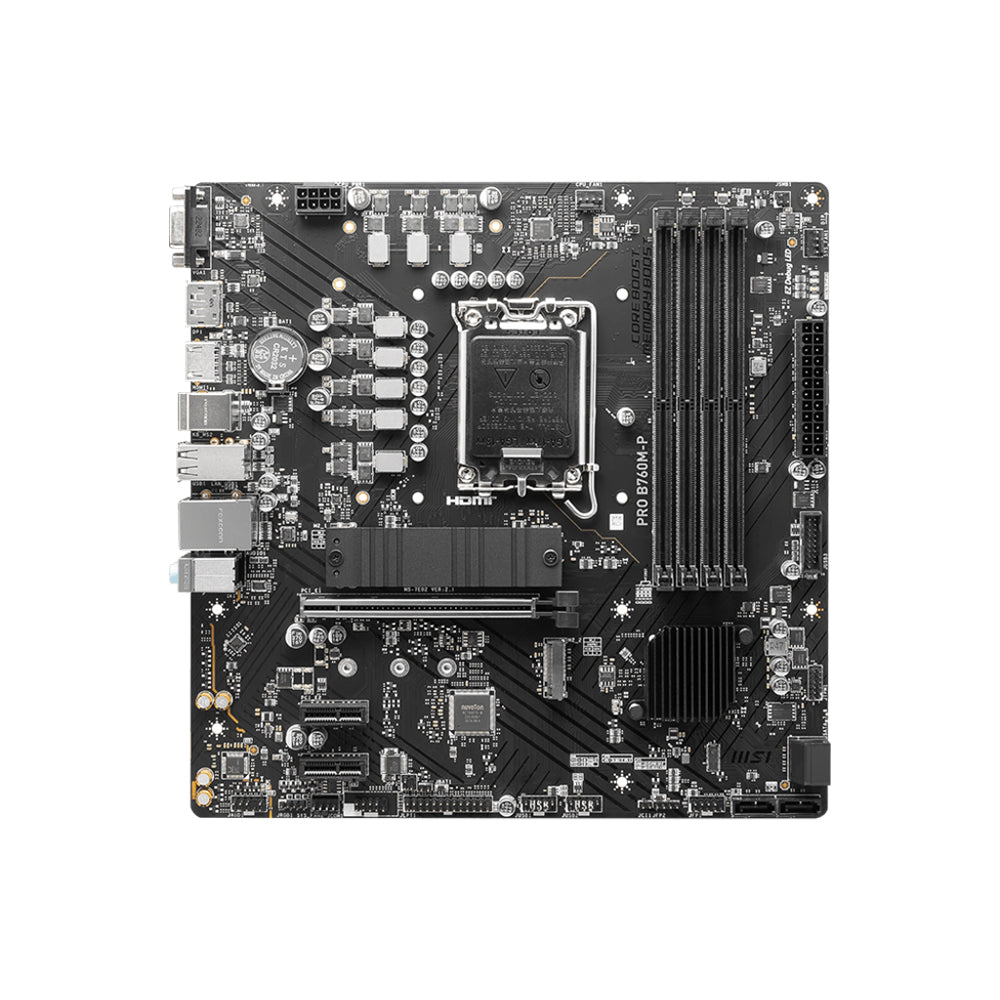

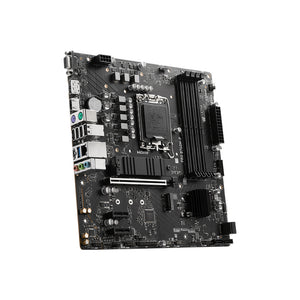

MSI PRO B760M-P DDR4 Motherboard - LGA 1700, DDR4, PCIe 4.0, Micro-ATX

The MSI PRO B760M-P DDR4 Motherboard is designed for users looking to build a powerful and efficient system with Intel's 12th and 13th Generation processors. This Micro-ATX motherboard features the Intel B760 chipset and offers a range of advanced features suitable for both gaming and productivity applications.Key Features:

• Processor Compatibility:
  • Supports Intel® Core™ 14th, 13th, and 12th Generation processors, as well as Pentium Gold and Celeron processors using the LGA 1700 socket.
• Chipset:
  • Intel B760 chipset for enhanced performance.
• Memory Support:
  • Slots: 4 x DDR4 DIMM slots
  • Maximum Capacity: Up to 128GB
  • Speed Support:
    • Supports DDR4 memory speeds up to 4800 MHz (OC), with various lower frequencies supported (3200 MHz JEDEC).
• Expansion Slots:
  • PCIe Slots:
    • 2 x PCIe 4.0 x16 slots (one from CPU, one from chipset)
    • 1 x PCIe 3.0 x1 slot.
• Storage Options:
  • M.2 Slots:
    • 2 x M.2 slots supporting PCIe Gen4 x4 and SATA for high-speed NVMe SSDs.
    • SATA Ports: 4 x SATA III (6Gb/s) ports for traditional storage solutions.
• Networking:
  • LAN Controller: Realtek® RTL8111H Gigabit LAN for reliable wired connectivity.
• Audio Features:
  • Realtek® ALC897 Codec providing high-definition audio quality with support for up to 7.1-channel audio.

Advanced Features

• Core Boost Technology:
  • Premium layout and digital power design that supports higher core counts for improved performance.
• Memory Boost Technology:
  • Delivers pure data signals for optimal performance, stability, and compatibility.
• M.2 Shield Frozr Technology:
  • Protects M.2 SSDs from thermal throttling, ensuring optimal performance during intensive tasks.
• Steel Armor Protection:
  • Reinforced PCIe slots protect graphics cards against bending and electromagnetic interference (EMI).

Design and Build Quality

The PRO B760M-P features a compact Micro-ATX form factor, ensuring efficient heat dissipation while providing ample space for high-performance components. Its durable construction ensures stability and longevity in demanding environments.
