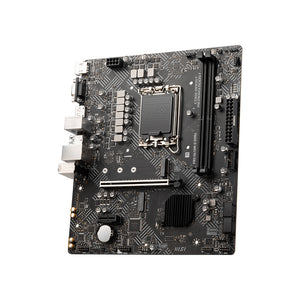

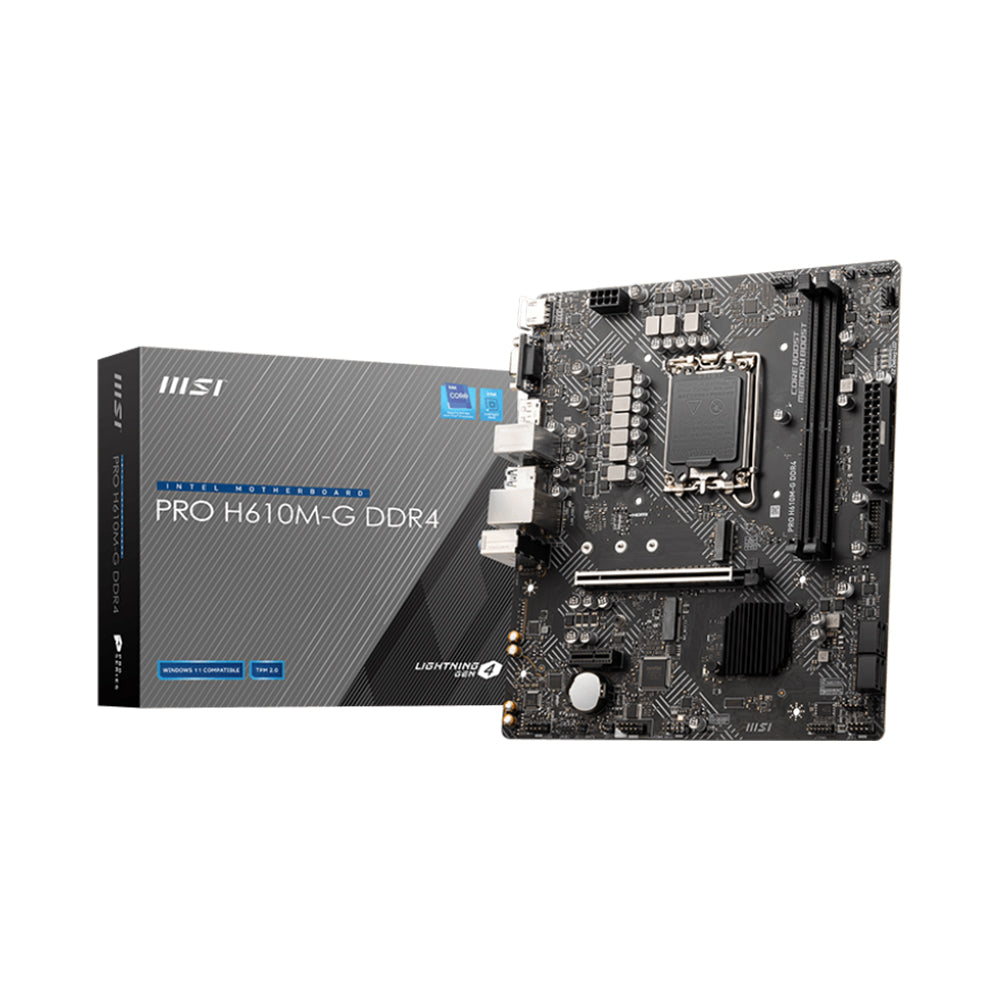

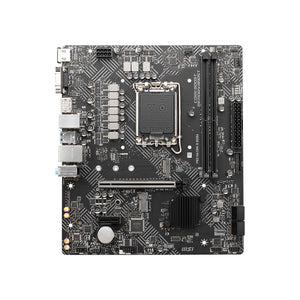

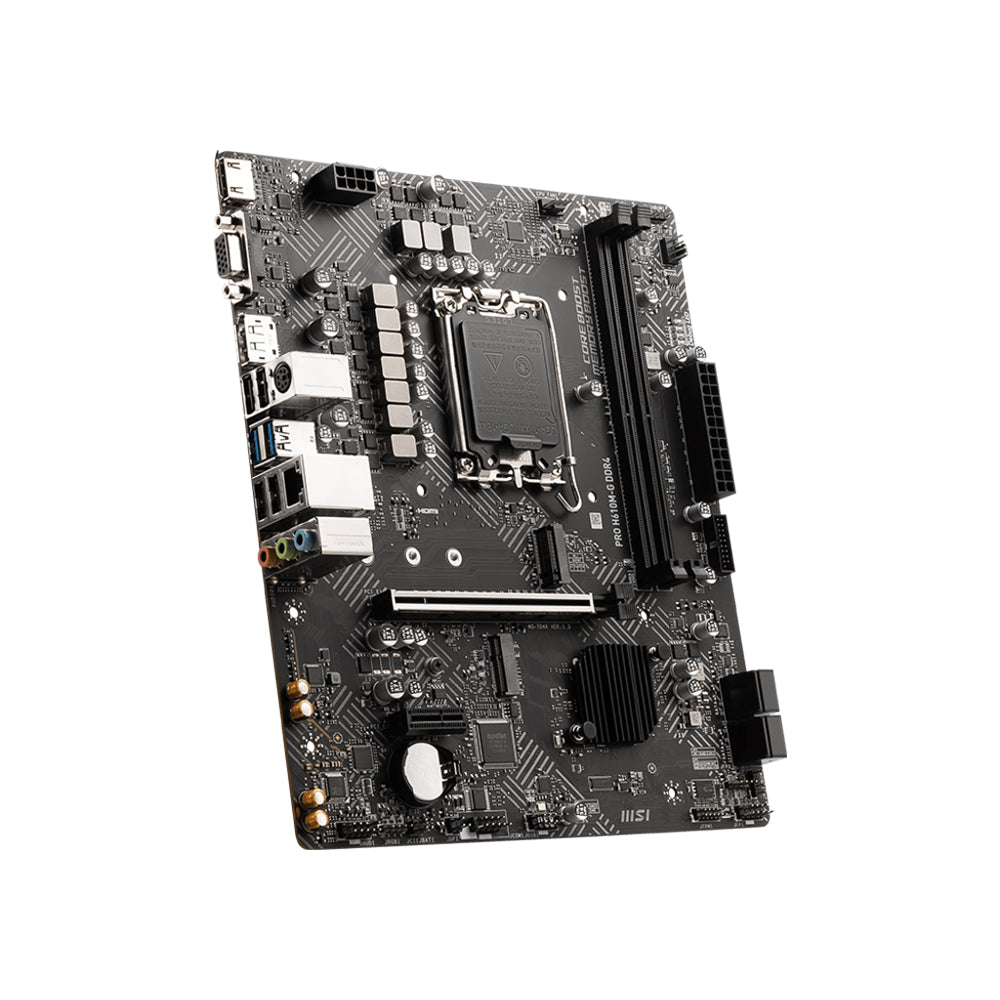

MSI PRO H610M-G DDR4 Motherboard - LGA 1700, DDR4, PCIe 4.0, Micro-ATX

The MSI PRO H610M-G DDR4 Motherboard is designed for users looking to build a reliable and efficient system with Intel's 12th and 13th Generation processors. This Micro-ATX motherboard features the Intel H610 chipset and supports a variety of connectivity options, making it suitable for both everyday computing and professional applications.Key Features:

• Processor Compatibility:
  • Supports Intel® Core™ 14th, 13th, and 12th Generation processors, as well as Pentium Gold and Celeron processors using the LGA 1700 socket.
• Chipset:
  • Intel H610 chipset for enhanced performance.
• Memory Support:
  • Slots: 2 x DDR4 DIMM slots
  • Maximum Capacity: Up to 64GB
  • Speed Support:
    • Supports DDR4 memory speeds up to 3200 MHz (OC), with additional support for lower frequencies (2133/2400/2666 MHz).
• Expansion Slots:
  • PCIe Slots:
    • 1 x PCIe 4.0 x16 slot (from CPU)
    • 1 x PCIe 3.0 x1 slot (from chipset).
• Storage Options:
  • M.2 Slot:
    • 1 x M.2 slot supporting PCIe Gen3 x4 for high-speed NVMe SSDs.
    • SATA Ports: 4 x SATA III (6Gb/s) ports for traditional storage solutions.
• Networking:
  • LAN Controller: Realtek® RTL8111H Gigabit LAN for reliable wired connectivity.
• Audio Features:
  • Realtek® ALC897 Codec providing high-definition audio quality with support for up to 7.1-channel audio.

Advanced Features

• Core Boost Technology:
  • Premium layout and digital power design that supports higher core counts for improved performance.
• Memory Boost Technology:
  • Advanced technology to deliver pure data signals for optimal performance, stability, and compatibility.
• Audio Boost Technology:
  • Provides studio-grade sound quality for an immersive audio experience.

Design and Build Quality

The PRO H610M-G features a compact Micro-ATX form factor, ensuring efficient heat dissipation while providing ample space for high-performance components. Its robust construction ensures stability and longevity in demanding environments.
