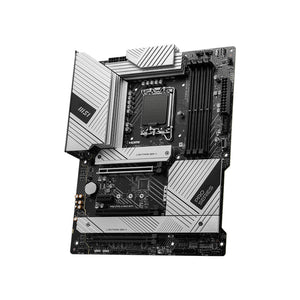

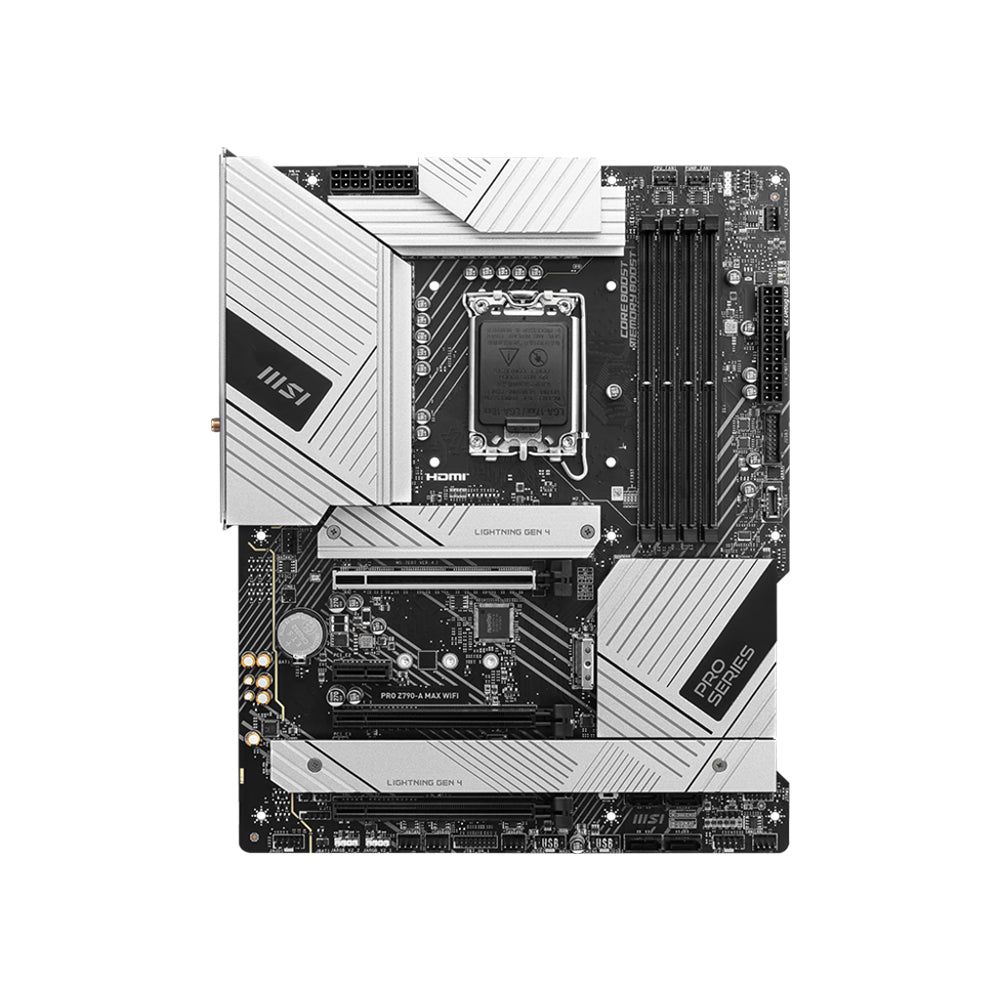

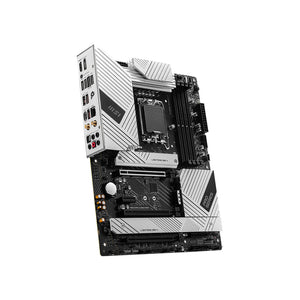

MSI PRO Z790-A MAX WIFI Motherboard - LGA 1700, DDR5, PCIe 5.0, ATX

The MSI PRO Z790-A MAX WIFI Motherboard is designed to support Intel's 12th, 13th, and upcoming 14th Generation processors, providing a robust platform for high-performance computing. This ATX motherboard features the advanced Intel Z790 chipset and is equipped with cutting-edge technologies tailored for gamers and professionals.Key Features:

• Processor Compatibility:
  • Supports Intel® Core™ 14th, 13th, and 12th Generation processors, as well as Intel® Pentium® Gold and Celeron® processors using the LGA 1700 socket.
• Chipset:
  • Intel Z790 chipset for enhanced performance.
• Memory Support:
  • Slots: 4 x DDR5 UDIMM slots
  • Maximum Capacity: Up to 192GB
  • Speed Support:
    • Supports DDR5 memory speeds up to 7800+ MHz (OC), with various lower frequencies supported (6400 MHz JEDEC and down).
• Expansion Slots:
  • PCIe Slots:
    • 1 x PCIe 5.0 x16 slot (from CPU)
    • 1 x PCIe 4.0 x16 slot
    • 2 x PCIe 3.0 x1 slots.
• Storage Options:
  • M.2 Slots:
    • 4 x M.2 slots supporting PCIe Gen4 for high-speed NVMe SSDs.
    • SATA Ports: 6 x SATA III (6Gb/s) ports for traditional storage solutions.
• Networking:
  • LAN Controller: Intel® I225-V providing 2.5Gbps LAN for reliable wired connectivity.
  • Wi-Fi: Integrated Wi-Fi 7 solution for fast wireless connections.
• Audio Features:
  • Realtek® ALC4080 Codec providing high-definition audio quality with support for up to 7.1-channel audio.

Advanced Features

• Enhanced Power Design:
  • Features a robust power delivery system with a 16+1+1 Duet Rail Power System and dual CPU power connectors for improved stability during heavy loads.
• Premium Thermal Solution:
  • Extended heatsink design with MOSFET thermal pads rated at 7W/mK and M.2 Shield Frozr technology to prevent thermal throttling.
• High Quality PCB Design:
  • Built with a six-layer PCB made from thickened copper for improved heat dissipation and reliability.

Design and Build Quality

The PRO Z790-A MAX WIFI features a sleek ATX form factor that ensures efficient heat dissipation while providing ample space for high-performance components. Its durable construction guarantees stability and longevity in demanding environments.
