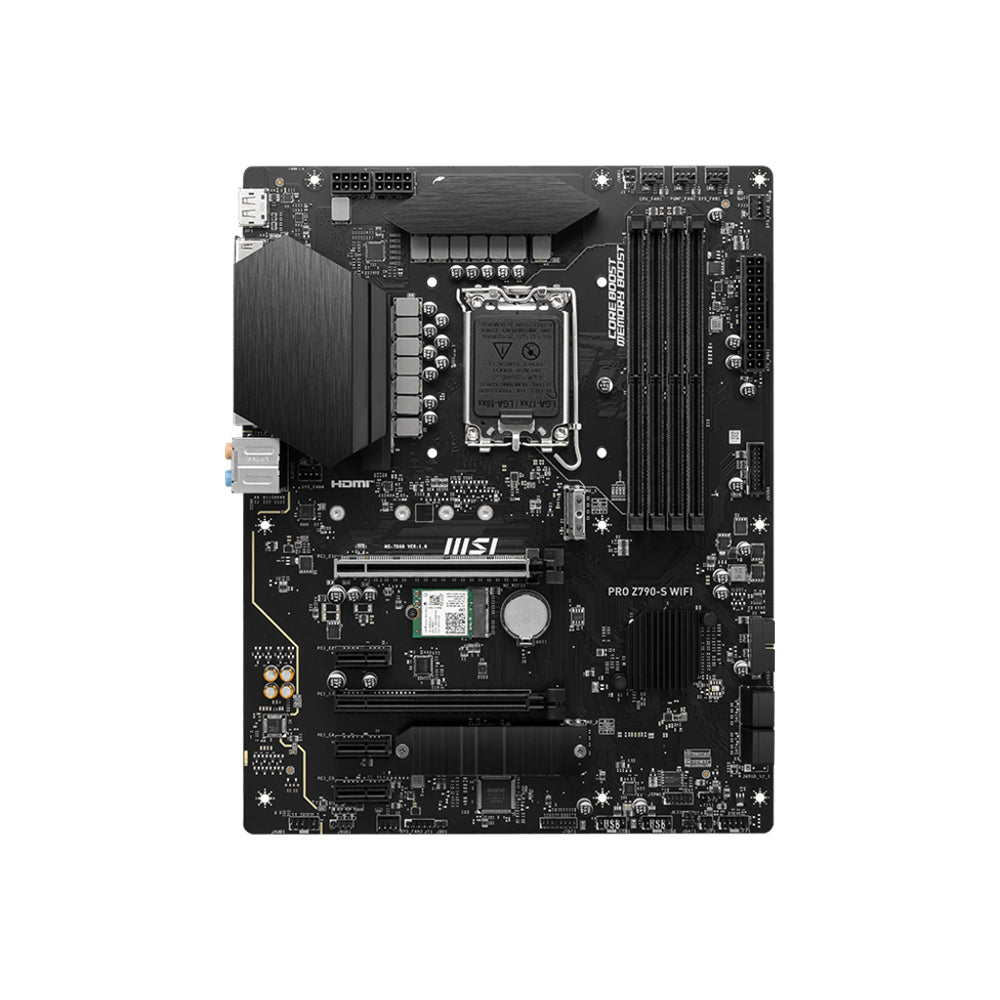

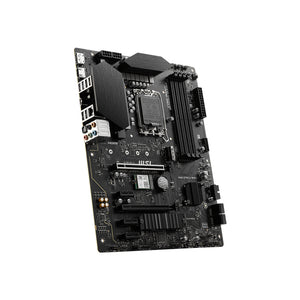

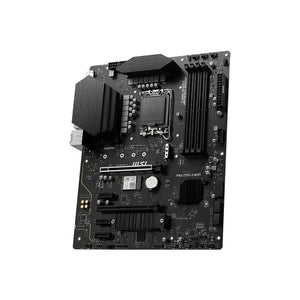

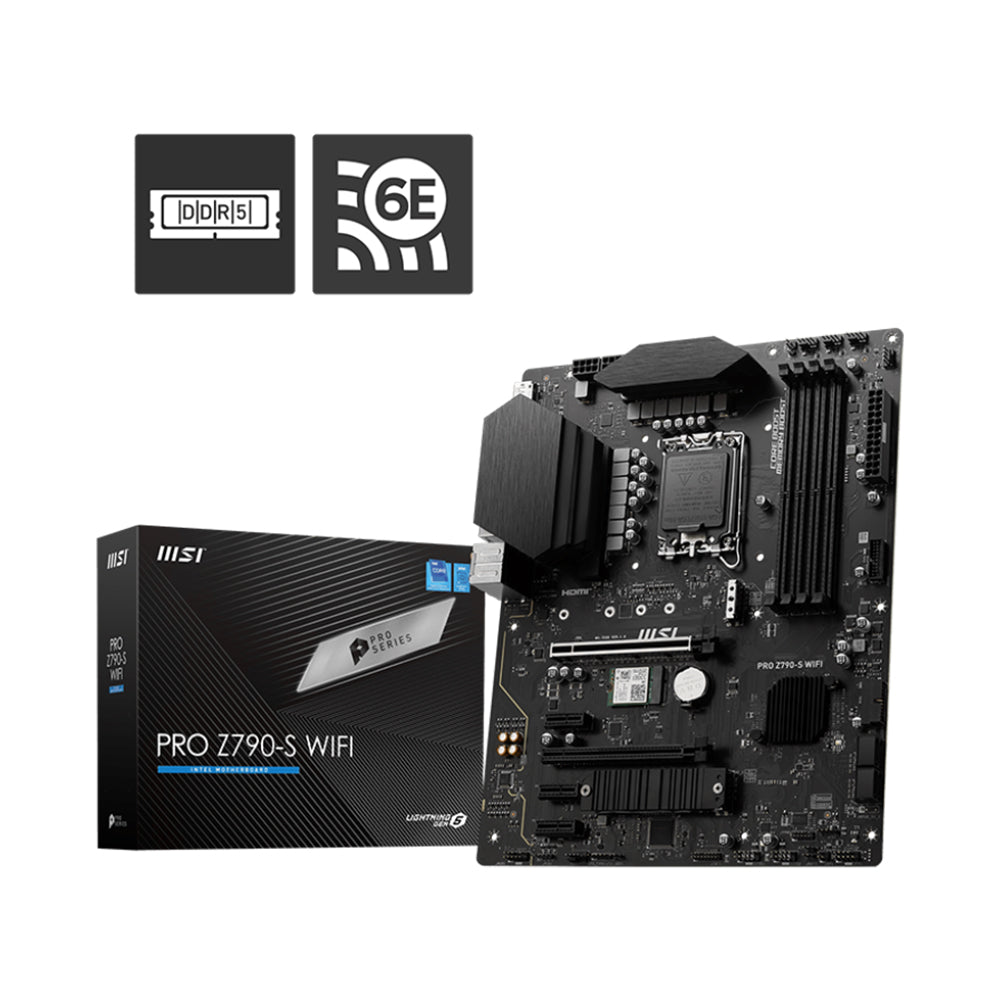

MSI PRO Z790-S WIFI Motherboard - LGA 1700, DDR5, PCIe 5.0, ATX

The MSI PRO Z790-S WIFI Motherboard is designed for high-performance computing, supporting Intel's 12th, 13th, and upcoming 14th Generation processors. This ATX motherboard features the Intel Z790 chipset and is equipped with advanced connectivity options, making it ideal for gamers and professionals.Key Features:

• Processor Compatibility:
  • Supports Intel® Core™ 14th, 13th, and 12th Generation processors, as well as Intel® Pentium® Gold and Celeron® processors using the LGA 1700 socket.
• Chipset:
  • Intel Z790 chipset for enhanced performance.
• Memory Support:
  • Slots: 4 x DDR5 DIMM slots
  • Maximum Capacity: Up to 192GB
  • Speed Support:
    • Supports DDR5 memory speeds up to 6600+ MHz (OC), with support for various lower frequencies (6400/6200/6000/5800/5600 MHz).
• Expansion Slots:
  • PCIe Slots:
    • 1 x PCIe 5.0 x16 slot (from CPU)
    • Additional PCIe slots for expansion.
• Storage Options:
  • M.2 Slots:
    • 2 x M.2 slots supporting PCIe Gen4 for high-speed NVMe SSDs.
    • SATA Ports: 4 x SATA III (6Gb/s) ports for traditional storage solutions.
• Networking:
  • LAN Controller: Realtek® RTL8125BG providing 2.5Gbps LAN for reliable wired connectivity.
  • Wi-Fi: Integrated Wi-Fi 6E solution with Bluetooth support for fast wireless connections.
• Audio Features:
  • Realtek® ALC897 Codec providing high-definition audio quality with support for up to 7.1-channel audio.

Advanced Features

• Enhanced Power Design:
  • Features a robust power delivery system with a 12+1+1 Duet Rail Power System and dual CPU power connectors for improved stability during heavy loads.
• Premium Thermal Solution:
  • Extended heatsink design with MOSFET thermal pads rated at 7W/mK and M.2 Shield Frozr technology to prevent thermal throttling during intensive workloads.
• High Quality PCB Design:
  • Built with a six-layer PCB made from thickened copper for improved heat dissipation and reliability.

Design and Build Quality

The PRO Z790-S WIFI features a sleek ATX form factor that ensures efficient heat dissipation while providing ample space for high-performance components. Its durable construction guarantees stability and longevity in demanding environments.
