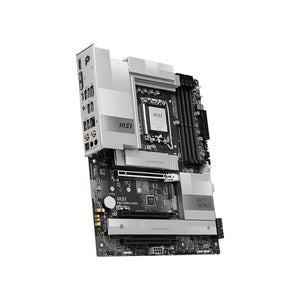

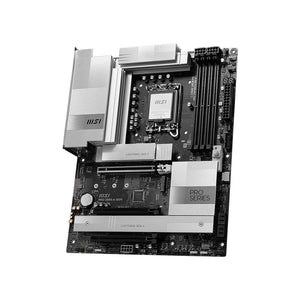

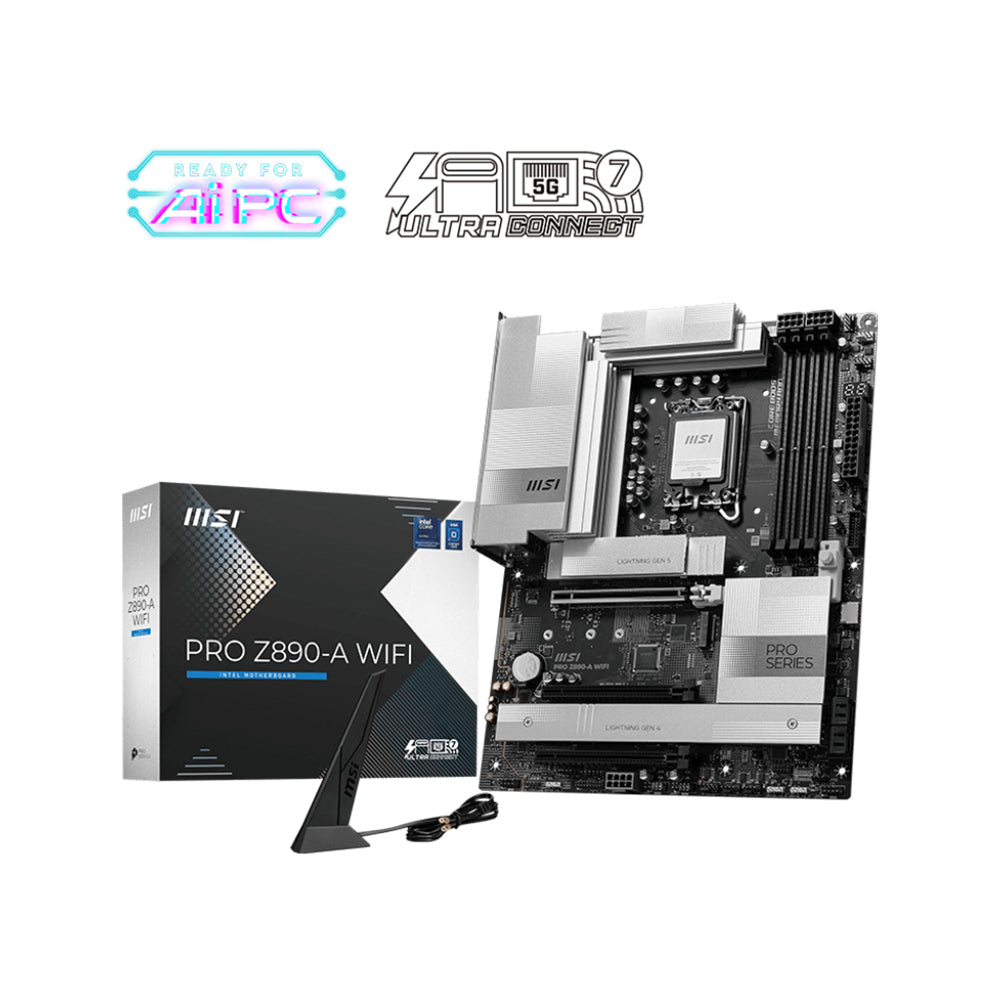

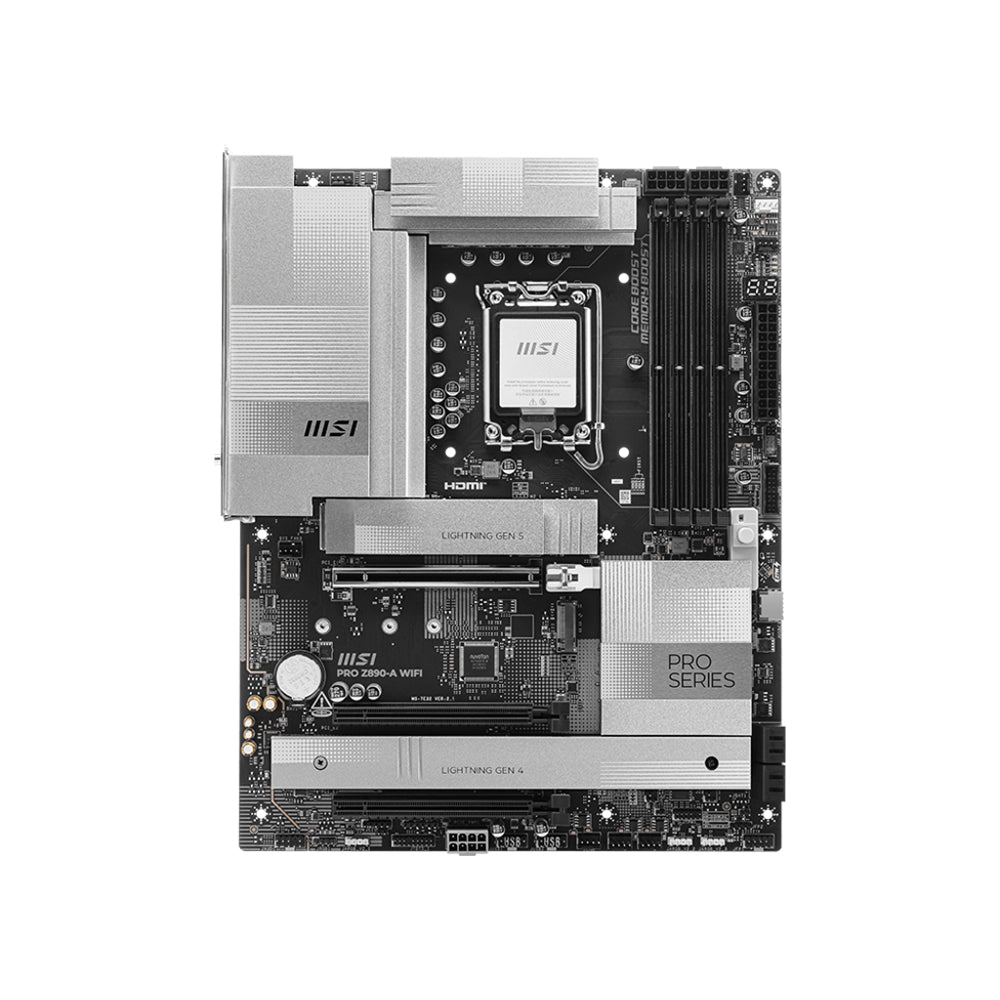

MSI PRO Z890-A WIFI Motherboard - LGA 1851, DDR5, PCIe 5.0, ATX

The MSI PRO Z890-A WIFI Motherboard is engineered for high-performance computing, supporting Intel's Core Ultra Processors (Series 2) with the LGA 1851 socket. This ATX motherboard features the advanced Intel Z890 chipset and is equipped with cutting-edge technologies designed for professionals and gamers alike.Key Features:

• Processor Compatibility:
  • Supports Intel® Core™ Ultra Processors (Series 2) using the LGA 1851 socket.
• Chipset:
  • Intel Z890 chipset for enhanced performance.
• Memory Support:
  • Slots: 4 x DDR5 UDIMM slots
  • Maximum Capacity: Up to 256GB
  • Speed Support:
    • Supports DDR5 memory speeds up to 9200+ MT/s (OC), with various lower frequencies supported (6400/6000/5800/5600 MHz).
• Expansion Slots:
  • PCIe Slots:
    • 3 x PCIe x16 slots (one PCIe 5.0 and two PCIe 4.0).
• Storage Options:
  • M.2 Slots:
    • 4 x M.2 slots supporting PCIe Gen5 and Gen4 for high-speed NVMe SSDs.
    • Supports RAID configurations for SATA storage devices.
• Networking:
  • LAN Controller: Realtek® RTL8126 providing 5Gbps LAN for reliable wired connectivity.
  • Wi-Fi: Integrated Intel® Wi-Fi 7 solution for fast wireless connections, supporting dual-band frequencies (2.4GHz / 5GHz / 6GHz).
• Audio Features:
  • Realtek® ALC1220P Codec providing high-definition audio quality with support for up to 7.1-channel audio.

Advanced Features

• Power Delivery System:
  • Features a robust 16+1+1+1 Duet Rail Power System with dual 8-pin CPU power connectors designed to handle heavy CPU loads efficiently.
• Premium Thermal Solution:
  • Extended heatsink design with high-efficiency thermal pads and EZ M.2 Shield Frozr technology to prevent thermal throttling during intensive workloads.
• EZ DIY Features:
  • Includes EZ PCIe Release, EZ M.2 Shield Frozr II, and EZ Antenna for easy installation and setup.

Design and Build Quality

The PRO Z890-A WIFI features a sleek ATX form factor that ensures efficient heat dissipation while providing ample space for high-performance components. Its durable construction guarantees stability and longevity in demanding environments.
