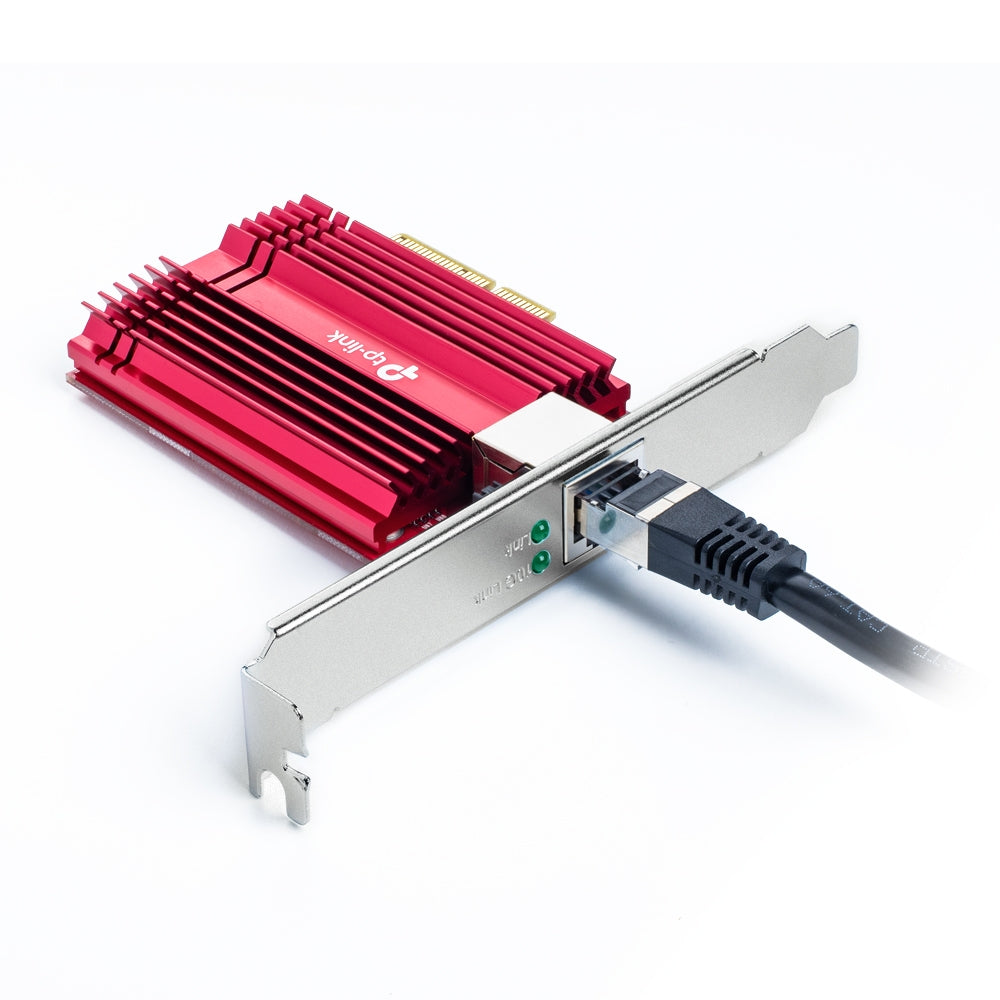

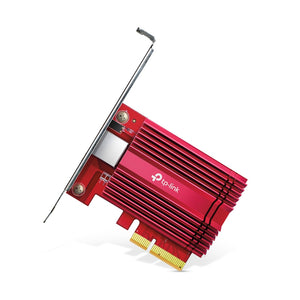

TP-Link Archer TX401 10G PCI Express Network Adapter

The TP-Link Archer TX401 is a high-performance 10G PCI Express Network Adapter designed to deliver lightning-fast data transfers and low-latency connections for desktop PCs. Ideal for gamers, content creators, and professionals requiring high-speed networking, this adapter supports the latest 10GBase-T technology.

Key Features:

• Blazing Fast Speeds:
  • Achieves data rates of up to 10 Gbps, making it ten times faster than standard Gigabit adapters, ensuring smooth data transmissions for both internet and local network tasks.
• Versatile Compatibility:
  • Backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between different speed connections (10G, 5G, 2.5G, 1G, and 100M).
• Included CAT6A Ethernet Cable:
  • Comes with a 1.5 m CAT6A Ethernet cable, rated for up to 10 Gbps, to maximize performance.
• Flexible Installation Options:

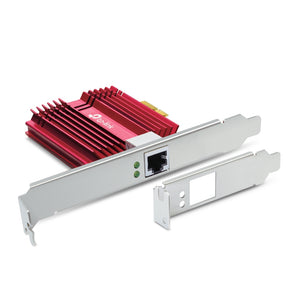

  • Includes both standard and low-profile brackets to fit various PC cases, allowing for easy installation in mini-tower or full-height systems.
• LED Indicators:
  • Equipped with LED indicators for link status at various speeds (10 Gbps, 5 Gbps, 2.5 Gbps, etc.).

Specifications:

• Standards and Protocols:
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an, IEEE802.3az, IEEE802.3x
• Interface:
  • PCI Express 3.0 x4
  • RJ45 Gigabit/Megabit Port
• Network Media:
  • Supports multiple standards: 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
• Data Rates:
  • Half-Duplex: Up to 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps
  • Full-Duplex: Up to 200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, and 20 Gbps
• Dimensions:
  • Approximately 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)

Additional Features:

• Operating Temperature:
  • Range: 0°C to 40°C (32°F to 104°F)
• Operating Humidity:
  • Range: 10% to 90%, non-condensing
• System Requirements:
  • Compatible with Windows (11/10/8.1/8/7), Windows Server (2019/2016/2012 R2), and Linux.

Package Contents:

• TP-Link Archer TX401 PCI Express Network Adapter
• Standard Bracket and Low-Profile Bracket
• Quick Installation Guide
• Resource CD
• CAT6A Ethernet Cable (1.5 m)
