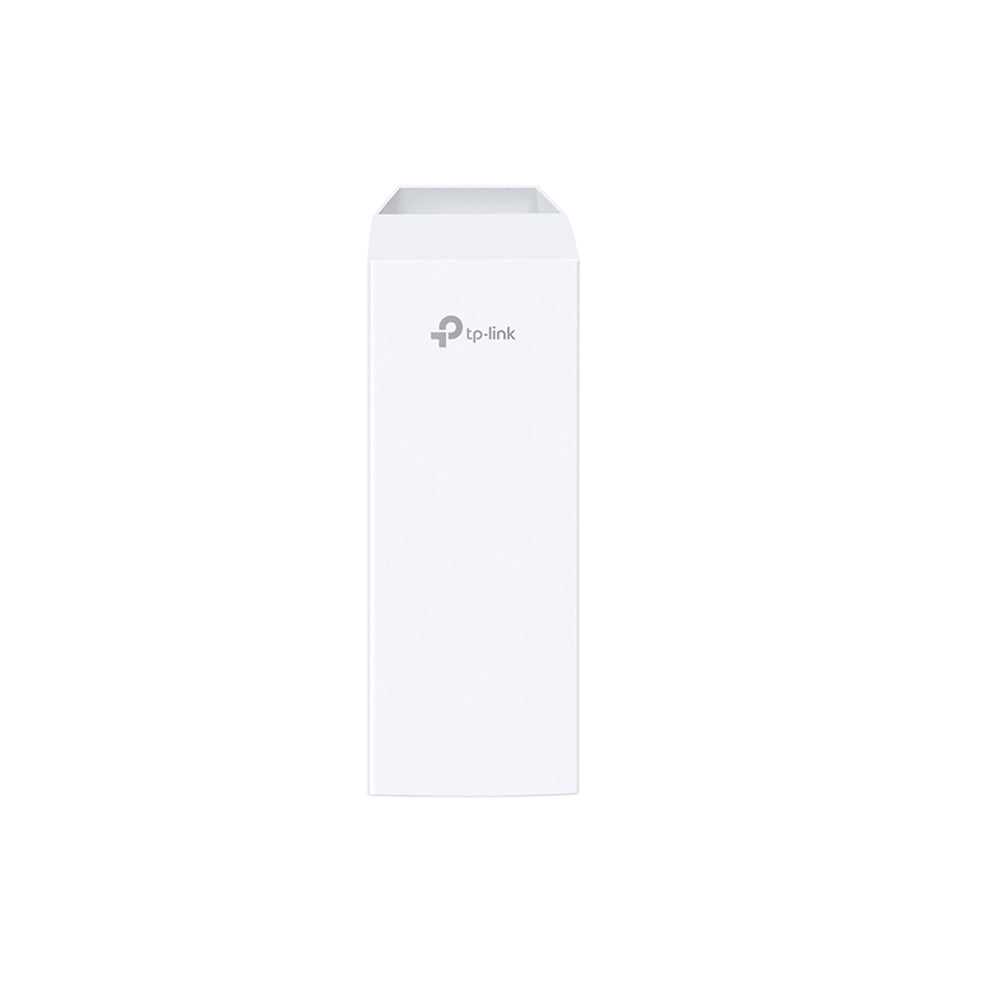

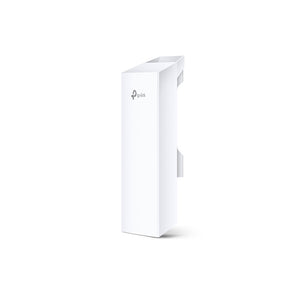

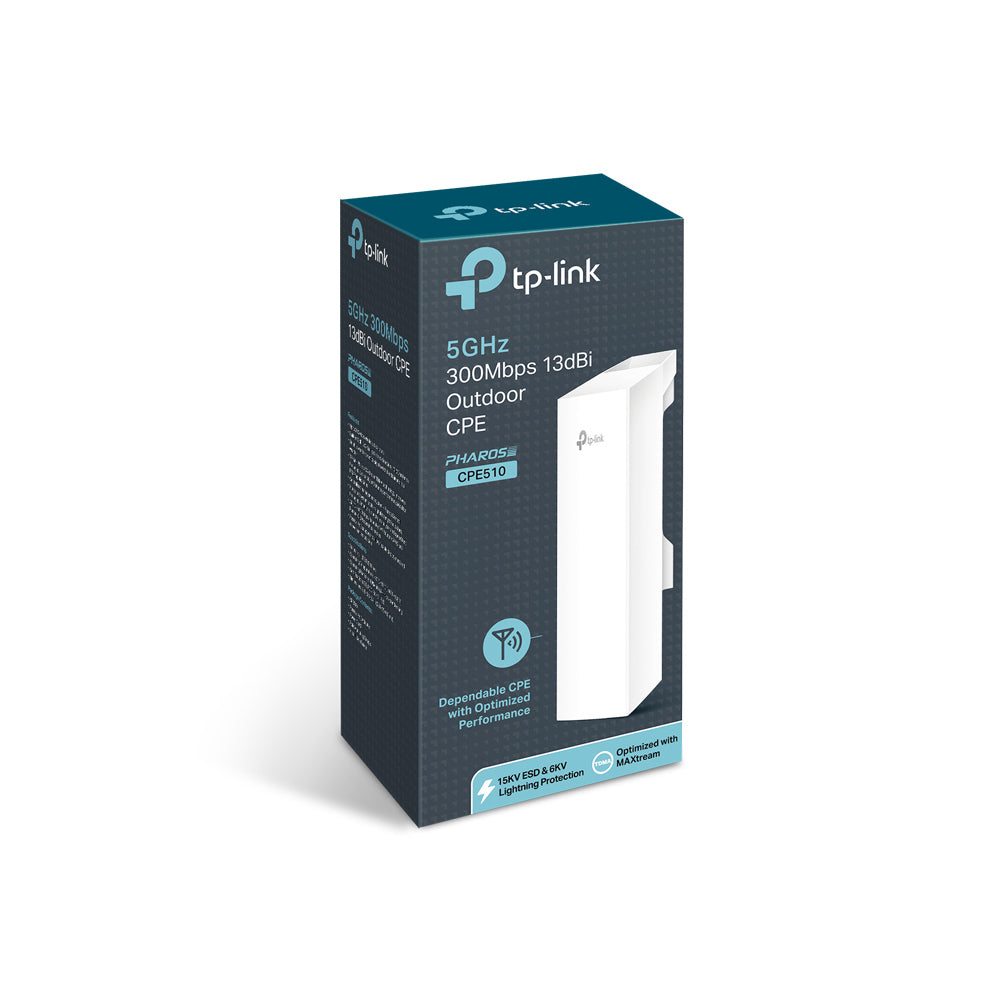

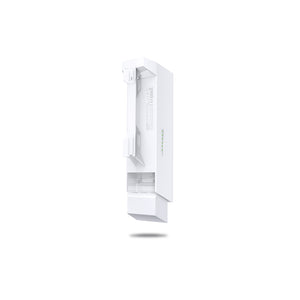

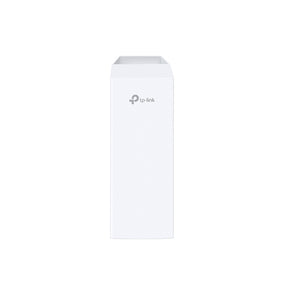

TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE

The TP-Link CPE510 is a high-performance 5GHz outdoor CPE (Customer Premises Equipment) designed for reliable long-range wireless networking. Ideal for point-to-point (PtP) and point-to-multipoint (PtMP) applications, the CPE510 provides a cost-effective solution for outdoor wireless coverage.

Key Features

• High-Gain Antenna:
  • Built-in 13dBi dual-polarized directional MIMO antenna enhances wireless performance and range, allowing for effective communication over long distances.
• Long-Range Wireless Transmission:
  • Capable of achieving distances of over 15 km under optimal conditions, making it suitable for outdoor setups.
• Adjustable Transmission Power:
  • Adjustable power settings from 0 to 27dBm, allowing for optimal coverage based on environmental conditions.
• TP-LINK Pharos MAXtream Technology:
  • Utilizes TDMA (Time-Division Multiple Access) technology to improve throughput and reduce latency in dense network environments, ideal for PtMP applications.
• Centralized Management System:
  • Compatible with TP-Link’s Pharos Control software, enabling easy management of multiple devices from a single interface, including device discovery, status monitoring, firmware upgrades, and network maintenance.
• Multiple Operation Modes:
  • Supports various modes including AP (Access Point), Client, Bridge, Repeater, AP Router, and WISP Client Router.

Technical Specifications

• Processor: Qualcomm Atheros 560MHz CPU
• Memory: 64MB DDR2 RAM, 8MB Flash
• Ports:

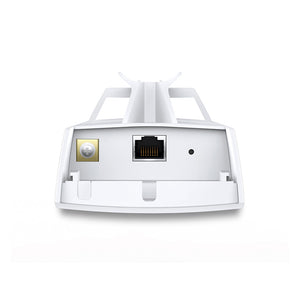

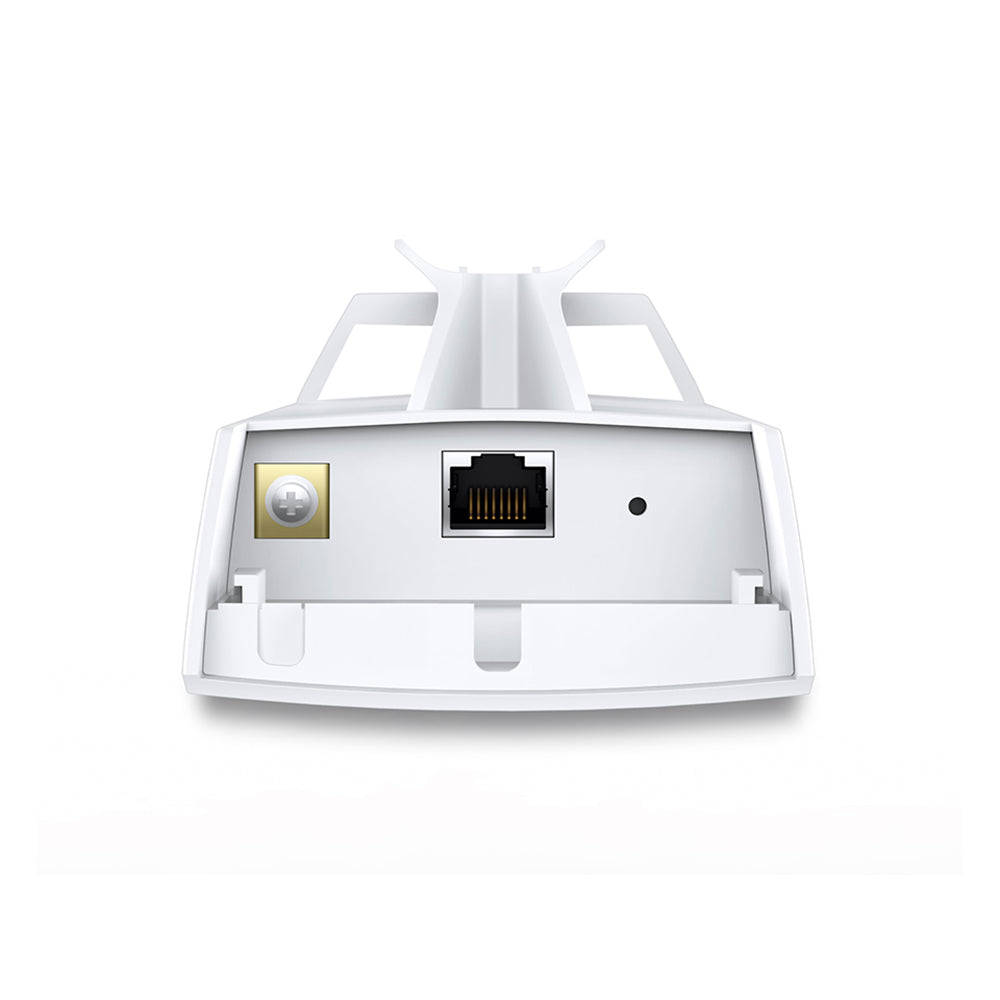

  • 1 x 10/100Mbps Shielded Ethernet Port (Passive PoE in)
  • 1 x Grounding Terminal
  • 1 x Reset Button
• Power Supply:
  • Passive PoE via LAN0 (+4,5 pins; -7,8 pins), Voltage range: 16-27VDC
• Power Consumption:
  • Maximum of 10.5 Watts
• Dimensions:
  • Approximately 224 x 79 x 60 mm (8.8 x 3.1 x 2.4 in)
• Operating Temperature:
  • Ranges from -30°C to +70°C (-22°F to +158°F), ensuring reliable performance in various climates.

Protection Features

• Lightning Protection:
  • Equipped with 6KV lightning protection and 15KV ESD protection to safeguard against electrical surges.
