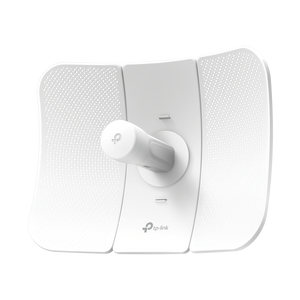

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE

The TP-Link CPE610 is a high-performance 5GHz outdoor CPE (Customer Premises Equipment) designed for long-range wireless networking applications. With its robust features and advanced technology, the CPE610 is ideal for point-to-point (PtP) and point-to-multipoint (PtMP) connections, making it suitable for various outdoor scenarios.

Key Features

• High-Gain Antenna:
  • Equipped with a 23dBi dual-polarized directional MIMO antenna and a dedicated metal reflector, the CPE610 provides excellent beam directivity, enhancing wireless performance and enabling long-distance communication of up to 30 km.
• Wireless Performance:
  • Supports wireless data rates of up to 300Mbps on the 5GHz band, ensuring fast and stable connections for various applications.
• TP-Link Pharos MAXtream Technology:
  • Utilizes TDMA (Time-Division Multiple Access) technology to improve throughput, capacity, and latency performance, making it ideal for high-density environments.
• Centralized Management:
  • Compatible with TP-Link’s Pharos Control software, allowing administrators to manage multiple devices from a single interface for easy monitoring and configuration.
• Durable Design:
  • The device features an IP65 weatherproof enclosure, providing protection against dust and rain. It also includes 15 kV ESD and 6 kV lightning protection to ensure reliable operation in harsh outdoor conditions.
• Passive PoE Support:
  • Supports Passive Power over Ethernet (PoE), allowing for flexible deployment and easier installation without the need for additional power sources.

Technical Specifications

• Processor: Qualcomm Atheros 560MHz CPU
• Memory: 64MB DDR2 RAM, 8MB Flash
• Ports:
  • 1 x 10/100Mbps Shielded Ethernet Port (LAN/PoE)
  • 1 x Reset Button
• Power Supply:
  • Passive PoE via LAN (+4,5 pins; -7,8 pins), Voltage range: 16-27VDC
• Power Consumption:
  • Maximum of 7.41 Watts
• Dimensions:
  • Approximately 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in)
• Operating Temperature:
  • Ranges from -30°C to +70°C (-22°F to +158°F)

Protection Features

• Lightning Protection:
  • Equipped with 6KV lightning protection and 15KV ESD protection to safeguard against electrical surges.
