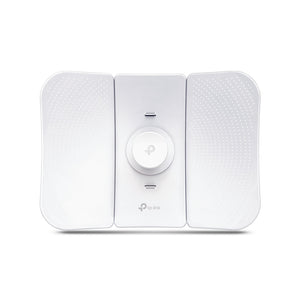

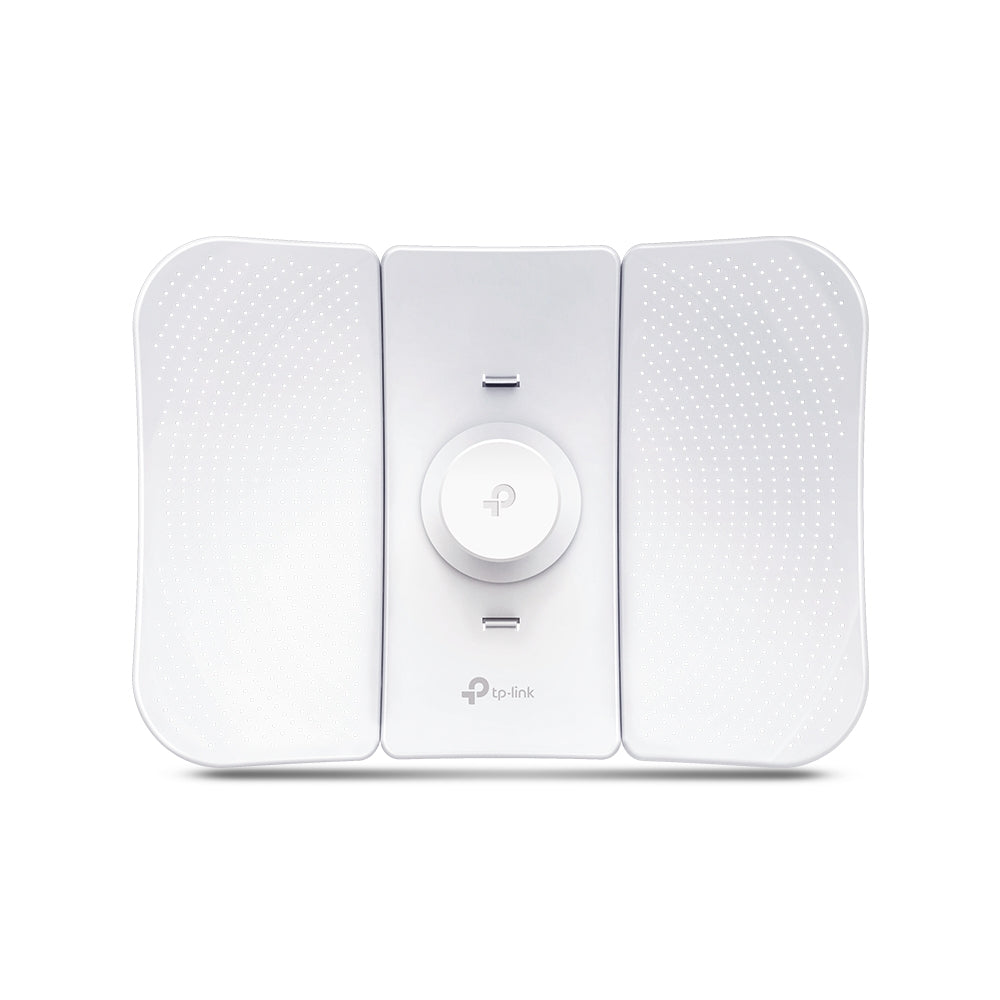

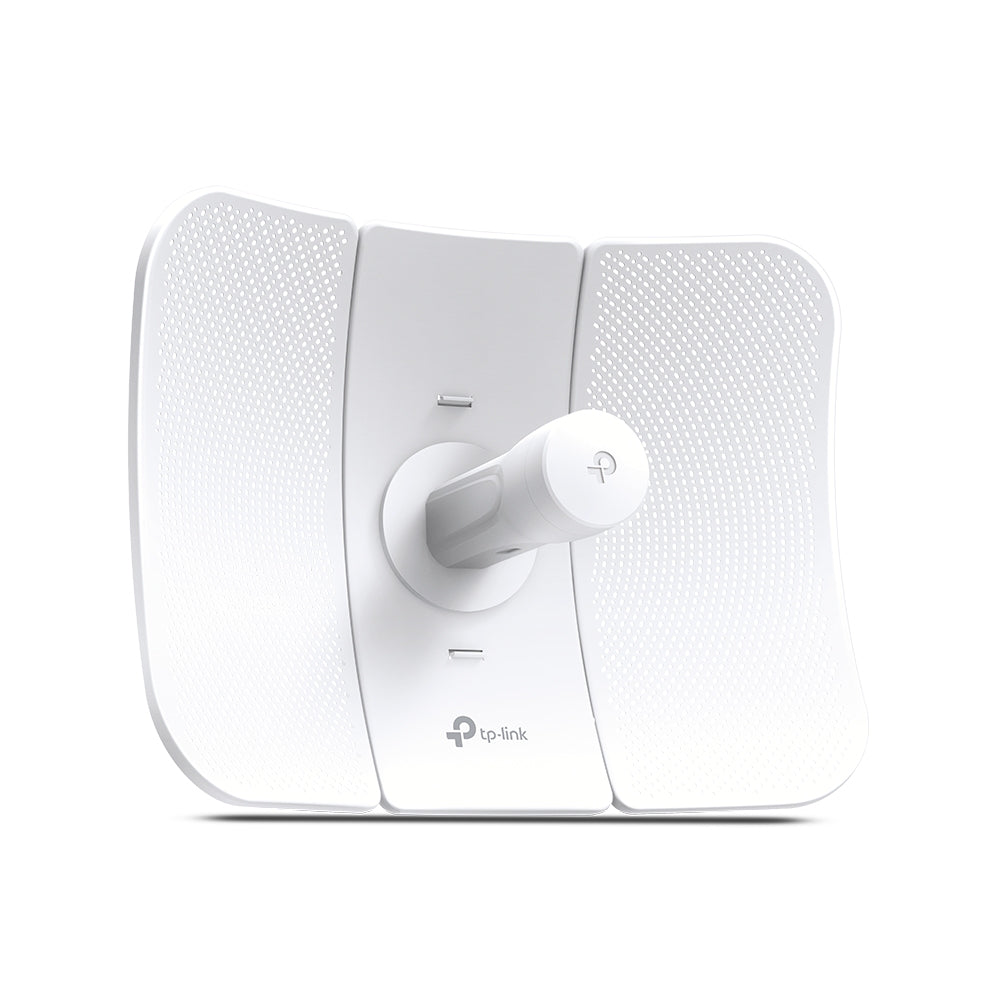

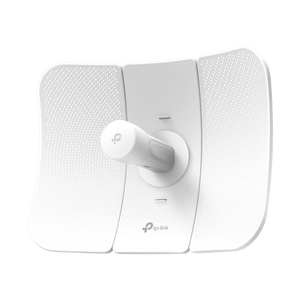

TP-Link CPE710 5GHz 867Mbps 23dBi Outdoor CPE

The TP-Link CPE710 is a high-performance 5GHz outdoor CPE (Customer Premises Equipment) designed for long-range wireless networking. With its advanced features and robust design, the CPE710 is ideal for point-to-point (PtP) and point-to-multipoint (PtMP) applications, providing reliable connectivity over significant distances.

Key Features

• High-Gain Antenna:
  • Equipped with a 23dBi dual-polarized directional Cassegrain antenna, the CPE710 delivers excellent beam directivity and improved latency, enabling long-distance wireless transmission of up to 30 km.
• Fast Wireless Speeds:
  • Supports wireless data rates of up to 867 Mbps using 802.11ac technology, significantly enhancing performance compared to previous standards.
• Selectable Bandwidth:
  • Offers selectable bandwidth options of 20/40/80 MHz, allowing users to optimize performance based on their specific networking needs.
• TP-Link Pharos MAXtream Technology:
  • Utilizes TDMA (Time-Division Multiple Access) technology to enhance throughput and reduce latency, making it suitable for high-density environments.
• Centralized Management:
  • Compatible with TP-Link’s Pharos Control software, enabling centralized management of multiple devices for easy monitoring, configuration, and firmware updates.
• Durable Design:
  • The CPE710 features an IP65 weatherproof enclosure, ensuring protection against dust and rain. It also includes 15 kV ESD protection and 6 kV lightning protection for reliable operation in harsh outdoor conditions.

Technical Specifications

• Processor: Qualcomm Atheros 750MHz CPU
• Memory: 128 MB DDR2 RAM, 16 MB Flash
• Ports:
  • 1 x 10/100/1000 Mbps Shielded Ethernet Port (LAN/PoE)
  • 1 x Reset Button
• Power Supply:
  • Passive PoE via LAN (+4,5 pins; -7,8 pins), Voltage range: 16-27V DC
• Power Consumption:
  • Maximum of 7.41 Watts
• Dimensions:
  • Approximately 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in)
• Operating Temperature:
  • Ranges from -30°C to +70°C (-22°F to +158°F)

Protection Features

• Lightning Protection:
  • Equipped with robust protection features including 6 kV lightning protection and 15 kV ESD protection to safeguard against electrical surges.
