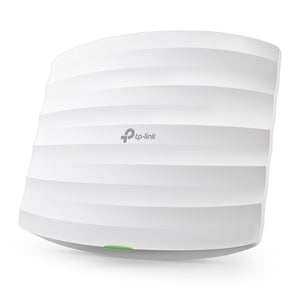

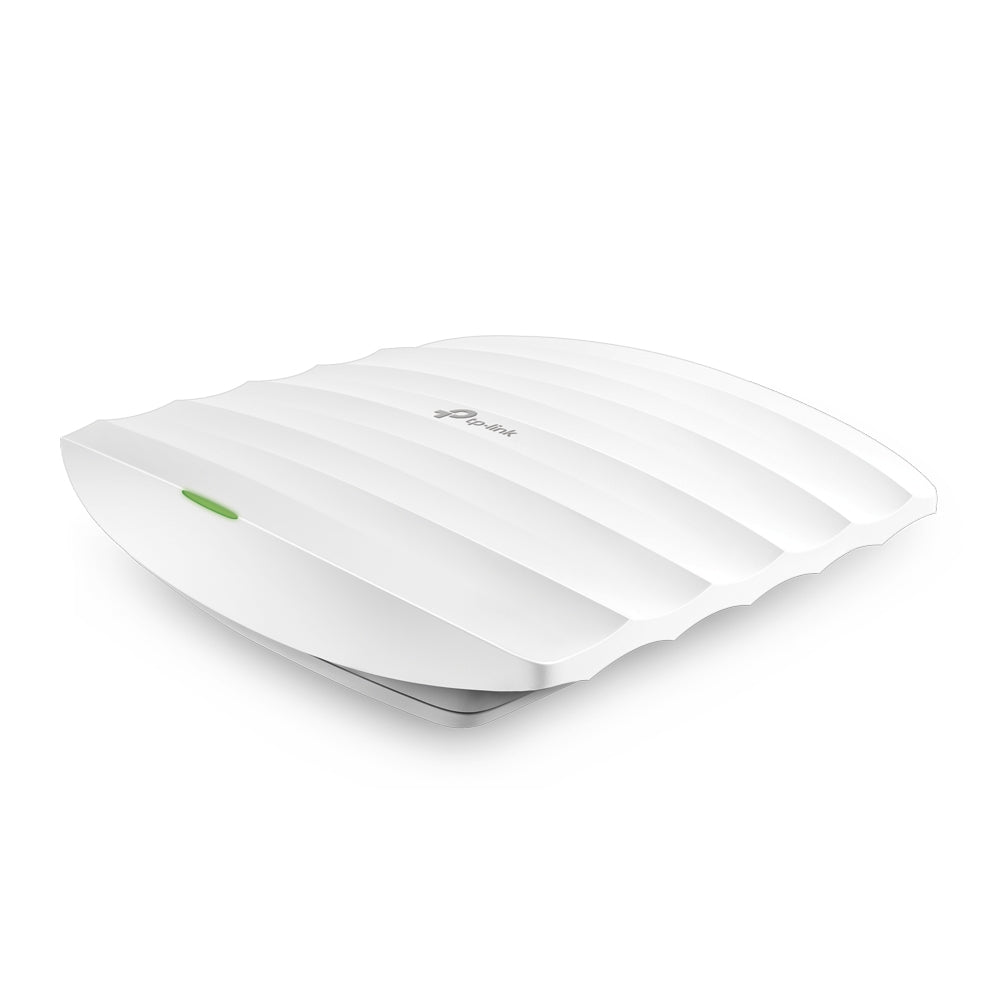

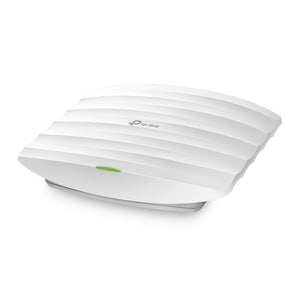

TP-Link EAP110 300Mbps Wireless N Outdoor Access Point

The TP-Link EAP110 is a versatile 300Mbps Wireless N outdoor access point designed to provide reliable Wi-Fi coverage in outdoor environments. With its robust features and weatherproof design, the EAP110 is ideal for extending wireless networks in parks, campuses, and other outdoor settings.

Key Features

• High-Speed Wireless Performance:
  • Supports wireless standards IEEE 802.11n/g/b, delivering speeds of up to 300Mbps on the 2.4GHz frequency band.
• Durable Weatherproof Design:
  • The IP65-rated enclosure ensures protection against dust and water, making it suitable for various outdoor applications.
• Dual Antennas:
  • Equipped with 2 x 5dBi external omni-directional antennas, providing enhanced coverage and signal strength.
• Power over Ethernet (PoE):
  • Supports 24V Passive PoE, allowing for flexible installation without the need for additional power sources. The device can be powered via Ethernet cable up to 100 meters away.
• Multiple SSIDs and VLAN Support:
  • Allows for the creation of up to 8 SSIDs, enabling network segmentation for different user groups or purposes. It also supports VLAN tagging for enhanced network management.
• Advanced Wireless Security:
  • Features multiple security protocols including WPA/WPA2, MAC address filtering, and rogue AP detection to ensure secure wireless access.

Technical Specifications

• Model: TP-Link EAP110
• Wireless Standards: IEEE 802.11n/g/b
• Frequency: 2.4GHz
• Signal Rate:
  • Up to 300Mbps (dynamic) for 802.11n
  • Up to 54Mbps (dynamic) for 802.11g
  • Up to 11Mbps (dynamic) for 802.11b
• Transmit Power:
  • CE: ≤20dBm (EIRP)
  • FCC: ≤22dBm
• Interface:

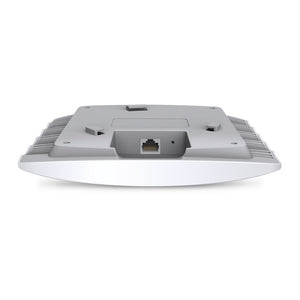

  • 1 x Fast Ethernet (RJ-45) port (supports Passive PoE)
• Power Supply:
  • Passive PoE (+4,5 pins; -7,8 pins), PoE adapter included
• Power Consumption:
  • Maximum of 3.12 Watts
• Dimensions:
  • Approximately 209 x 95 x 42.6 mm (8.2 x 3.7 x 1.7 in)

Management Features

• Supports centralized management through TP-Link's Omada app, allowing for easy configuration and monitoring of multiple access points.
