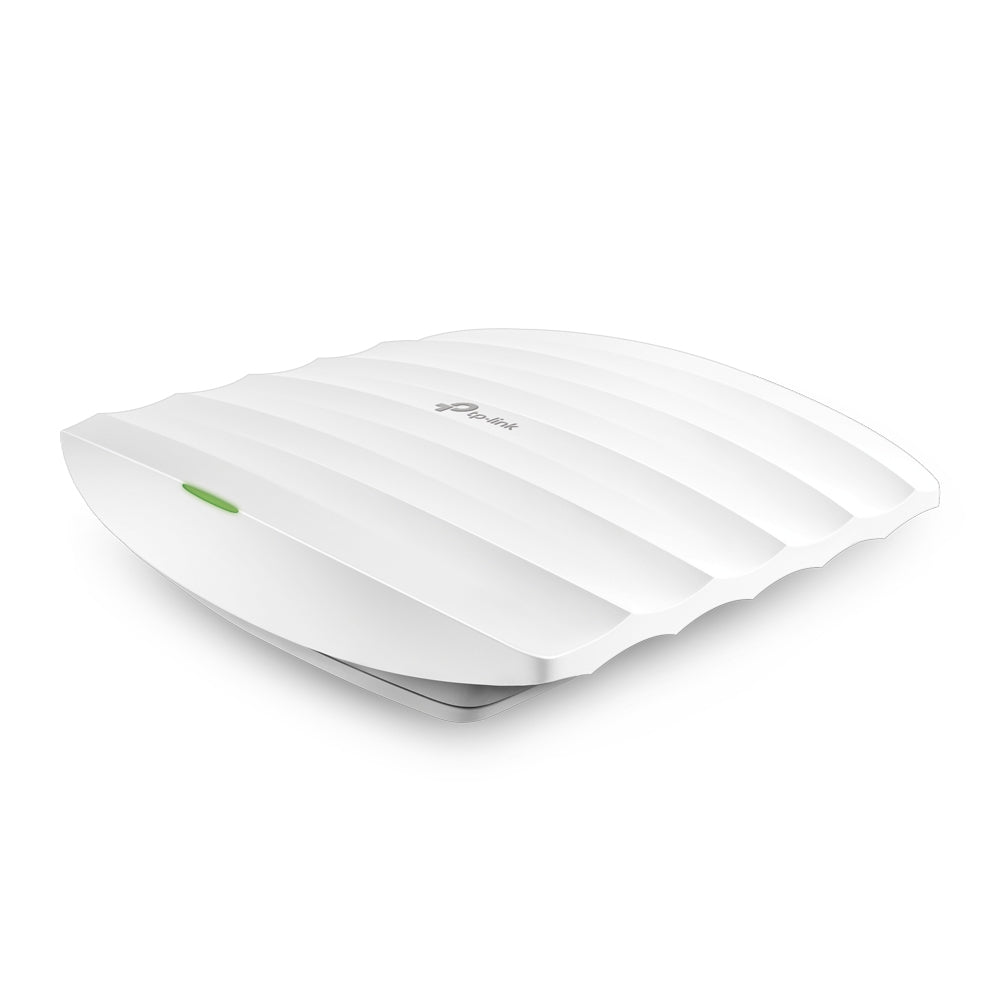

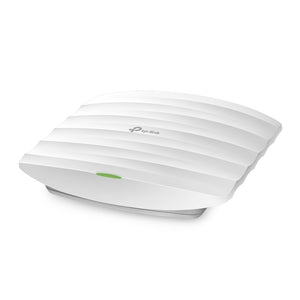

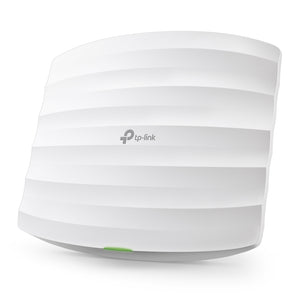

TP-Link EAP115 300Mbps Wireless N Ceiling Mount Access Point

The TP-Link EAP115 is a versatile 300Mbps Wireless N ceiling mount access point designed to provide reliable Wi-Fi coverage in various indoor environments such as offices, schools, and retail spaces. With its robust features and easy management options, the EAP115 is ideal for creating scalable and secure wireless networks.

Key Features

• High-Speed Wireless Performance:
  • Supports wireless standards IEEE 802.11n/g/b, delivering speeds of up to 300Mbps on the 2.4GHz frequency band, ensuring fast and stable connections.
• Multiple SSIDs:
  • Allows the creation of up to 16 SSIDs, enabling network segmentation for different user groups or purposes.
• Power over Ethernet (PoE) Support:
  • Compatible with IEEE 802.3af PoE, allowing for flexible installation without the need for additional power sources. The device can be powered via Ethernet cable, simplifying deployment.
• Advanced Wireless Security:
  • Features multiple security protocols including WPA/WPA2, MAC address filtering, and rogue AP detection to ensure secure wireless access.
• Centralized Management:
  • Compatible with TP-Link's Omada Controller software, enabling centralized management of multiple access points for easy monitoring and configuration.
• Durable Design:

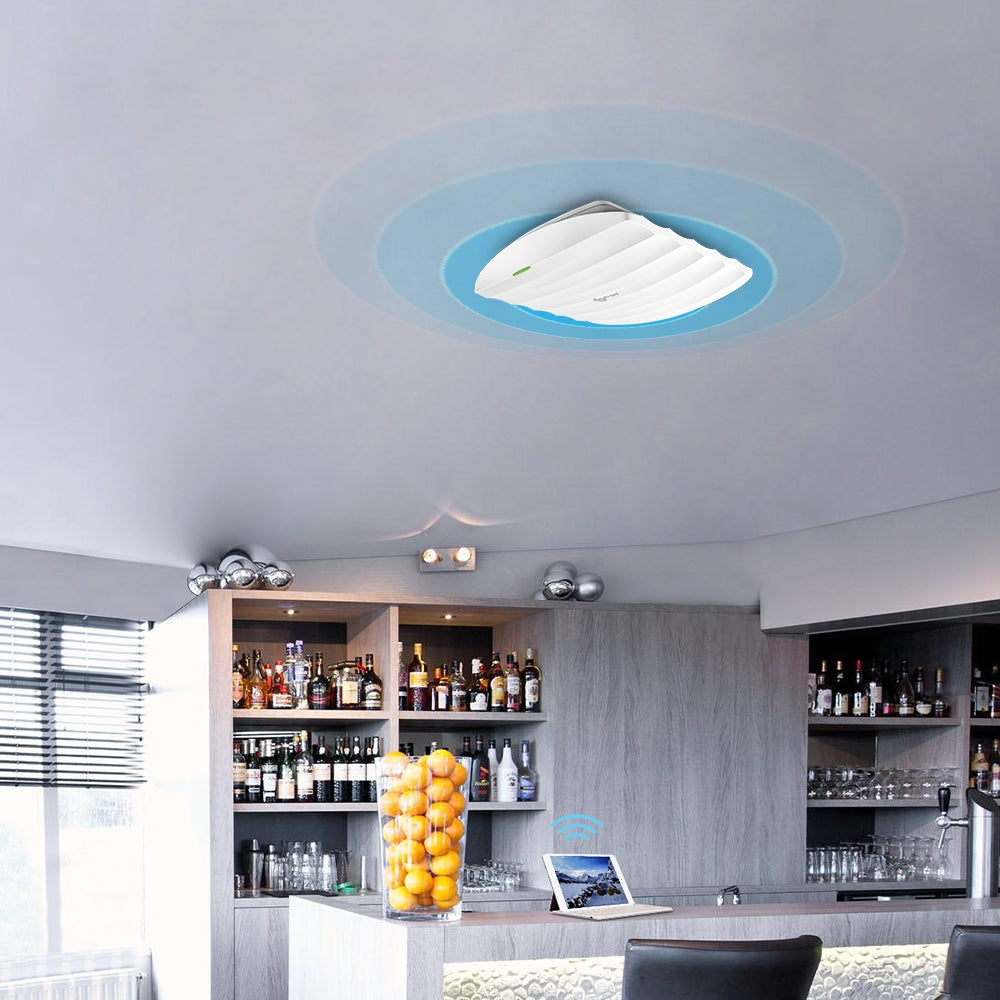

  • Designed for ceiling or wall mounting, making it suitable for various installation scenarios. Mounting kits are included for easy setup.

Technical Specifications

• Model: TP-Link EAP115
• Wireless Standards: IEEE 802.11n/g/b
• Frequency: 2.4GHz
• Signal Rate:
  • Up to 300Mbps (dynamic) for 802.11n
  • Up to 54Mbps (dynamic) for 802.11g
  • Up to 11Mbps (dynamic) for 802.11b
• Transmit Power:
  • CE: <20dBm; FCC: <26dBm
• Ports:
  • 1 x Fast Ethernet (RJ-45) port (supports PoE)
• Power Supply:
  • PoE or external power supply (9VDC / 0.6A)
• Power Consumption:
  • Maximum of 5W
• Dimensions:
  • Approximately 189.4 x 172.3 x 29.5 mm (7.5 x 6.8 x 1.2 in)

Performance Features

• Coverage Area:
  • Suitable for coverage of approximately 60 m² (650 ft²).
• Concurrent Clients:
  • Supports over 100 concurrent clients, making it ideal for high-density environments.

Management Features

• Web-based management interface supports HTTP/HTTPS, SNMP v1/v2c, and L3 management capabilities.
