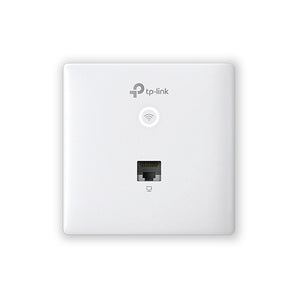

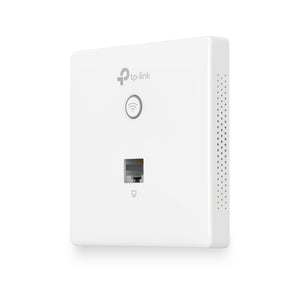

TP-Link EAP230-Wall AC1200 Wireless MU-MIMO Wall Plate Access Point

The TP-Link EAP230-Wall is an advanced AC1200 dual-band wall plate access point designed to provide high-speed Wi-Fi coverage in indoor environments such as hotels, offices, and dormitories. Its compact design allows for seamless integration into wall junction boxes, ensuring a clean and unobtrusive installation.

Key Features

• High-Speed Dual-Band Performance:
  • Supports simultaneous dual-band speeds of up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, totaling up to 1,167 Mbps with MU-MIMO technology for efficient multi-user performance.
• Wall Plate Design:

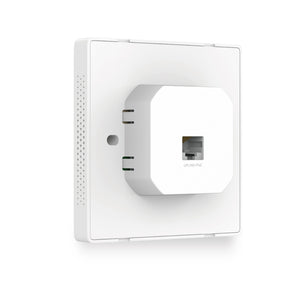

  • The sleek design fits into standard wall junction boxes (86 mm), making it ideal for installations where aesthetics are important.
• Power over Ethernet (PoE) Support:
  • Compatible with 802.3af/802.3at PoE, allowing for easy installation by powering the device through the Ethernet cable, eliminating the need for additional power outlets.
• Multiple SSIDs and VLAN Support:
  • Allows for the creation of up to 16 SSIDs (8 per band), facilitating network segmentation for different user groups or purposes. It also supports VLAN tagging for enhanced network management.
• Advanced Security Features:
  • Equipped with WPA/WPA2 encryption, MAC address filtering, and rogue AP detection to ensure secure wireless access.
• Centralized Management:
  • Compatible with TP-Link's Omada Controller software, enabling centralized management of multiple access points for easy monitoring and configuration.

Technical Specifications

• Model: TP-Link EAP230-Wall
• Wireless Standards: IEEE 802.11n/g/b/ac
• Frequency:
  • 2.4GHz: Up to 300Mbps
  • 5GHz: Up to 867Mbps
• Antenna Configuration:
  • 2 x 4dBi antennas for 2.4GHz
  • 2 x 3.6dBi antennas for 5GHz
• Ports:
  • 1 x Gigabit Ethernet port (uplink)
  • 1 x Gigabit Ethernet port (downlink)
• Power Supply:
  • Passive PoE or external power supply (9VDC / 0.6A)
• Power Consumption:
  • Maximum of 7W
• Dimensions:
  • Approximately 86.8 x 86.8 x 30.2 mm (3.4 x 3.4 x 1.2 in)

Performance Features

• Wireless Client Capacity:
  • Supports over 200 concurrent clients, making it suitable for high-density environments.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0–40°C (32–104°F)
• Storage Temperature:
  • Ranges from -40–70°C (-40–158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
