TP-Link EAP235-Wall AC1200 Wireless MU-MIMO Wall Plate Access Point

The TP-Link EAP235-Wall is a high-performance AC1200 dual-band wall plate access point designed to deliver seamless Wi-Fi coverage in indoor environments such as hotels, offices, and dormitories. Its sleek and compact design allows for easy installation into standard wall junction boxes, providing a discreet yet powerful networking solution.

Key Features

• High-Speed Dual-Band Performance:
  • Supports simultaneous dual-band speeds of up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, totaling up to 1,167 Mbps for efficient multi-user performance.
• MU-MIMO Technology:
  • Utilizes 802.11ac Wave 2 MU-MIMO technology, allowing the access point to communicate with multiple clients simultaneously, optimizing network performance in high-density environments.
• Wall Plate Design:
  • The ultra-slim design fits into standard wall junction boxes (86 mm), making it ideal for unobtrusive installations in various settings.
• Power over Ethernet (PoE) Support:
  • Compatible with 802.3af/802.3at PoE, enabling easy installation by powering the device through the Ethernet cable without needing additional wiring.

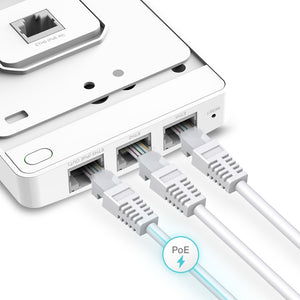

• Multiple Gigabit Ethernet Ports:
  • Equipped with four Gigabit Ethernet ports (1 uplink + 3 downlink), one of which supports PoE pass-through, allowing for direct connections to devices like IP phones and computers.

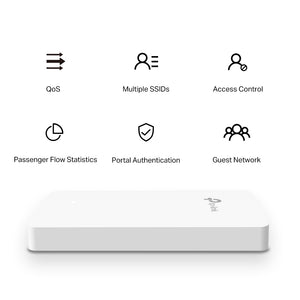

• Centralized Management:
  • Compatible with TP-Link's Omada Controller software, enabling centralized management of multiple access points for easy monitoring and configuration.

Technical Specifications

• Model: TP-Link EAP235-Wall
• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Frequency:
  • 2.4GHz: Up to 300Mbps
  • 5GHz: Up to 867Mbps
• Antenna Configuration:
  • 2 x 4dBi antennas for both the 2.4GHz and 5GHz bands.
• Ports:
  • Uplink: 1 x Gigabit Ethernet port (10/100/1000 Mbps)
  • Downlink: 3 x Gigabit Ethernet ports (10/100/1000 Mbps; one port supports PoE OUT)
• Power Supply:
  • Passive PoE or external power supply (9VDC / 0.6A)
• Power Consumption:
  • Maximum of 9.8 Watts; up to 24.4 Watts with PoE output included.

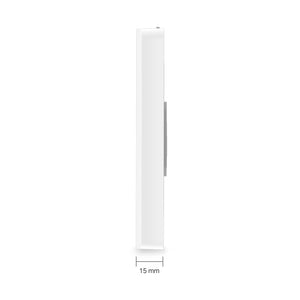

• Dimensions:
  • Approximately 143 x 86 x 20 mm (5.6 x 3.4 x 0.8 in)

Performance Features

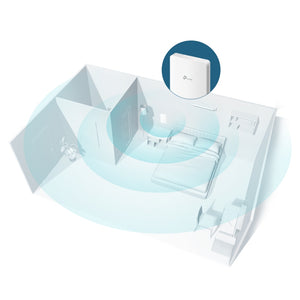

• Coverage Area:
  • Suitable for coverage of approximately 25 m² (300 ft²).
• Wireless Client Capacity:
  • Supports over 200 concurrent clients, making it suitable for high-density environments.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0–40°C (32–104°F)
• Storage Temperature:
  • Ranges from -40–70°C (-40–158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
