TP-Link EAP245 AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

The TP-Link EAP245 is a high-performance AC1750 dual-band wireless access point designed for indoor environments such as offices, hotels, and schools. With its advanced features, including MU-MIMO technology and centralized cloud management, the EAP245 provides reliable and fast Wi-Fi coverage for multiple devices.

Key Features

• High-Speed Dual-Band Performance:
  • Supports simultaneous dual-band speeds of up to 450 Mbps on the 2.4GHz band and 1300 Mbps on the 5GHz band, totaling up to 1750 Mbps for efficient bandwidth distribution.
• MU-MIMO Technology:
  • Utilizes 802.11ac Wave 2 MU-MIMO technology, allowing the access point to communicate with multiple clients simultaneously, optimizing network performance in high-density environments.
• Multiple SSIDs and VLAN Support:
  • Allows for the creation of up to 16 SSIDs (8 for each band), facilitating network segmentation for different user groups or purposes. It also supports VLAN tagging for enhanced network management.
• Power over Ethernet (PoE) Support:
  • Compatible with both 802.3af/at PoE and 48V Passive PoE, enabling flexible installation options without the need for additional power sources.
• Centralized Management:
  • Integrated into TP-Link's Omada SDN, offering zero-touch provisioning, centralized cloud management, and intelligent monitoring for easy management of multiple access points.
• Advanced Wireless Security:
  • Includes features such as WPA/WPA2 encryption, MAC address filtering, rogue AP detection, and captive portal authentication to ensure secure wireless access.

Technical Specifications

• Model: TP-Link EAP245
• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Frequency:
  • 2.4GHz: Up to 450 Mbps
  • 5GHz: Up to 1300 Mbps
• Antenna Configuration:
  • Internal Omni Antennas:
    • 2.4GHz: 3 x 3.5 dBi
    • 5GHz: 3 x 4 dBi
• Ports:
  • 2 x Gigabit Ethernet (RJ-45) ports (one supports PoE In, the other supports PoE Out)
• Power Supply:
  • Supports both standard PoE and Passive PoE (+4,5 pins; -7,8 pins)
• Power Consumption:
  • Maximum of 12.3 Watts
• Dimensions:
  • Approximately 205.5 x 181.5 x 37.1 mm (8.1 x 7.1 x 1.5 in)

Performance Features

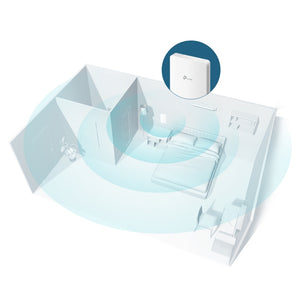

• Coverage Area:
  • Ideal for coverage of approximately 140 m² (1500 ft²).
• Wireless Client Capacity:
  • Supports over 220 concurrent clients, making it suitable for high-density environments.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
