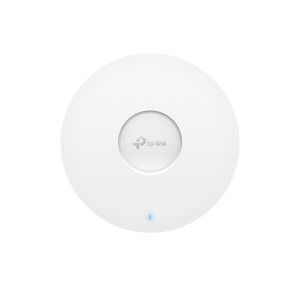

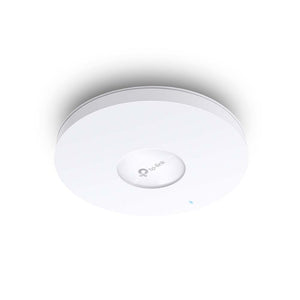

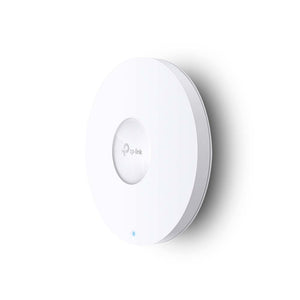

TP-Link EAP610 AX1800 Wireless Dual Band Access Point

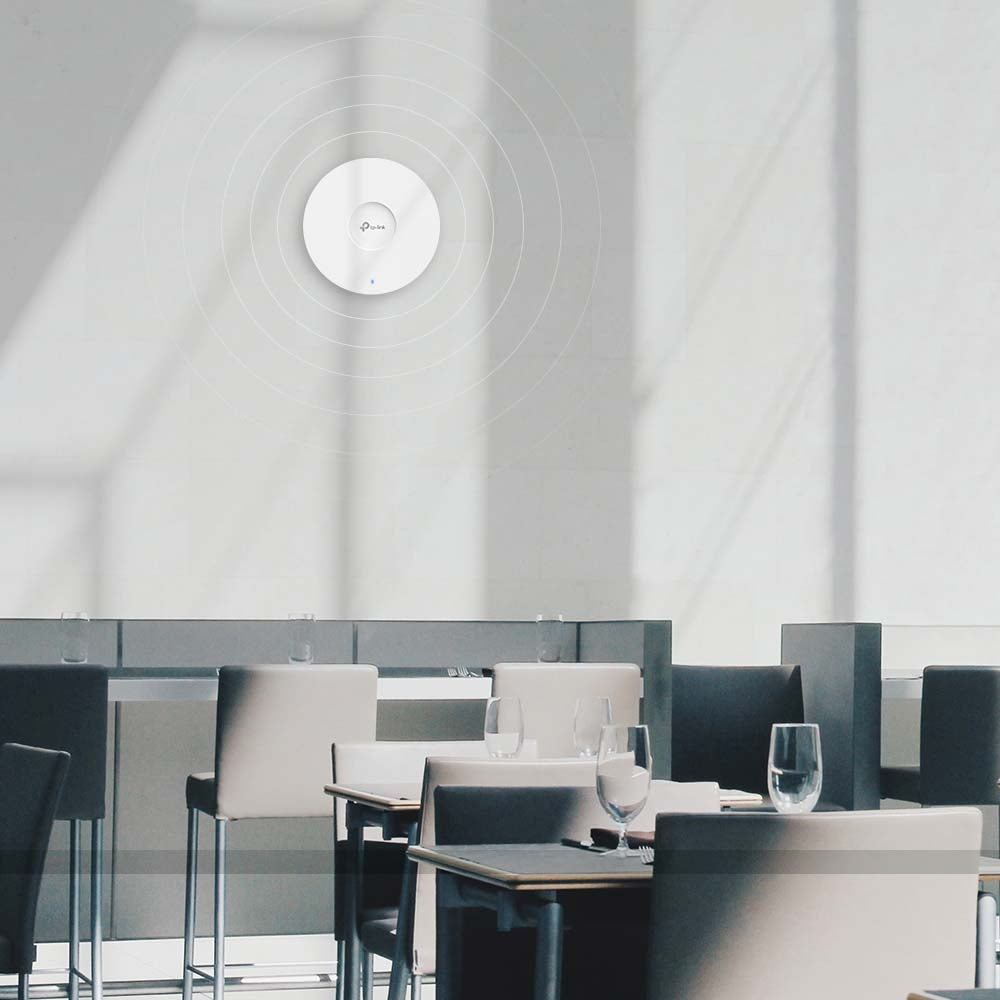

The TP-Link EAP610 is a high-performance AX1800 dual-band access point designed for both indoor and outdoor environments. Utilizing the latest Wi-Fi 6 technology, this access point delivers ultra-fast wireless speeds and enhanced capacity, making it ideal for high-density applications such as offices, hotels, and public spaces.

Key Features

• High-Speed Dual-Band Performance:
  • Provides simultaneous wireless speeds of up to 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band, totaling up to 1775 Mbps for improved performance across multiple devices.
• Wi-Fi 6 Technology:
  • Supports the latest 802.11ax standard, offering higher data rates, increased capacity, and improved efficiency in environments with many connected devices.
• MU-MIMO Support:
  • Equipped with MU-MIMO technology, allowing the EAP610 to communicate with multiple clients simultaneously, optimizing network performance and reducing latency.
• Power over Ethernet (PoE) Support:
  • Compatible with 802.3at PoE and 48V Passive PoE, enabling flexible installation without the need for additional power sources. A PoE adapter is included for convenience.
• Centralized Management:
  • Managed through TP-Link's Omada Controller software, allowing for centralized management of multiple access points, including monitoring and configuration via cloud access.
• Weatherproof Design (Outdoor Model):
  • The outdoor version features an IP67-rated weatherproof enclosure, ensuring durability in harsh environmental conditions.

Technical Specifications

• Model: TP-Link EAP610
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 1201 Mbps
• Antenna Configuration:
  • Internal Omni Antennas:
    • 2.4 GHz: 2 x 4 dBi
    • 5 GHz: 2 x 5 dBi

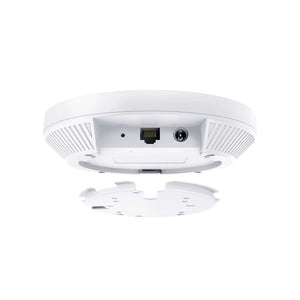

• Ports:
  • 1 x Gigabit Ethernet (RJ-45) port (supports PoE)
• Power Supply:
  • Supports both PoE and external power supply (12V / 1A DC; power adapter included)
• Power Consumption:
  • Maximum of 12.8 Watts (for PoE) or 10.8 Watts (for DC)

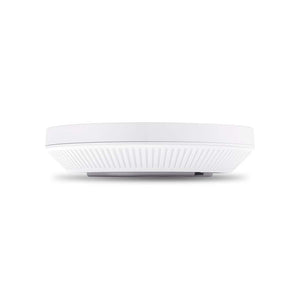

• Dimensions:
  • Approximately 243 x 243 x 64 mm (9.6 x 9.6 x 2.5 in)

Performance Features

• Wireless Client Capacity:
  • Supports over 250 concurrent clients, making it suitable for high-density environments.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
