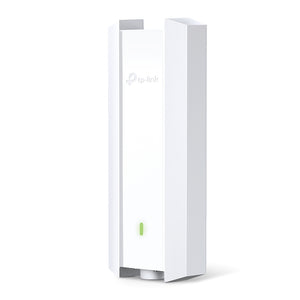

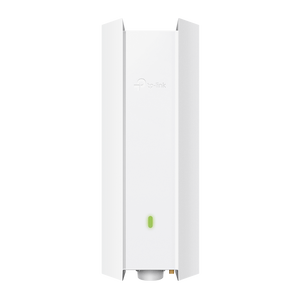

TP-Link EAP610-Outdoor AX1800 Wireless Dual-Band Access Point

The TP-Link EAP610-Outdoor is a high-performance AX1800 dual-band access point designed for both indoor and outdoor use. Utilizing the latest Wi-Fi 6 technology, this access point delivers ultra-fast wireless speeds and robust coverage, making it ideal for high-density environments such as parks, campuses, and large public spaces.

Key Features

• High-Speed Dual-Band Performance:
  • Provides wireless speeds of up to 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band, totaling up to 1775 Mbps, which is perfect for demanding applications.
• Wi-Fi 6 Technology:
  • Supports the latest 802.11ax standard, offering improved data rates, increased capacity, and enhanced efficiency in environments with many connected devices.
• MU-MIMO and OFDMA Support:
  • Equipped with MU-MIMO technology, allowing simultaneous communication with multiple clients, while OFDMA improves efficiency by enabling multiple users to share the same channel.
• IP67 Weatherproof Enclosure:
  • Designed to withstand harsh outdoor conditions with an IP67 rating, providing resistance against dust and moisture. This makes it suitable for outdoor installations in various climates.
• Long-Range Coverage:
  • Features high-powered antennas that provide a maximum range of up to 656 feet (200 meters) on the 2.4GHz frequency and up to 984 feet (300 meters) on the 5GHz frequency.
• Power over Ethernet (PoE) Options:
  • Supports both 802.3at PoE+ and Passive PoE, allowing for flexible installation without the need for additional power outlets. A PoE adapter is included for convenience.
• Omada SDN Integration:
  • Managed through TP-Link’s Omada Software Defined Networking (SDN) platform, enabling centralized management of multiple access points from a single interface.

Technical Specifications

• Model: TP-Link EAP610-Outdoor
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 1201 Mbps
• Antenna Configuration:
  • 2 x 4 dBi antennas for the 2.4 GHz band
  • 2 x 5 dBi antennas for the 5 GHz band
• Ports:

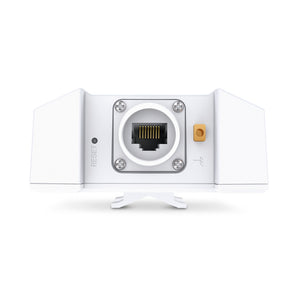

  • 1 x Gigabit Ethernet (RJ-45) port (supports PoE)
• Power Supply:
  • Passive PoE or external power supply (12V / 1A DC; power adapter included)
• Power Consumption:
  • Maximum of 12.5 Watts (EU) / 14.7 Watts (US)
• Dimensions:
  • Approximately 280.4 x 106.5 x 56.8 mm (without antenna & mounting kit)

Environmental Specifications

• Operating Temperature:
  • Ranges from -30°C to +70°C (-22°F to +158°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
