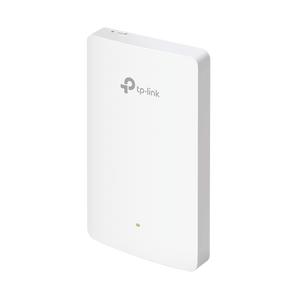

TP-Link EAP615-Wall AX1800 Wireless Dual-Band Access Point

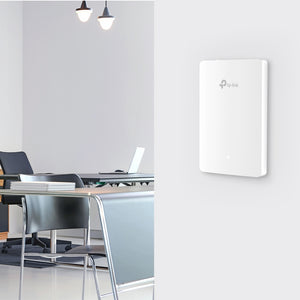

The TP-Link EAP615-Wall is a cutting-edge AX1800 dual-band wall plate access point designed to provide high-speed Wi-Fi 6 coverage in residential and commercial environments. Its sleek, compact design allows for easy installation into standard wall junction boxes, making it ideal for offices, hotels, and other settings where space is at a premium.

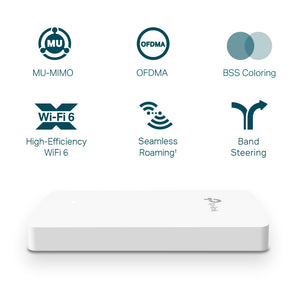

Key Features

• High-Speed Dual-Band Performance:
  • Offers simultaneous wireless speeds of up to 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band, totaling up to 1775 Mbps. This ensures reliable connectivity for multiple devices, enhancing user experience for streaming, gaming, and browsing.
• Wi-Fi 6 Technology:
  • Utilizes the latest 802.11ax standard, which increases data rates and improves network efficiency, allowing for more devices to connect without compromising performance.
• MU-MIMO and Beamforming:
  • Equipped with MU-MIMO technology to communicate with multiple devices simultaneously and beamforming technology to direct the Wi-Fi signal towards connected devices for improved coverage.
• Power over Ethernet (PoE) Support:
  • Supports 802.3af/at PoE, enabling easy installation by powering the device through an Ethernet cable without needing additional power outlets. One of the downlink ports also supports PoE pass-through.
• Centralized Management:
  • Managed through TP-Link’s Omada Controller software, allowing for centralized management of multiple access points from a single interface. This includes monitoring, configuration, and updates via cloud access.
• Multiple Gigabit Ports:
  • Features four Gigabit Ethernet ports (1 uplink + 3 downlink), allowing for direct connections to wired devices such as VoIP phones and printers.

Technical Specifications

• Model: TP-Link EAP615-Wall
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 1201 Mbps
• Antenna Configuration:
  • Internal dual-band antennas optimized for performance.

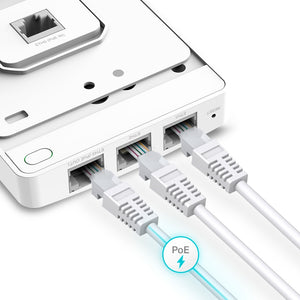

• Ports:
  • Uplink: 1 x Gigabit Ethernet port (supports PoE)
  • Downlink: 3 x Gigabit Ethernet ports (one supports PoE OUT)
• Power Supply:
  • Passive PoE or external power supply (12V / 1A DC; power adapter included)
• Power Consumption:
  • Maximum of 12W (US version) or 13W (EU version)
• Dimensions:
  • Approximately 220 x 240 x 70 mm (8.6 x 9.4 x 2.8 in)

Installation

• Designed for easy installation in standard wall junction boxes (86 mm), EU, or US wall junctions using the included mounting kit.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
