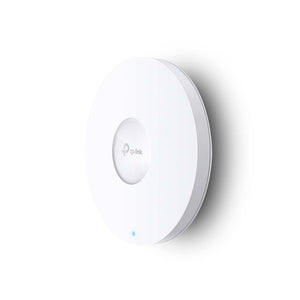

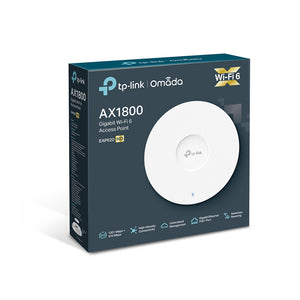

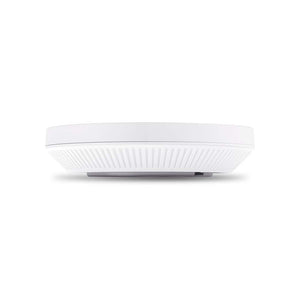

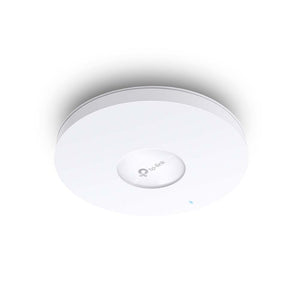

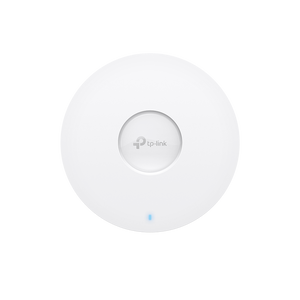

TP-Link EAP620 HD AX1800 Wireless Dual-Band Ceiling Mount Access Point

The TP-Link EAP620 HD is a high-performance AX1800 dual-band ceiling mount access point designed to deliver ultra-fast Wi-Fi 6 connectivity in high-density environments such as offices, hotels, and public spaces. With its advanced features, the EAP620 HD provides reliable coverage and seamless connectivity for multiple devices.

Key Features

• High-Speed Dual-Band Performance:
  • Delivers simultaneous wireless speeds of up to 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band, totaling up to 1775 Mbps for improved performance across various applications.
• Wi-Fi 6 Technology:
  • Utilizes the latest 802.11ax standard, offering enhanced data rates, increased capacity, and better efficiency for environments with numerous connected devices.
• MU-MIMO and OFDMA Support:
  • Equipped with MU-MIMO technology to allow simultaneous communication with multiple clients, while OFDMA improves efficiency by enabling multiple users to share the same channel.
• Centralized Management:
  • Integrated into TP-Link’s Omada SDN (Software Defined Networking), enabling zero-touch provisioning, centralized cloud management, and intelligent monitoring for easy management of multiple access points.
• Power over Ethernet (PoE) Support:
  • Supports 802.3at PoE and 48V Passive PoE, allowing for flexible installation options without the need for additional power sources. A power adapter is also included for DC power supply.
• Seamless Roaming:
  • Provides seamless roaming capabilities, ensuring uninterrupted connectivity for users moving between access points within the network.

Technical Specifications

• Model: TP-Link EAP620 HD
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 1201 Mbps
• Antenna Configuration:
  • Internal Omni Antennas:
    • 2 x 4 dBi for the 2.4 GHz band
    • 2 x 5 dBi for the 5 GHz band

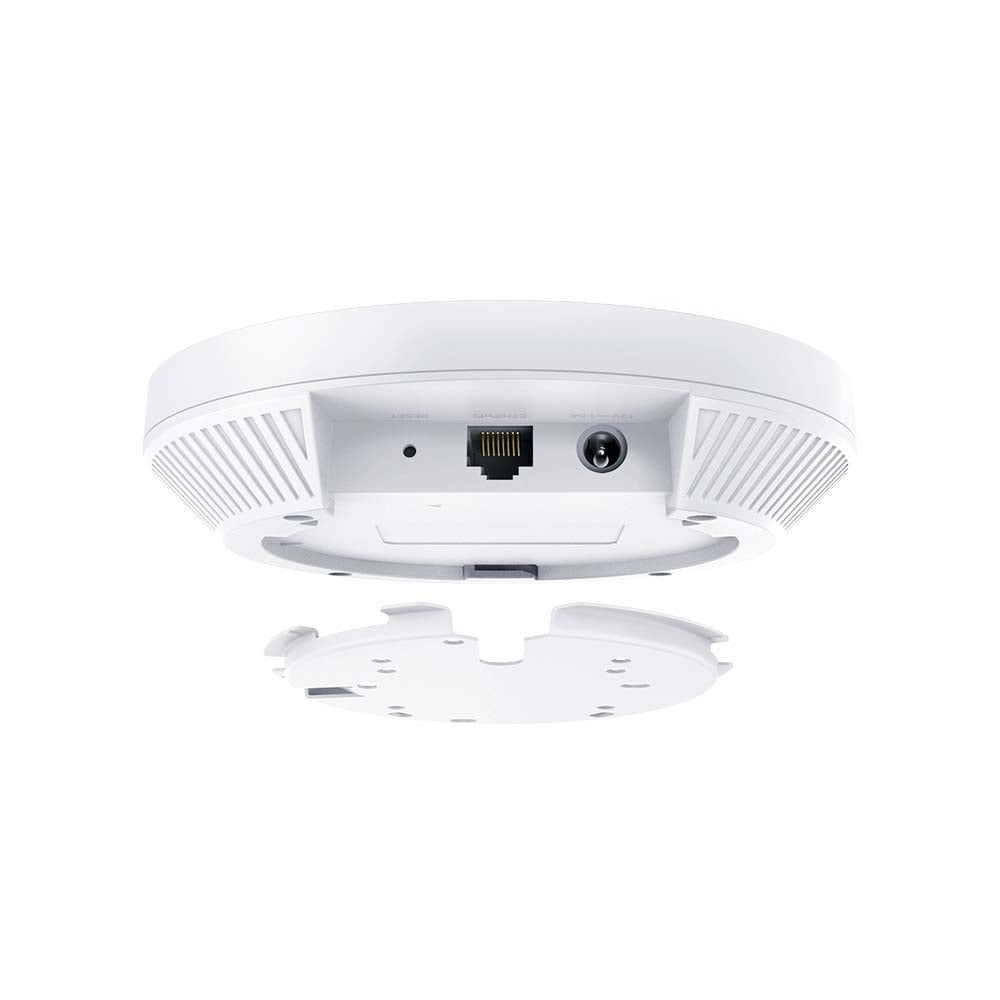

• Ports:
  • 1 x Gigabit Ethernet (RJ-45) port (supports PoE)
• Power Supply:
  • Passive PoE or external power supply (12V / 1.5A DC; adapter included)
• Power Consumption:
  • Maximum of 14.4 W (EU) / 14.9 W (US) when using PoE; lower when powered by DC.
• Dimensions:
  • Approximately 160 x 160 x 33.6 mm (6.3 x 6.3 x 1.3 in)

Performance Features

• Coverage Area:
  • Suitable for coverage of approximately 140 m² (1500 ft²).
• Concurrent Clients:
  • Supports over 1,020 concurrent clients, making it ideal for high-density environments.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
