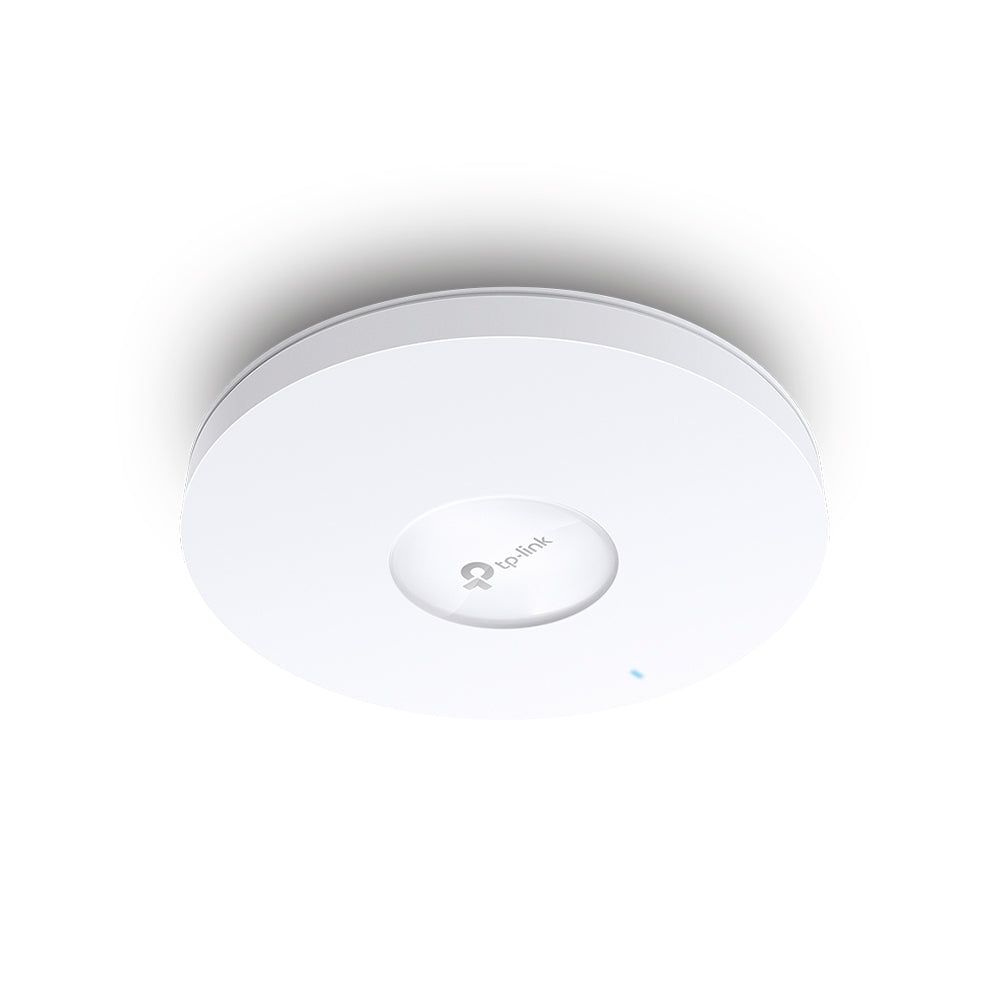

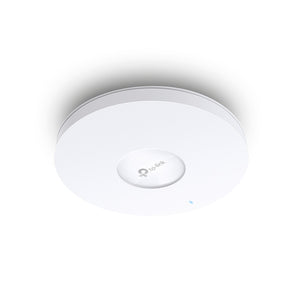

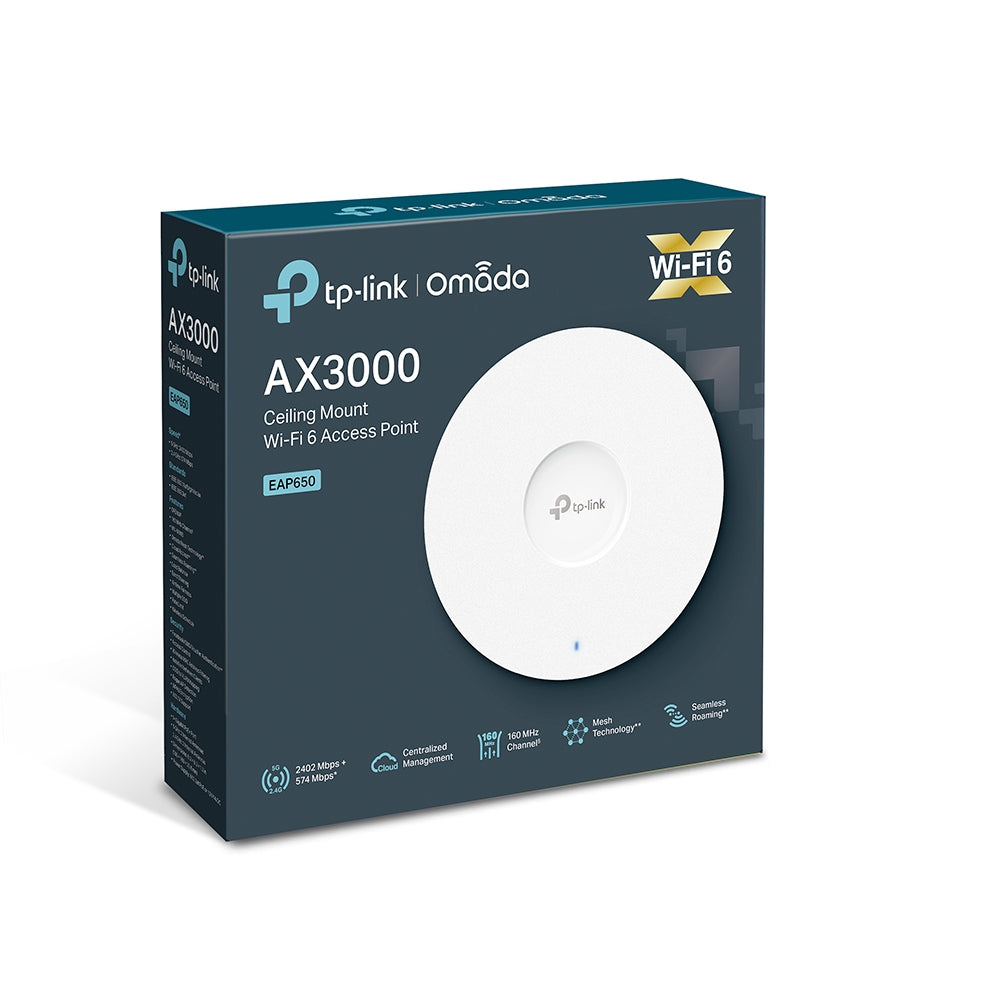

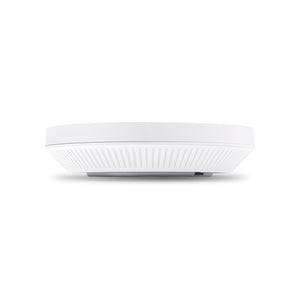

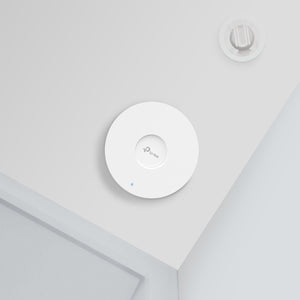

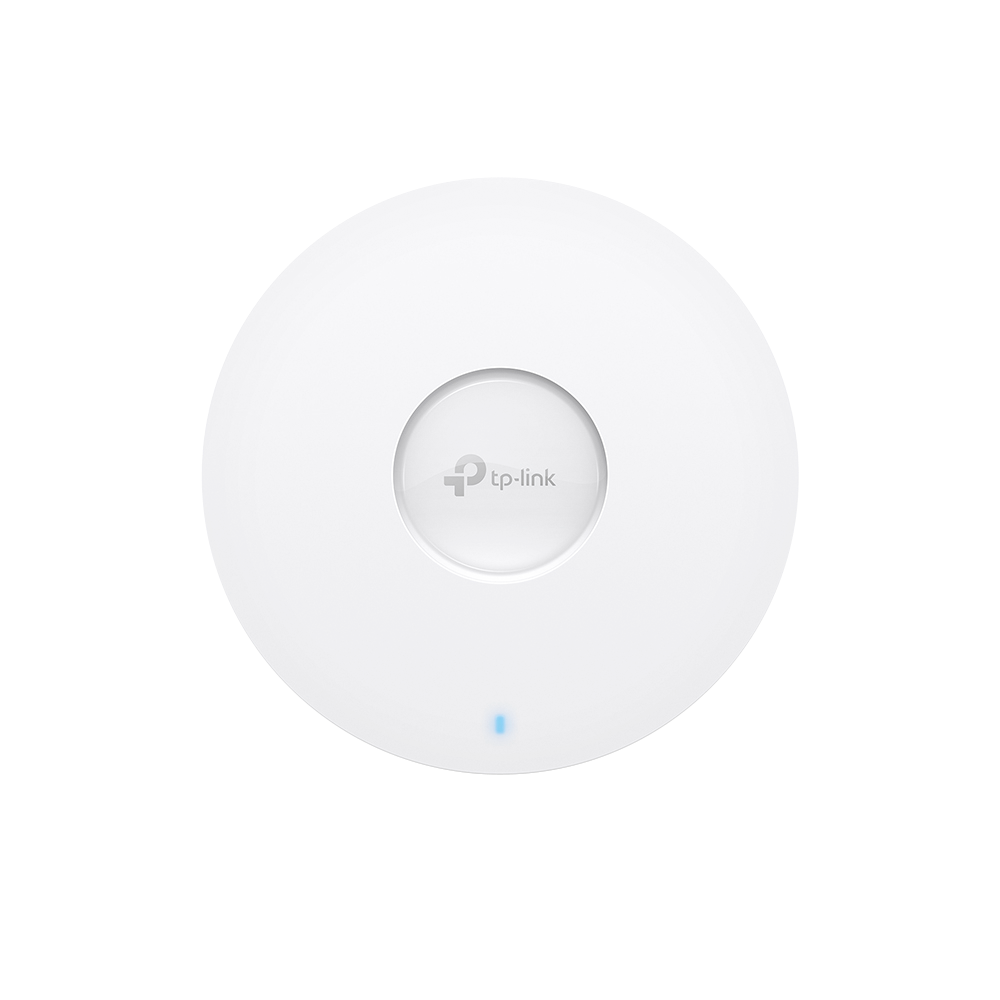

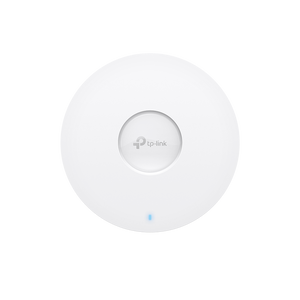

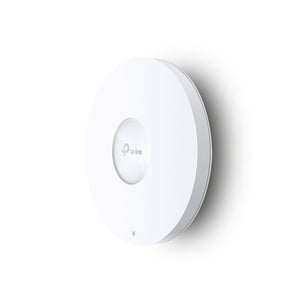

TP-Link EAP650 AX3000 Ceiling Mount Wi-Fi 6 Access Point

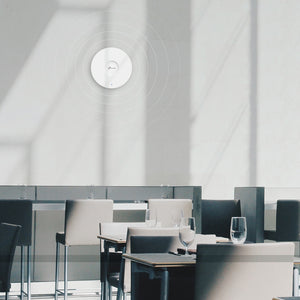

The TP-Link EAP650 is a high-performance AX3000 dual-band ceiling mount access point designed to deliver exceptional Wi-Fi 6 connectivity in various environments, including offices, retail spaces, and public venues. With its sleek design and advanced features, the EAP650 is ideal for businesses seeking reliable and fast wireless coverage.

Key Features

• High-Speed Dual-Band Performance:
  • Provides simultaneous wireless speeds of up to 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band, totaling up to 2976 Mbps, ensuring robust performance for multiple devices.
• Wi-Fi 6 Technology:
  • Utilizes the latest 802.11ax standard, which enhances data rates, increases capacity, and improves efficiency in environments with numerous connected devices.
• OFDMA and MU-MIMO Support:
  • Equipped with OFDMA (Orthogonal Frequency Division Multiple Access) for efficient data transmission to multiple devices simultaneously and MU-MIMO technology to allow multiple users to connect without degrading performance.
• Centralized Cloud Management:

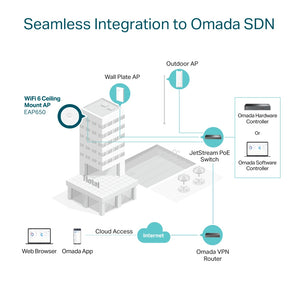

  • Compatible with TP-Link's Omada SDN (Software Defined Networking), enabling centralized management of multiple access points for easy monitoring, configuration, and updates via cloud access.
• Power over Ethernet (PoE) Support:
  • Supports 802.3at PoE, allowing for flexible installation without the need for additional power sources. A power adapter is also included for DC power supply.
• Multiple SSIDs and VLAN Support:
  • Allows the creation of up to 16 SSIDs (8 per band), facilitating network segmentation for different user groups or purposes.

Technical Specifications

• Model: TP-Link EAP650
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 2402 Mbps
• Antenna Configuration:
  • Internal Omni Antennas:
    • 2 x 4 dBi for the 2.4 GHz band
    • 2 x 5 dBi for the 5 GHz band

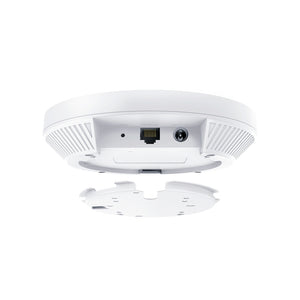

• Ports:
  • 1 x Gigabit Ethernet (RJ-45) port (supports PoE)
• Power Supply:
  • Passive PoE or external power supply (12V / 1A DC; adapter included)
• Power Consumption:
  • Maximum of 13.5 W (EU) / 14.7 W (US)
• Dimensions:
  • Approximately 160 x 160 x 33.6 mm (6.3 x 6.3 x 1.3 in)

Performance Features

• Coverage Area:
  • Suitable for coverage of approximately 140 m² (1500 ft²).
• Wireless Client Capacity:
  • Supports over 250 concurrent clients, making it ideal for high-density environments.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
