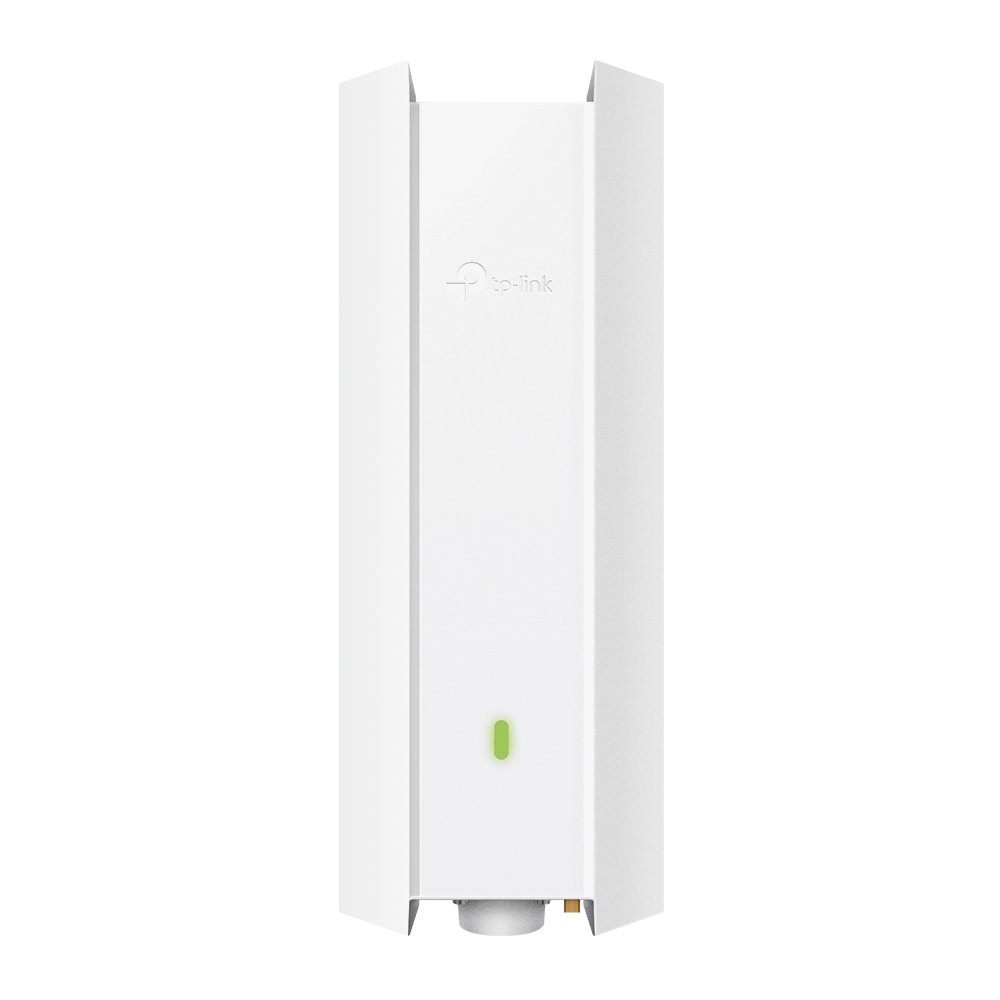

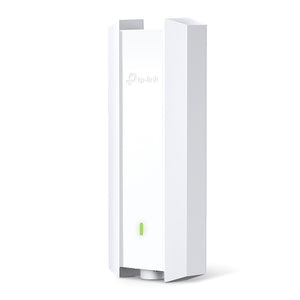

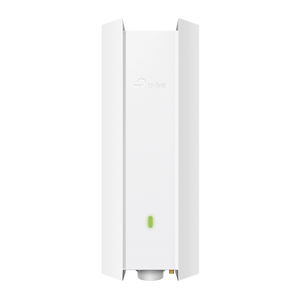

TP-Link EAP650-Outdoor AX3000 Wireless Dual-Band Access Point

The TP-Link EAP650-Outdoor is a high-performance AX3000 dual-band access point designed for both indoor and outdoor use. It leverages the latest Wi-Fi 6 technology to deliver exceptional wireless performance, making it ideal for high-density environments such as campuses, parks, stadiums, and business complexes.

Key Features

• Ultra-Fast Wi-Fi 6 Speeds:
  • Provides dual-band speeds of up to 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band, totaling up to 2976 Mbps. This ensures reliable coverage and high-capacity connections for multiple users.

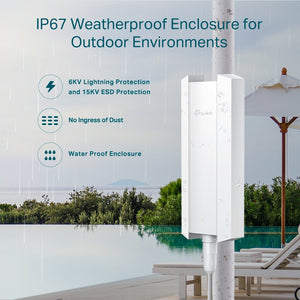

• IP67 Weatherproof Enclosure:
  • Designed to withstand harsh outdoor conditions, the EAP650-Outdoor features an IP67-rated enclosure that is resistant to dust and water, ensuring durability in various environments.
• Long-Range Coverage:
  • Equipped with high-power amplifiers and professional antennas, the EAP650-Outdoor can cover distances of over 200 meters on the 2.4GHz band and up to 300 meters on the 5GHz band, providing extensive wireless coverage.
• OFDMA and MU-MIMO Support:
  • Utilizes OFDMA (Orthogonal Frequency Division Multiple Access) and MU-MIMO (Multi-User Multiple Input Multiple Output) technologies to improve efficiency and performance in high-density scenarios by allowing simultaneous data transmission to multiple devices.
• Power over Ethernet (PoE) Support:
  • Supports both 802.3at PoE+ and 48V Passive PoE, enabling flexible installation without the need for additional power sources. A PoE adapter is included for convenience.
• Centralized Cloud Management:

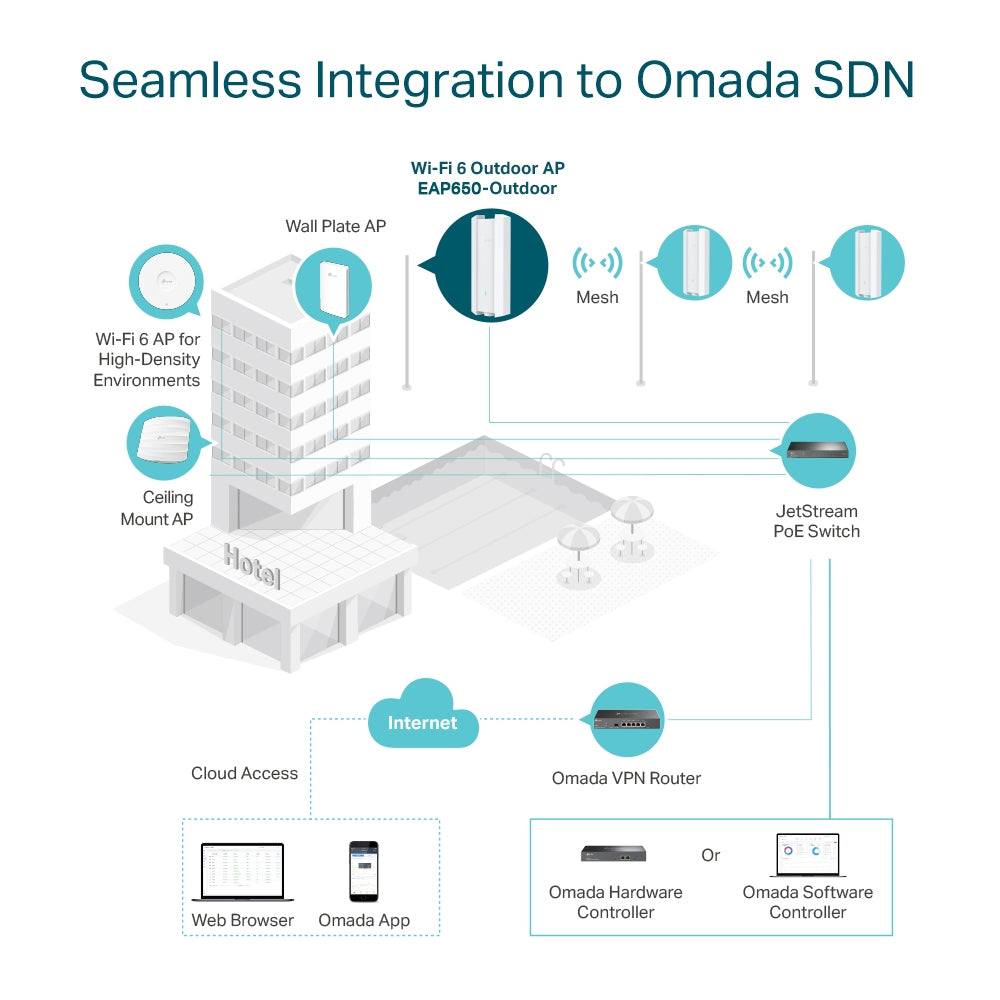

  • Integrated with TP-Link’s Omada SDN (Software Defined Networking), allowing for centralized management of multiple access points through cloud access for easy monitoring and configuration.

Technical Specifications

• Model: TP-Link EAP650-Outdoor
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 2402 Mbps
• Antenna Configuration:
  • 2 x 4 dBi antennas for the 2.4 GHz band
  • 2 x 5 dBi antennas for the 5 GHz band
• Ports:

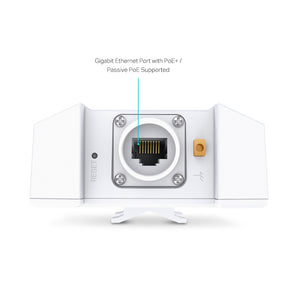

  • 1 x Gigabit Ethernet (RJ-45) port (supports PoE)
• Power Supply:
  • Passive PoE or external power supply (12V / 1A DC; adapter included)
• Power Consumption:
  • Maximum of 12.5W (EU) / 14.7W (US)
• Dimensions:
  • Approximately 280.4 x 106.5 x 56.8 mm (without antenna & mounting kit)

Environmental Specifications

• Operating Temperature:
  • Ranges from -30°C to +70°C (-22°F to +158°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
