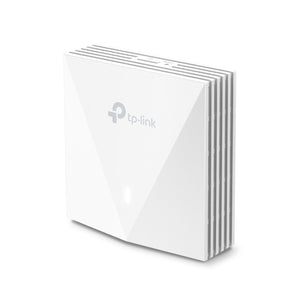

TP-Link EAP650-Wall AX3000 Wireless Wall Plate Access Point

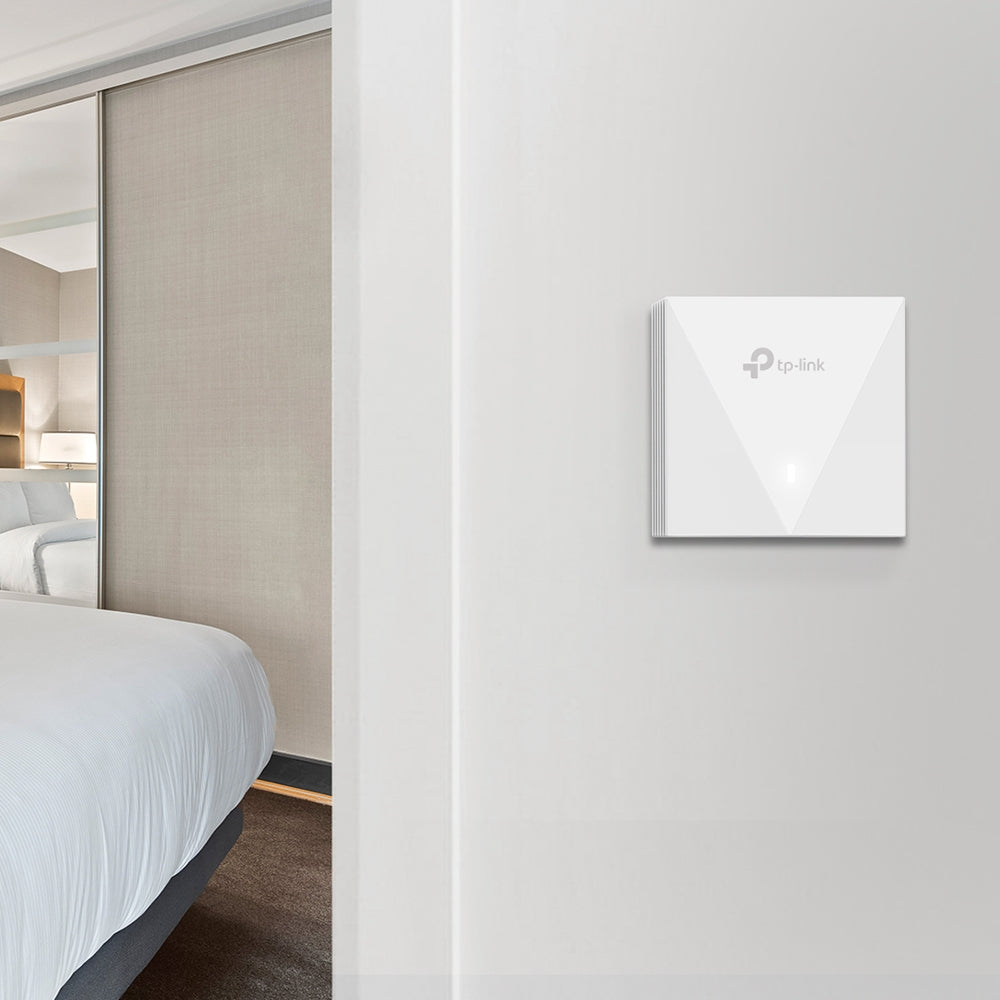

The TP-Link EAP650-Wall is a high-performance AX3000 dual-band wall plate access point designed to deliver robust Wi-Fi 6 connectivity in indoor environments such as offices, hotels, and residential buildings. Its compact design allows for easy installation into standard wall junction boxes, providing a seamless and unobtrusive networking solution.

Key Features

• High-Speed Dual-Band Performance:
  • Supports simultaneous wireless speeds of up to 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band, totaling up to 2976 Mbps, ensuring reliable connectivity for multiple devices.
• Wi-Fi 6 Technology:
  • Utilizes the latest 802.11ax standard, which enhances data rates, increases capacity, and improves efficiency in environments with numerous connected devices.
• MU-MIMO and OFDMA Support:
  • Equipped with MU-MIMO technology to allow simultaneous communication with multiple clients and OFDMA to improve efficiency by enabling multiple users to share the same channel.
• Easy Installation:
  • Designed to fit into standard 86 mm wall junction boxes or EU wall junctions. The installation process is straightforward, requiring minimal tools and expertise.
• Power over Ethernet (PoE) Support:
  • Supports both 802.3af/at PoE, allowing for flexible installation without the need for additional power outlets. This simplifies the setup process by using a single cable for data and power.

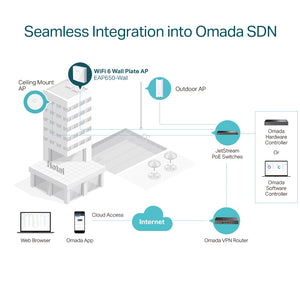

• Centralized Management:
  • Managed through TP-Link’s Omada Controller software, enabling centralized management of multiple access points for easy monitoring, configuration, and updates via cloud access.

Technical Specifications

• Model: TP-Link EAP650-Wall
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 2402 Mbps
• Antenna Configuration:
  • Internal antennas optimized for performance.

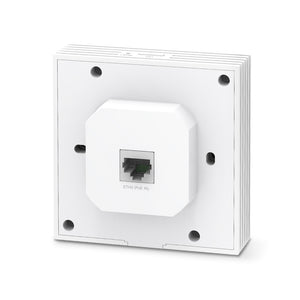

• Ports:
  • 1 x Gigabit Ethernet port (supports PoE)
• Power Supply:
  • Passive PoE or external power supply (12V / 1A DC; adapter included)
• Power Consumption:
  • Maximum of 13W
• Dimensions:
  • Approximately 220 x 120 x 30 mm (8.7 x 4.7 x 1.2 in)

Installation Steps

1. Ensure that a wall junction box is pre-installed with an Ethernet cable connected to a PoE switch.
2. Detach the faceplate of the junction box using a Phillips screwdriver.

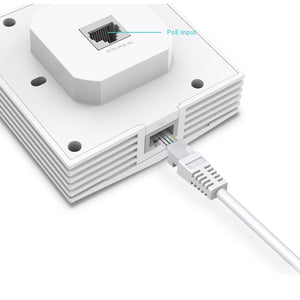

3. Connect the Ethernet cable inside the junction box to the UPLINK+PoE port on the EAP650-Wall.
4. Secure the EAP650-Wall to the junction box using the provided screws.
5. Reattach the faceplate of the EAP650-Wall.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
