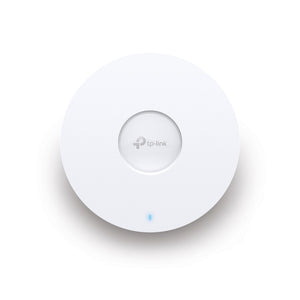

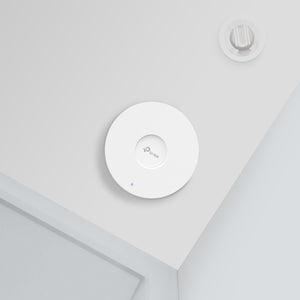

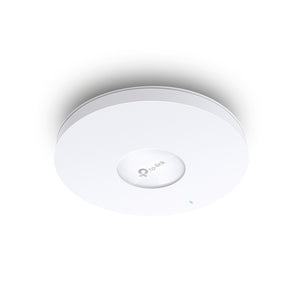

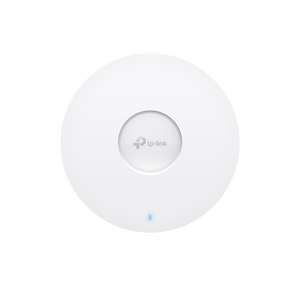

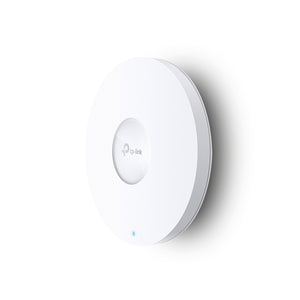

TP-Link EAP653 AX3000 Ceiling Mount Wi-Fi 6 Access Point

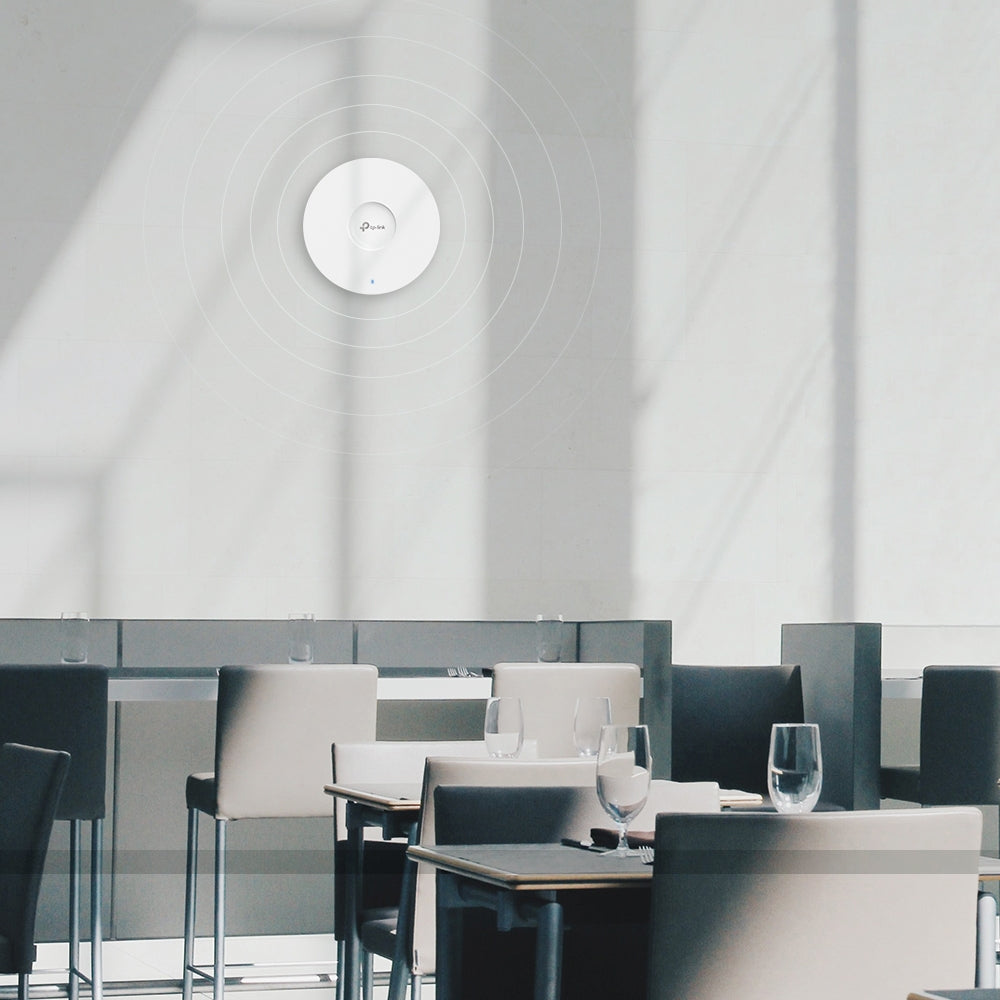

The TP-Link EAP653 is a high-performance AX3000 dual-band ceiling mount access point designed to deliver exceptional Wi-Fi 6 connectivity in both commercial and residential environments. With its advanced features, the EAP653 ensures robust performance and reliable coverage for multiple devices, making it ideal for offices, hotels, and public spaces.

Key Features

• Ultra-Fast Wi-Fi 6 Speeds:

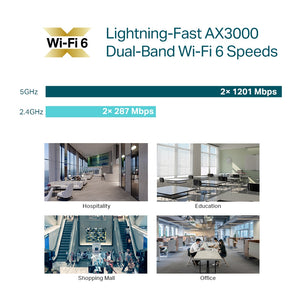

  • Provides simultaneous wireless speeds of up to 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band, totaling up to 2976 Mbps. This high speed is perfect for bandwidth-intensive applications.
• Advanced Wi-Fi 6 Technology:
  • Utilizes the latest 802.11ax standard, which enhances data rates, increases capacity, and improves efficiency in environments with numerous connected devices.
• MU-MIMO and OFDMA Support:
  • Equipped with MU-MIMO technology to allow simultaneous communication with multiple clients and OFDMA (Orthogonal Frequency Division Multiple Access) to improve efficiency by enabling multiple users to share the same channel.
• Multiple SSIDs and VLAN Support:
  • Allows the creation of up to 16 SSIDs (8 for each band), facilitating network segmentation for different user groups or purposes.
• Power over Ethernet (PoE) Support:

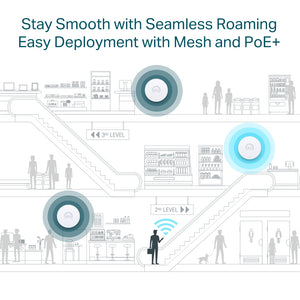

  • Supports both 802.3at PoE and 48V Passive PoE, allowing for flexible installation without the need for additional power sources.

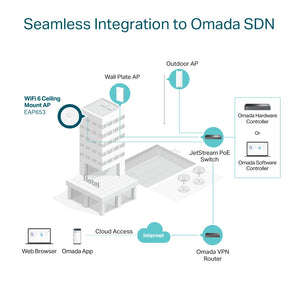

• Centralized Management:
  • Managed through TP-Link’s Omada Controller software, enabling centralized management of multiple access points for easy monitoring, configuration, and updates via cloud access.

Technical Specifications

• Model: TP-Link EAP653
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 2402 Mbps
• Antenna Configuration:
  • Internal Omni Antennas:
    • 2 x 4 dBi for the 2.4 GHz band
    • 2 x 5 dBi for the 5 GHz band
• Ports:

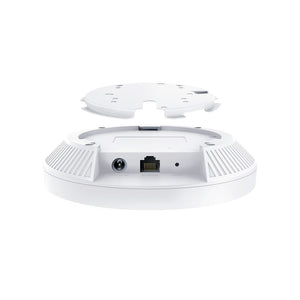

  • 1 x Gigabit Ethernet (RJ-45) port (supports PoE)
• Power Supply:
  • Passive PoE or external power supply (12V DC; adapter not included)
• Power Consumption:
  • Maximum of 13.5 W (EU) / 14.7 W (US)
• Dimensions:

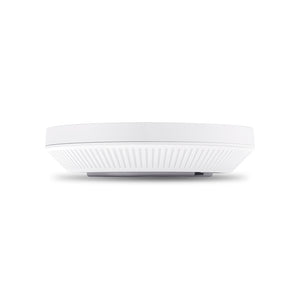

  • Approximately 160 x 160 x 33.6 mm (6.3 x 6.3 x 1.3 in)

Performance Features

• Coverage Area:
  • Suitable for coverage of approximately 140 m² (1500 ft²).
• Concurrent Clients:
  • Supports over 250 concurrent clients, making it ideal for high-density environments.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
