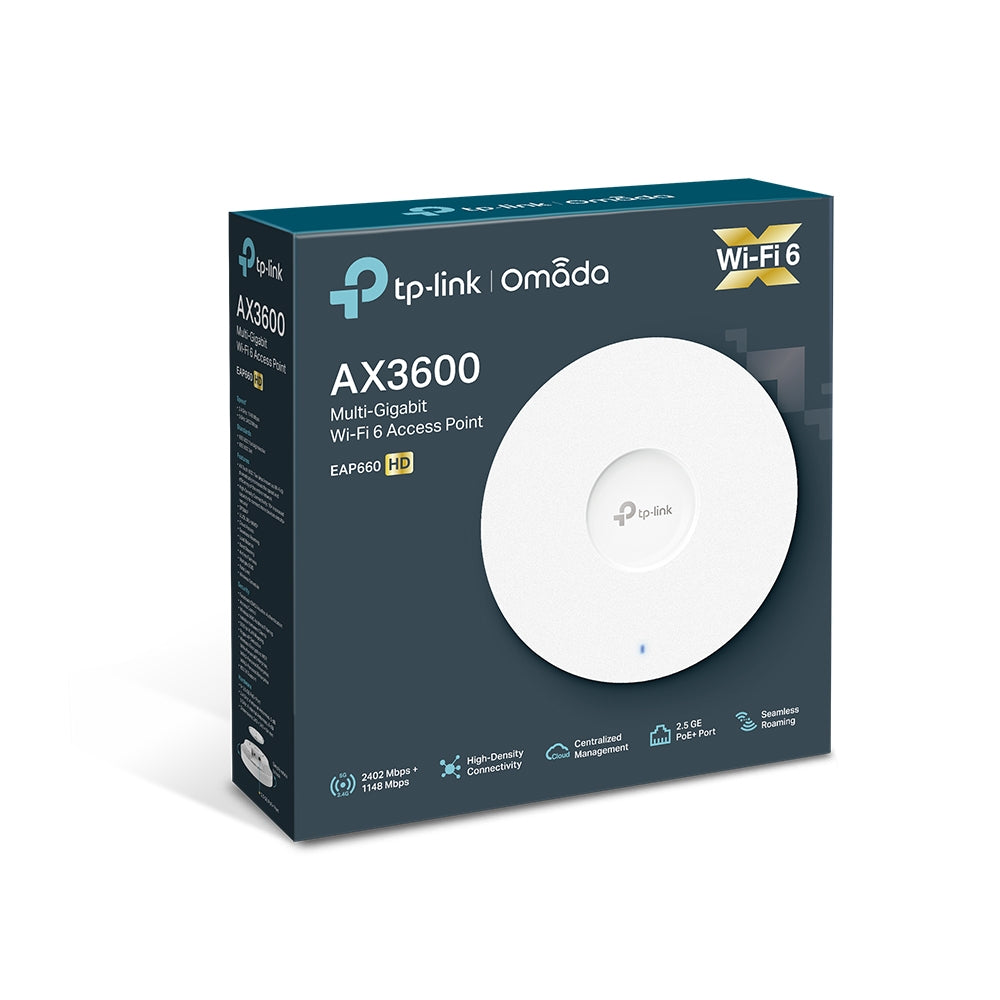

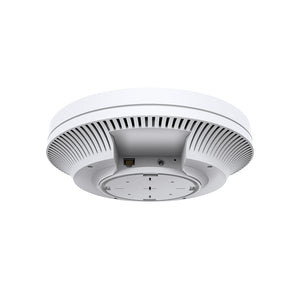

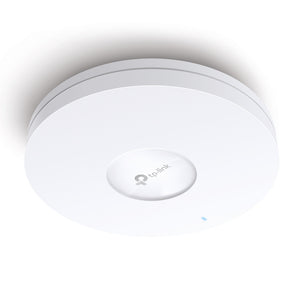

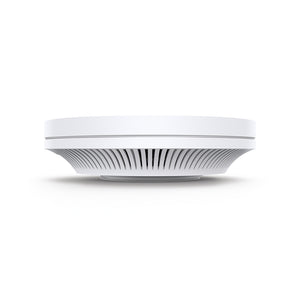

TP-Link EAP660 HD AX3600 Wireless Dual-Band Access Point

The TP-Link EAP660 HD is a high-performance AX3600 dual-band ceiling mount access point designed to deliver superior Wi-Fi 6 connectivity in high-density environments such as offices, schools, and retail spaces. With advanced technologies and robust features, the EAP660 HD provides extensive coverage and reliable performance for multiple users and devices.

Key Features

• Ultra-Fast Wi-Fi 6 Speeds:
  • Offers simultaneous wireless speeds of up to 1148 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band, totaling up to 3550 Mbps. This ensures fast and efficient performance for bandwidth-intensive applications.
• Multi-Gigabit Ethernet Support:
  • Equipped with a 2.5 Gbps Ethernet port, the EAP660 HD allows for ultra-fast wired connectivity, maximizing network throughput and performance.
• Advanced Wireless Technologies:
  • Features MU-MIMO, OFDMA, and BSS Coloring, enabling the access point to handle multiple connections simultaneously with reduced interference and lower latency—ideal for crowded environments.
• Centralized Management with Omada SDN:
  • Integrated into TP-Link's Omada Software Defined Networking (SDN), providing zero-touch provisioning, centralized cloud management, and intelligent monitoring for easy management of multiple access points.
• Seamless Roaming:
  • Supports seamless roaming capabilities, allowing users to move between access points without interruption, making it suitable for applications like VoIP and video conferencing.
• Power over Ethernet (PoE) Support:
  • Supports 802.3at PoE, simplifying installation by allowing power and data to be delivered over a single Ethernet cable.

Technical Specifications

• Model: TP-Link EAP660 HD
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands:
  • 2.4 GHz: Up to 1148 Mbps
  • 5 GHz: Up to 2402 Mbps
• Antenna Configuration:
  • Internal Omni Antennas:
    • 2.4 GHz: 4 x 4 dBi
    • 5 GHz: 4 x 5 dBi
• Ports:
  • 1 x 2.5 Gbps Ethernet port (supports PoE)
• Power Supply:
  • Passive PoE or external power supply (12V DC; adapter included)
• Power Consumption:
  • Maximum of 18.5 W (EU) / 21.5 W (US)
• Dimensions:
  • Approximately 243 x 243 x 64 mm (9.6 x 9.6 x 2.5 in)

Performance Features

• Wireless Client Capacity:
  • Supports over 1,000 concurrent clients, making it ideal for high-density environments.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
