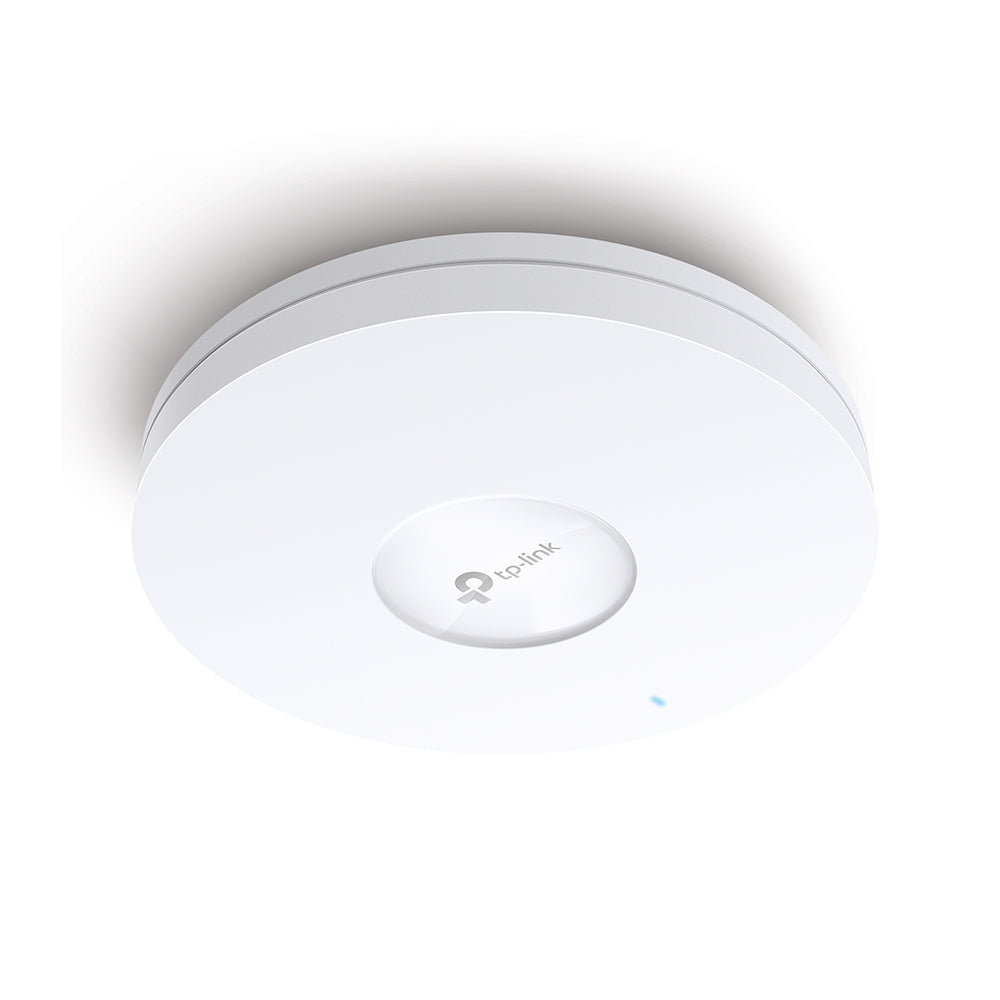

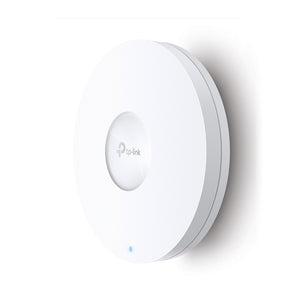

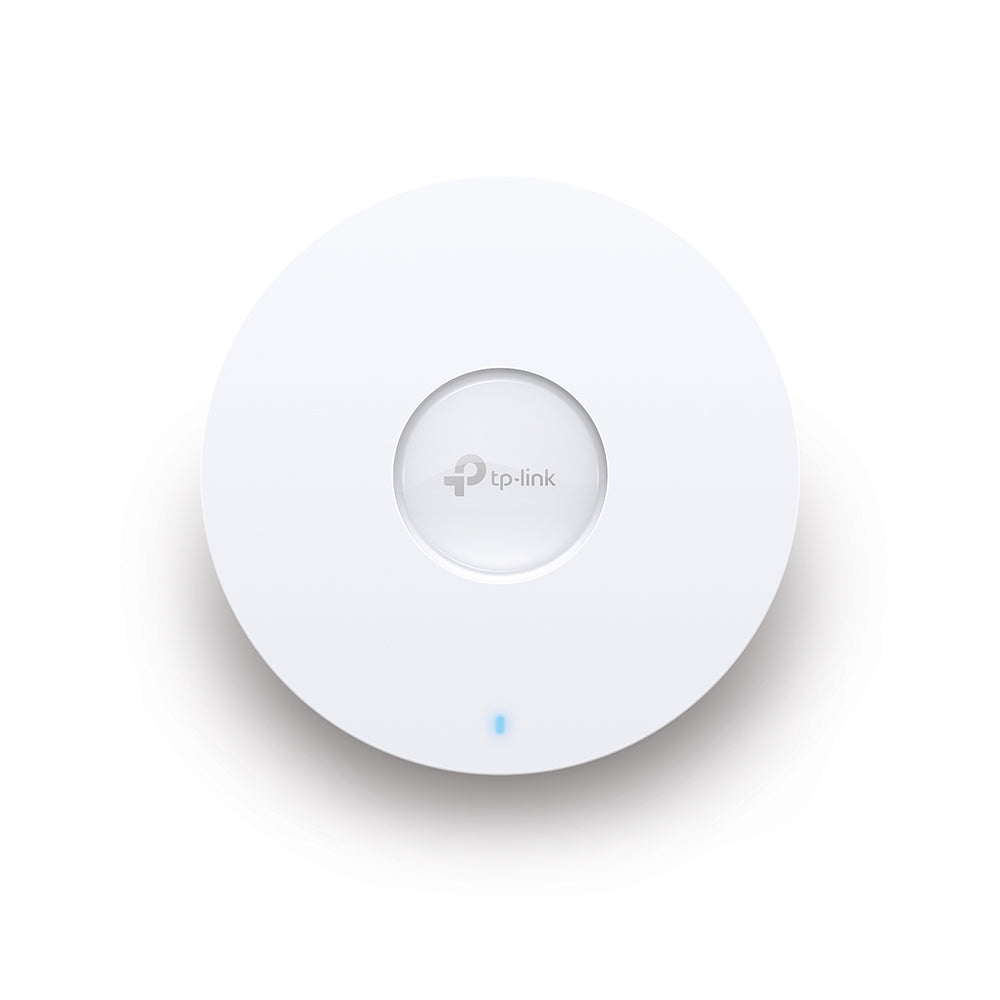

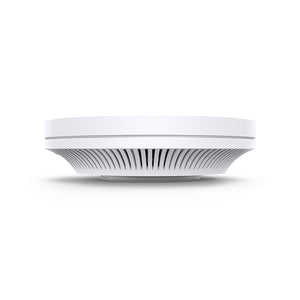

TP-Link EAP670 AX5400 Ceiling Mount Wi-Fi 6 Access Point

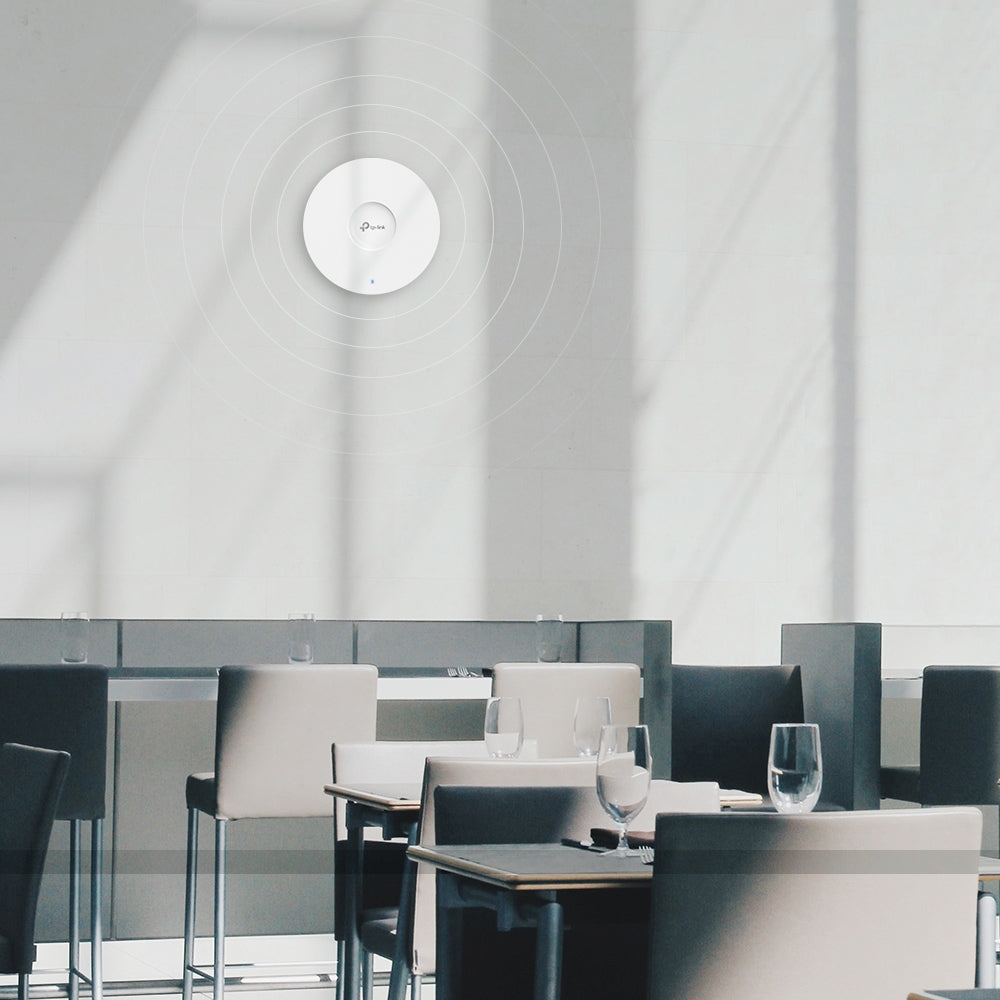

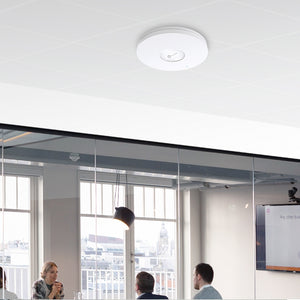

The TP-Link EAP670 is a high-performance AX5400 dual-band ceiling mount access point designed to deliver exceptional Wi-Fi 6 connectivity in high-density environments such as offices, hospitality venues, and public spaces. With advanced features and robust specifications, the EAP670 ensures reliable performance for multiple users and devices.

Key Features

• Ultra-Fast Wi-Fi 6 Speeds:
  • Provides simultaneous wireless speeds of up to 574 Mbps on the 2.4GHz band and 4804 Mbps on the 5GHz band, totaling up to 5378 Mbps. This high speed is ideal for bandwidth-intensive applications like streaming and gaming.
• 2.5 Gigabit Ethernet Port:
  • Equipped with a 2.5 Gbps Ethernet port, the EAP670 supports high-speed wired connections, maximizing throughput and performance for connected devices.
• Advanced Wireless Technologies:
  • Features MU-MIMO, OFDMA, and support for 160 MHz channels, allowing for efficient data transmission to multiple users simultaneously while reducing latency.
• Centralized Cloud Management:

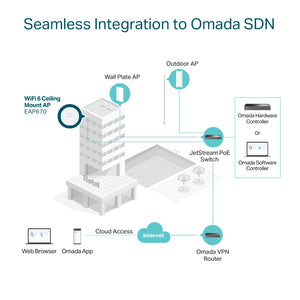

  • Integrated with TP-Link’s Omada Software Defined Networking (SDN), enabling centralized management of multiple access points through a single interface, accessible via web UI or the Omada app.
• Seamless Roaming:

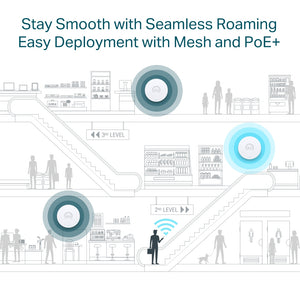

  • Supports seamless roaming capabilities, allowing users to move between access points without interruption, which is essential for applications like VoIP and video conferencing.
• Power over Ethernet (PoE) Support:
  • Supports both 802.3at PoE and DC power supply (adapter included), allowing for flexible installation without additional power outlets.

Technical Specifications

• Model: TP-Link EAP670
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 4804 Mbps
• Antenna Configuration:
  • Internal Omni Antennas:
    • 2 x 4 dBi for the 2.4 GHz band
    • 4 x 5 dBi for the 5 GHz band
• Ports:

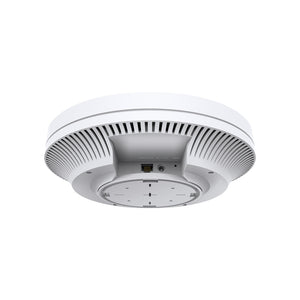

  • 1 x 2.5 Gigabit Ethernet (RJ-45) port (supports PoE)
• Power Supply:
  • Passive PoE or external power supply (12V / 1.5A DC; adapter included)
• Power Consumption:
  • Maximum of 18.1 W (EU) / 19.8 W (US)
• Dimensions:
  • Approximately 243 x 243 x 64 mm (9.6 x 9.6 x 2.5 in)

Performance Features

• Coverage Area:
  • Suitable for coverage of approximately 140 m² (1500 ft²).
• Concurrent Clients:
  • Supports over 250 concurrent clients, making it ideal for high-density environments.

Environmental Specifications

• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing
