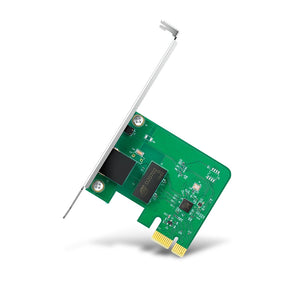

TP-Link TG-3468 Gigabit PCI Express Network Adapter

The TP-Link TG-3468 is a high-performance Gigabit PCI Express Network Adapter designed to upgrade your desktop's networking capabilities. This adapter supports fast data rates and is compatible with various operating systems, making it an ideal choice for enhancing your network connectivity.

Key Features:

• Gigabit Speed: Supports data rates of 10/100/1000 Mbps, allowing for fast and reliable network connections.
• PCI Express Interface: Utilizes a 32-bit PCI Express 1.0 interface, saving valuable chassis space while ensuring high-speed performance.
• Wake-on-LAN Support: Enables remote management and wake-up capabilities over the local area network (LAN).
• LED Indicators: Features LED indicators for 1000 Mbps, 100 Mbps, and 10 Mbps link/activity status.
• Auto-Negotiation: Automatically negotiates the best connection speed for optimal performance.

Specifications:

• Standards and Protocols:
  • IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
• Interface:
  • 1 x 10/100/1000 Mbps RJ45 port
• Network Media:
  • Supports UTP category 3, 4, 5 cable (maximum length: 100m)
• Data Rates:
  • Half-Duplex: 10/100/1000 Mbps
  • Full-Duplex: 20/200/2000 Mbps
• Dimensions:
  • Approximately 3.1 x 4.8 x 0.8 inches (78.5 x 120.8 x 21.5 mm)
• Operating Temperature:
  • Range: 0°C to 40°C (32°F to 104°F)
• Storage Temperature:
  • Range: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity:
  • Range: 10% to 90%, non-condensing
• Storage Humidity:
  • Range: 5% to 90%, non-condensing

Package Contents:

• TP-Link TG-3468 Gigabit PCI Express Network Adapter
• Resource CD
• Quick Installation Guide
• Low-profile bracket for compact cases

System Requirements:

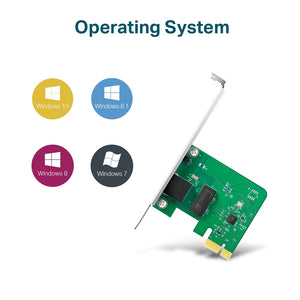

• Windows (11/10/8.1/8/7/Vista/XP)
