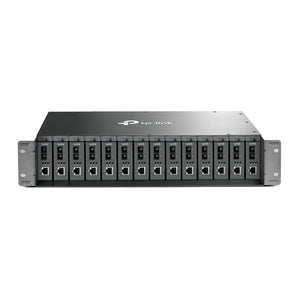

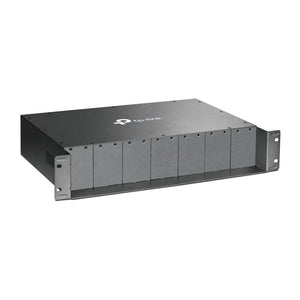

TP-Link TL-MC1400 14-Slot Unmanaged Media Converter Chassis

The TP-Link TL-MC1400 is a 14-slot rackmount chassis designed to house up to 14 TP-Link media converters. This chassis provides a centralized power supply, simplifying the management of multiple media converters in a network environment. It is ideal for applications requiring efficient media conversion for fiber and copper networks.

Key Features

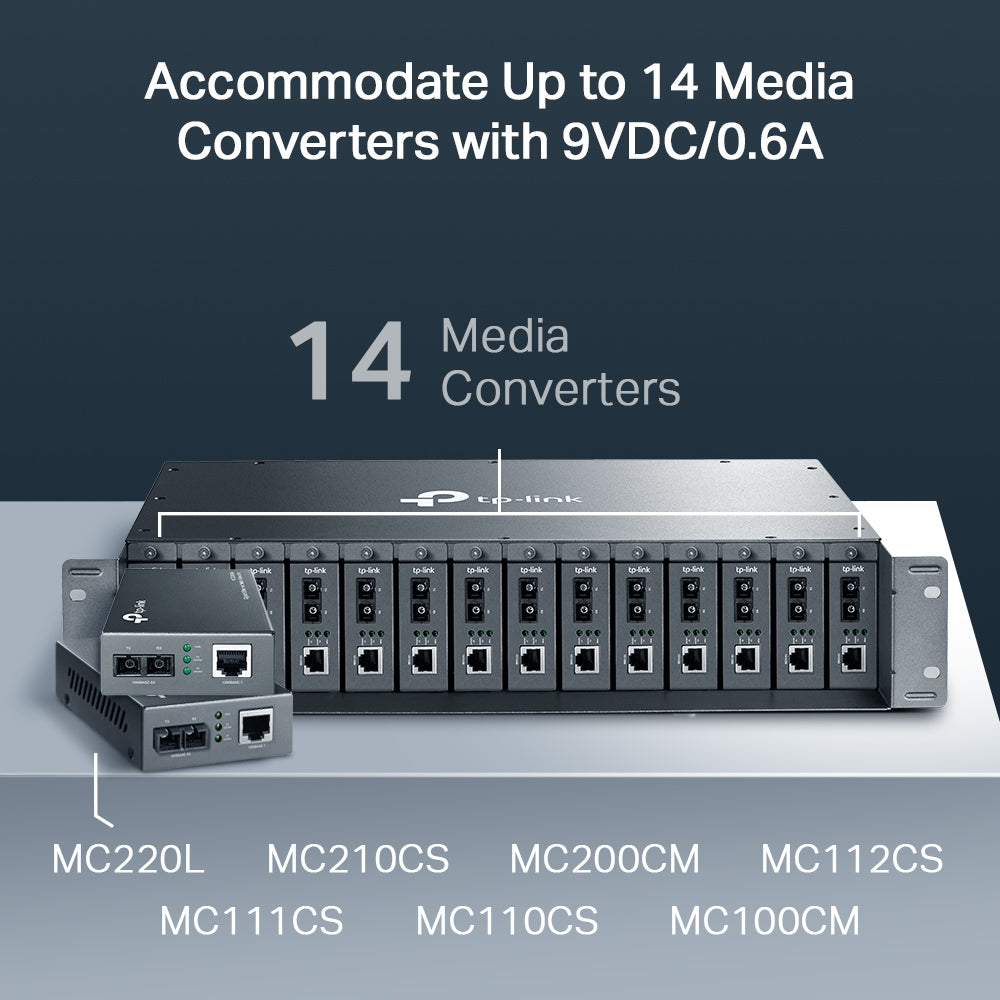

• 14-Slot Capacity:
  • Accommodates up to 14 media converters, allowing for scalable network expansion.
• Centralized Power Supply:
  • Provides a single power source for all installed media converters, reducing cable clutter and simplifying installation.

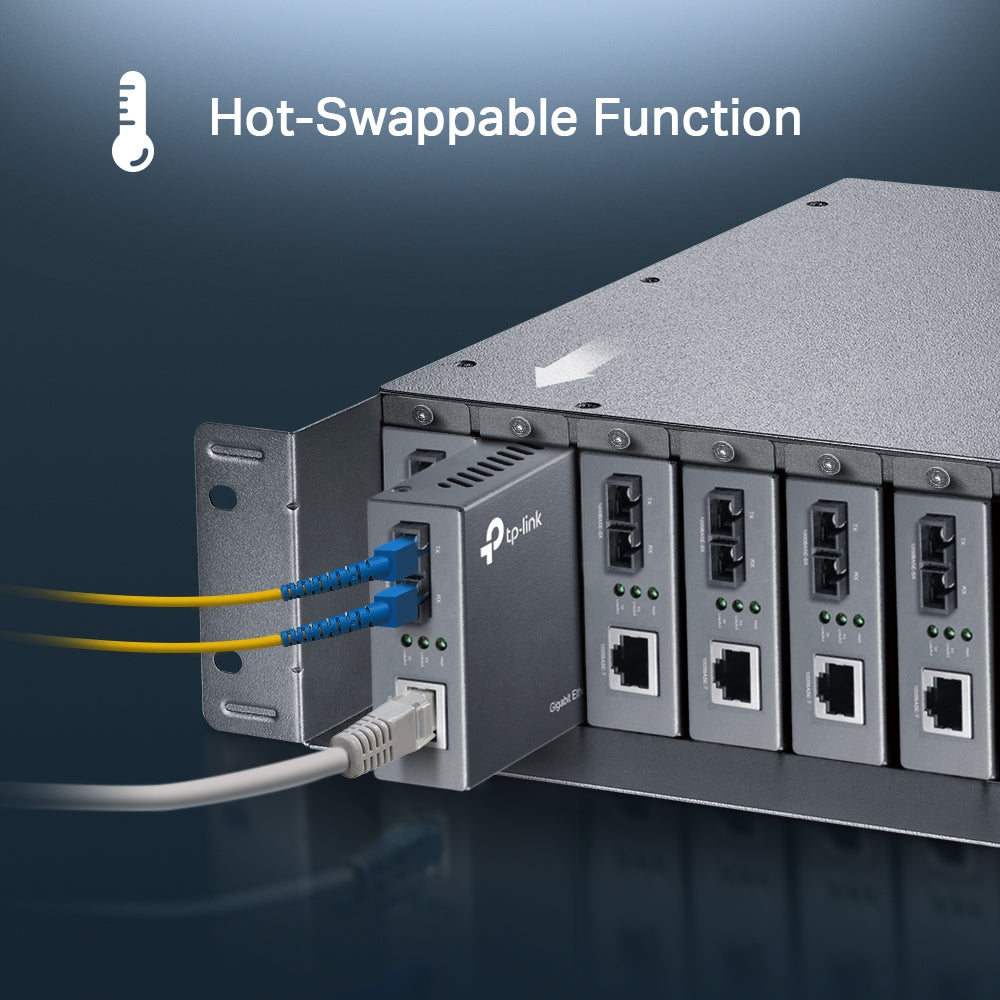

• Hot-Swappable Design:
  • Supports hot-swapping of media converters, enabling users to replace or install converters without powering down the chassis, ensuring uninterrupted operation.

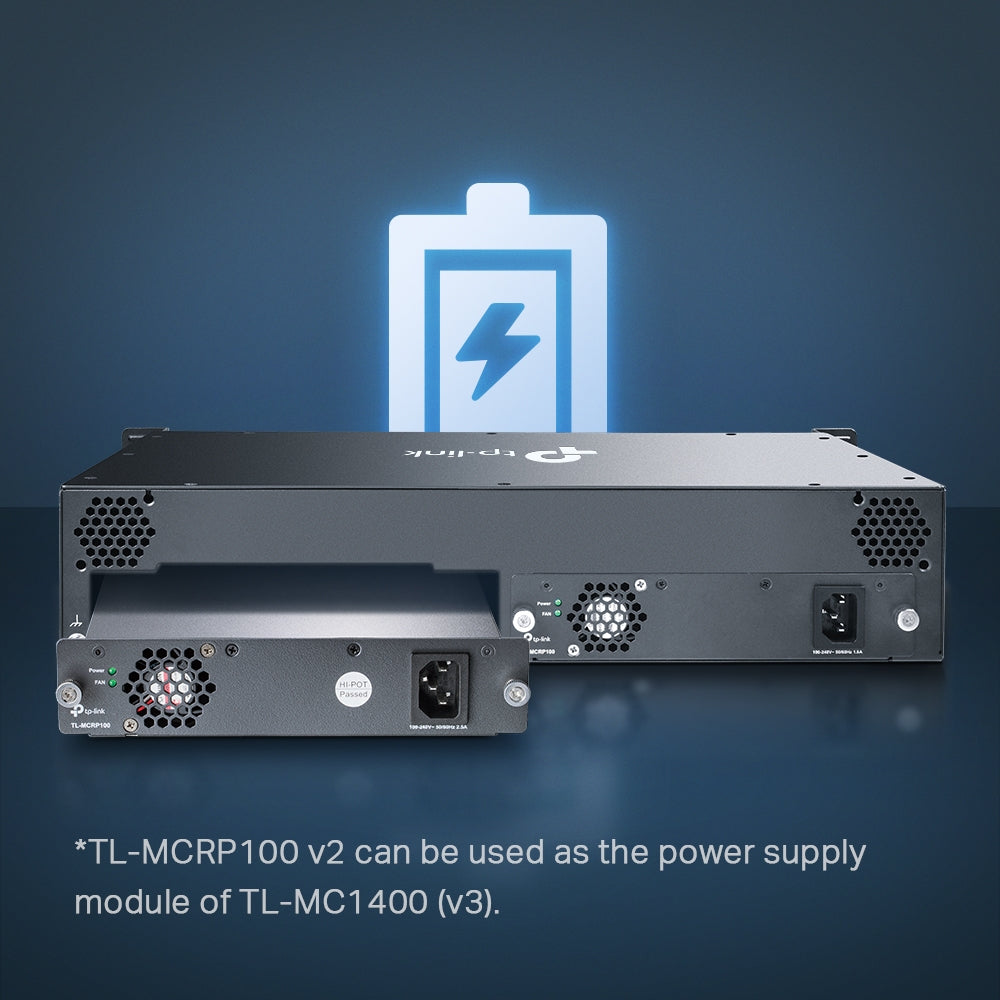

• Redundant Power Supply Option:
  • An optional redundant power supply can be added to ensure continuous operation and reliability in critical applications.

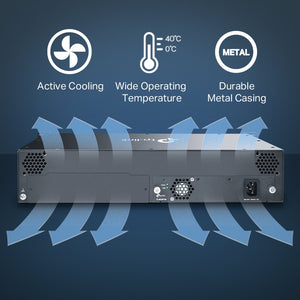

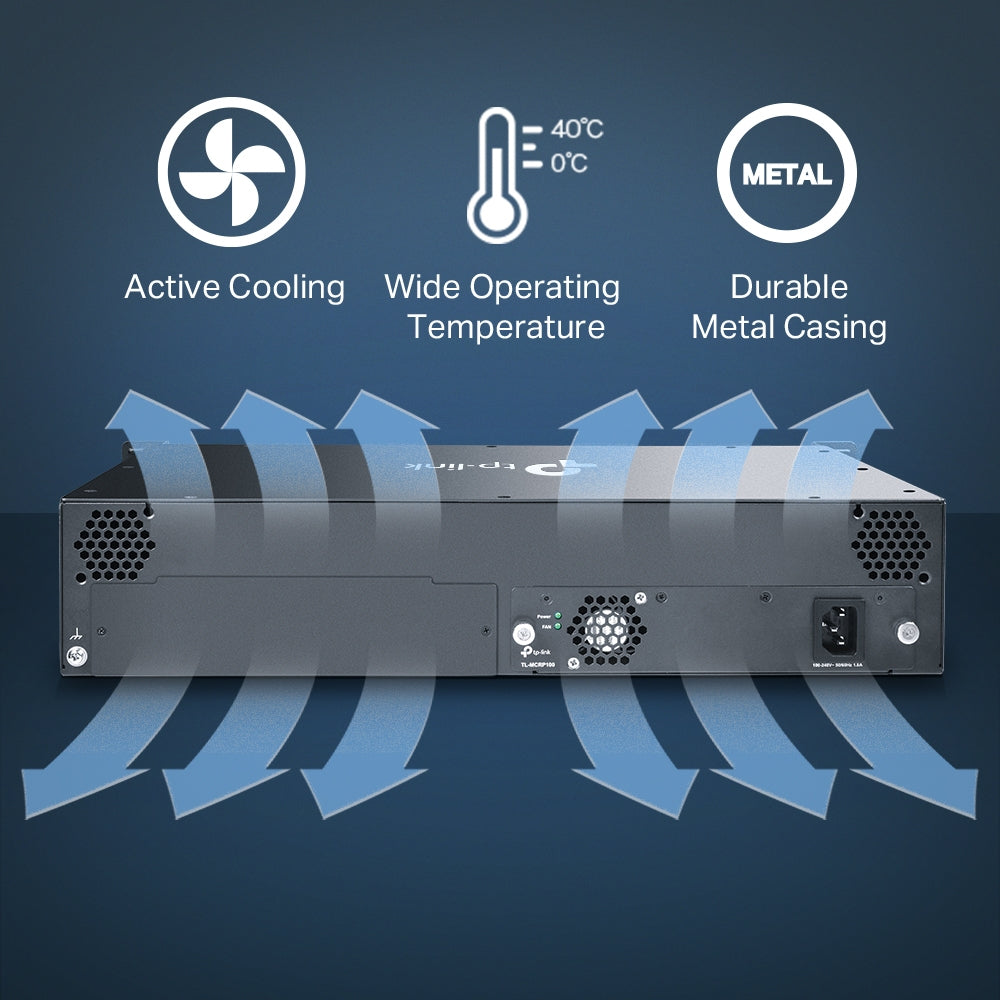

• Cooling System:
  • Equipped with two internal cooling fans to maintain optimal operating temperatures and extend the lifespan of the components.

Technical Specifications

• Model: TP-Link TL-MC1400
• Power Supply:
  • Input: 100-240VAC, 50/60Hz
  • Output: 14 x 9VDC/0.6A
• Dimensions:
  • Approximately 19.0 x 14.1 x 3.4 inches (482 x 358 x 86 mm), standard 19-inch rackmount design.
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F).
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F).
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing.
• Fan Quantity:
  • Two internal cooling fans for enhanced ventilation.
