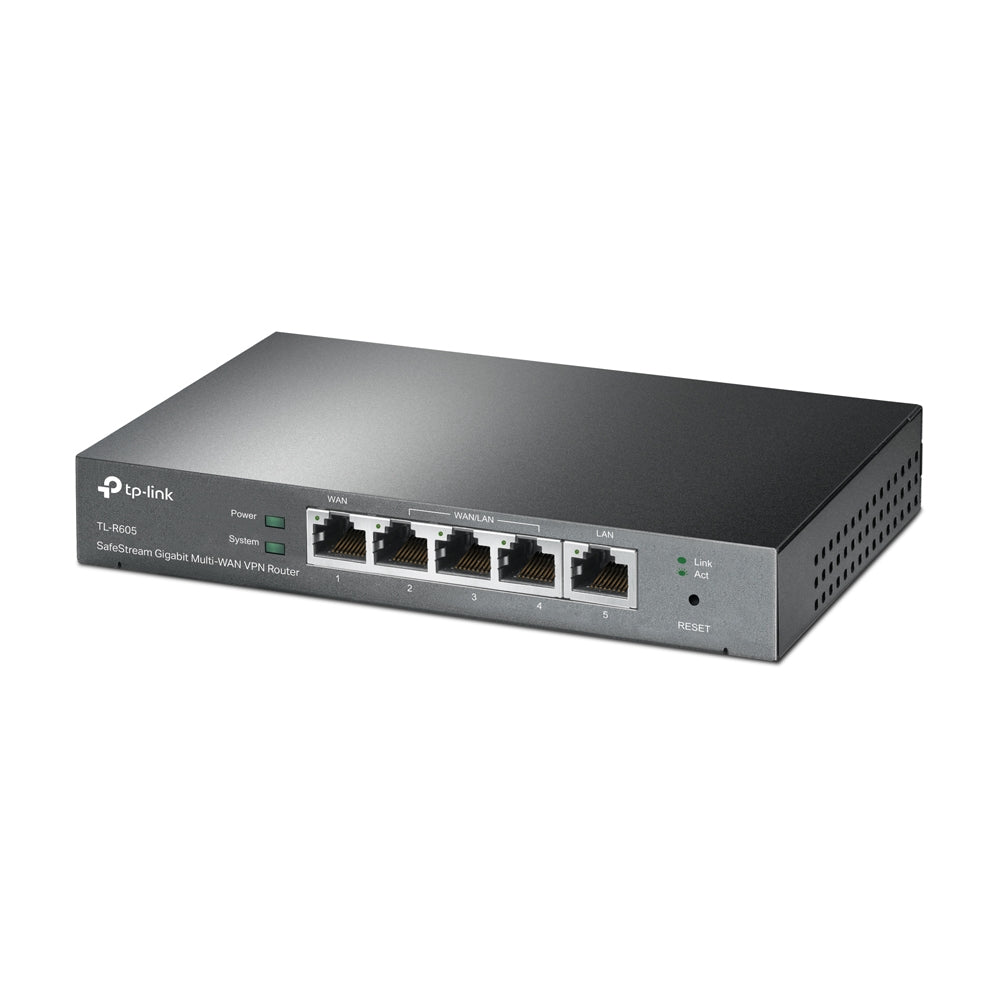

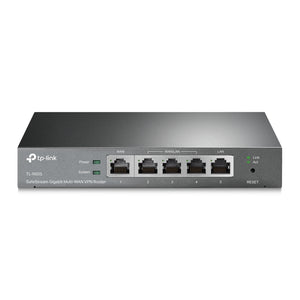

TP-Link TL-R605 SafeStream Gigabit Multi-WAN VPN Router

The TP-Link TL-R605 is a Gigabit Multi-WAN VPN router designed to provide secure and reliable internet connectivity for small to medium-sized businesses. It features advanced load balancing capabilities, multiple WAN ports, and robust security features, making it suitable for various networking needs.

Key Features

• Multi-WAN Support:

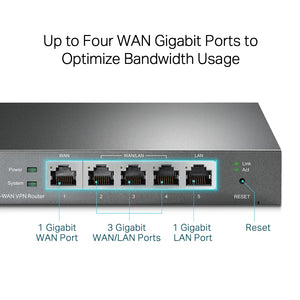

  • Equipped with 1 fixed Gigabit WAN port, 1 fixed Gigabit LAN port, and 3 interchangeable WAN/LAN ports, allowing for up to four WAN connections. This setup optimizes bandwidth usage and ensures redundancy for uninterrupted internet access.
• Load Balancing:
  • The router's load balancing function distributes data streams according to the bandwidth availability of each WAN connection, enhancing overall network performance and reliability.
• Secure VPN Capabilities:
  • Supports multiple VPN protocols including IPSec, PPTP, L2TP, and OpenVPN, enabling secure remote access and site-to-site connectivity. It can manage up to 20 LAN-to-LAN IPSec connections, 16 OpenVPN, 16 L2TP, and 16 PPTP connections.
• Advanced Security Features:
  • Includes a SPI firewall, IP/MAC/URL filtering, and application layer gateway (ALG) support for protocols like FTP and SIP, ensuring protection against external threats.
• User-Friendly Management:
  • The web-based interface allows for easy configuration and monitoring of network settings, making it accessible for users of all technical levels.

Technical Specifications

• Model: TP-Link TL-R605
• Ports:
  • 1 x Gigabit WAN port
  • 1 x Gigabit LAN port
  • 3 x Gigabit WAN/LAN ports (interchangeable)
• Power Supply:

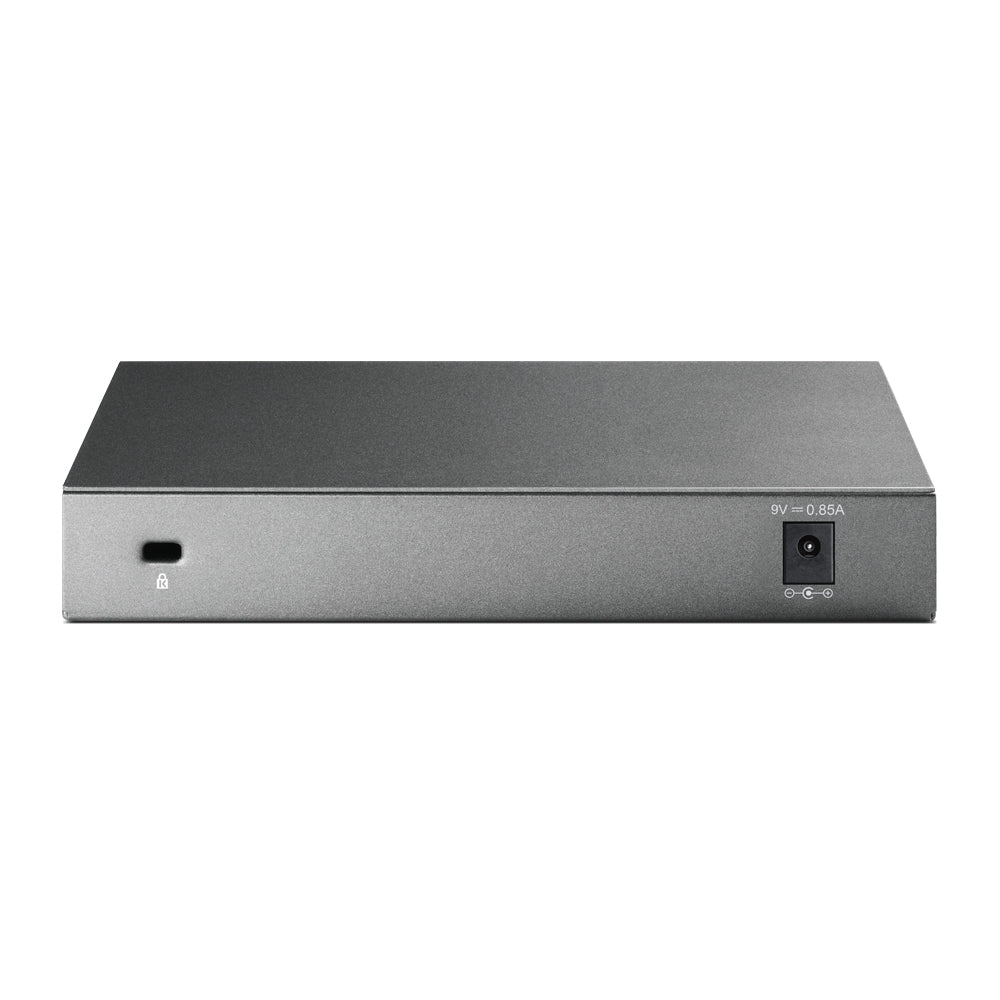

  • External power adapter (9V/0.85A)
• Flash Memory:
  • SPI 16MB
• DRAM:
  • 128MB
• Dimensions:
  • Approximately 158 x 101 x 25 mm (6.2 x 4.0 x 1.0 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing

Performance Metrics

• Concurrent Sessions:
  • Supports up to 25,000 concurrent sessions.
• IPSec VPN Throughput:
  • Up to 41.5 Mbps.
