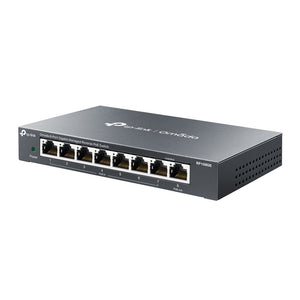

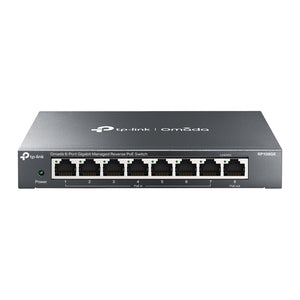

TP-Link TL-RP108GE 8-Port Gigabit Managed Reverse PoE Switch

The TP-Link TL-RP108GE is an 8-port managed reverse PoE switch designed for efficient network management and power delivery. It features seven PoE input ports that allow it to receive power from PoE injectors, making it suitable for various applications, including powering devices like IP cameras and wireless access points.

Key Features

• Port Configuration:
  • 7 x 10/100/1000Mbps RJ45 PoE input ports for receiving power and data.
  • 1 x 10/100/1000Mbps RJ45 PoE output port for powering downstream devices.
• Power Over Ethernet (PoE):
  • Supports passive PoE with input voltages of 24V or 48V, allowing flexibility in power source configurations.
• Robust Performance:
  • Offers a switching capacity of 16 Gbps and a packet forwarding rate of 11.9 Mpps, ensuring high performance for data-intensive applications.
• Advanced Networking Features:
  • Supports VLANs (up to 32), Quality of Service (QoS), IGMP snooping, port mirroring, and more, enhancing network management and traffic prioritization.
• Durable Design:
  • Built with a metal chassis for durability and reliability in various environments, operating within a temperature range of 0°C to +40°C.

Technical Specifications

• Model: TP-Link TL-RP108GE
• Ports:
  • 7 x Gigabit RJ45 PoE input ports
  • 1 x Gigabit RJ45 PoE output port
• Power Supply Options:
  • Passive PoE input (24V/48V)

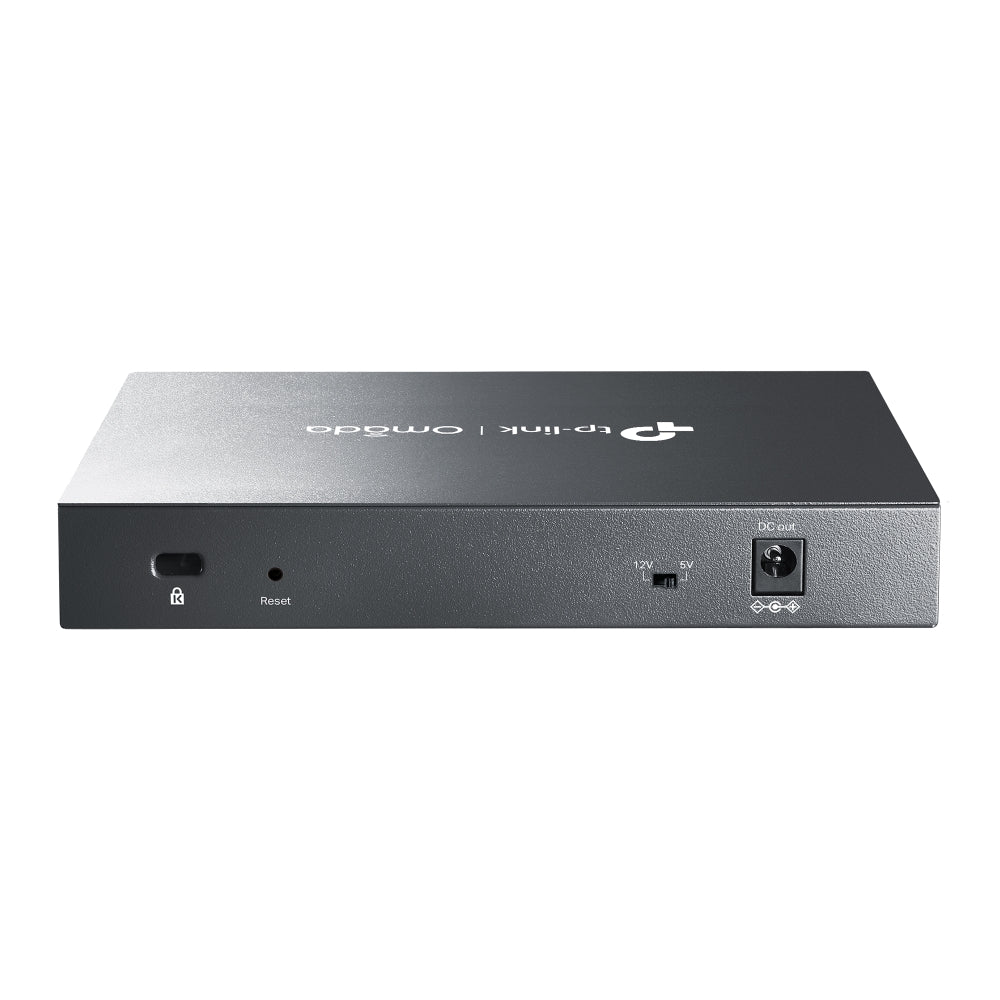

  • DC output port supporting both 5V and 12V.
• Switching Capacity:
  • 16 Gbps
• Packet Forwarding Rate:
  • 11.9 Mpps
• MAC Address Table Size:
  • Supports up to 4,000 entries
• Jumbo Frame Support:
  • Up to 16KB
• Dimensions:
  • Approximately 158 x 99.1 x 25 mm (6.2 x 3.9 x 1.0 in)
• Power Consumption:
  • Maximum of approximately 32.74W when fully loaded with powered devices.

Management Features

• Web management interface for configuration and monitoring.
• Supports various Layer 2 features including:
  • VLAN tagging and configuration
  • Static link aggregation
  • Rate limiting
  • Storm control
