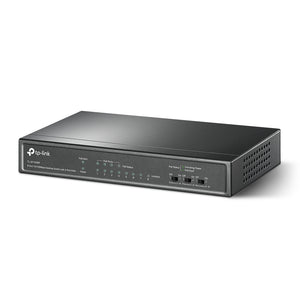

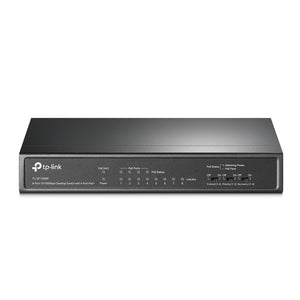

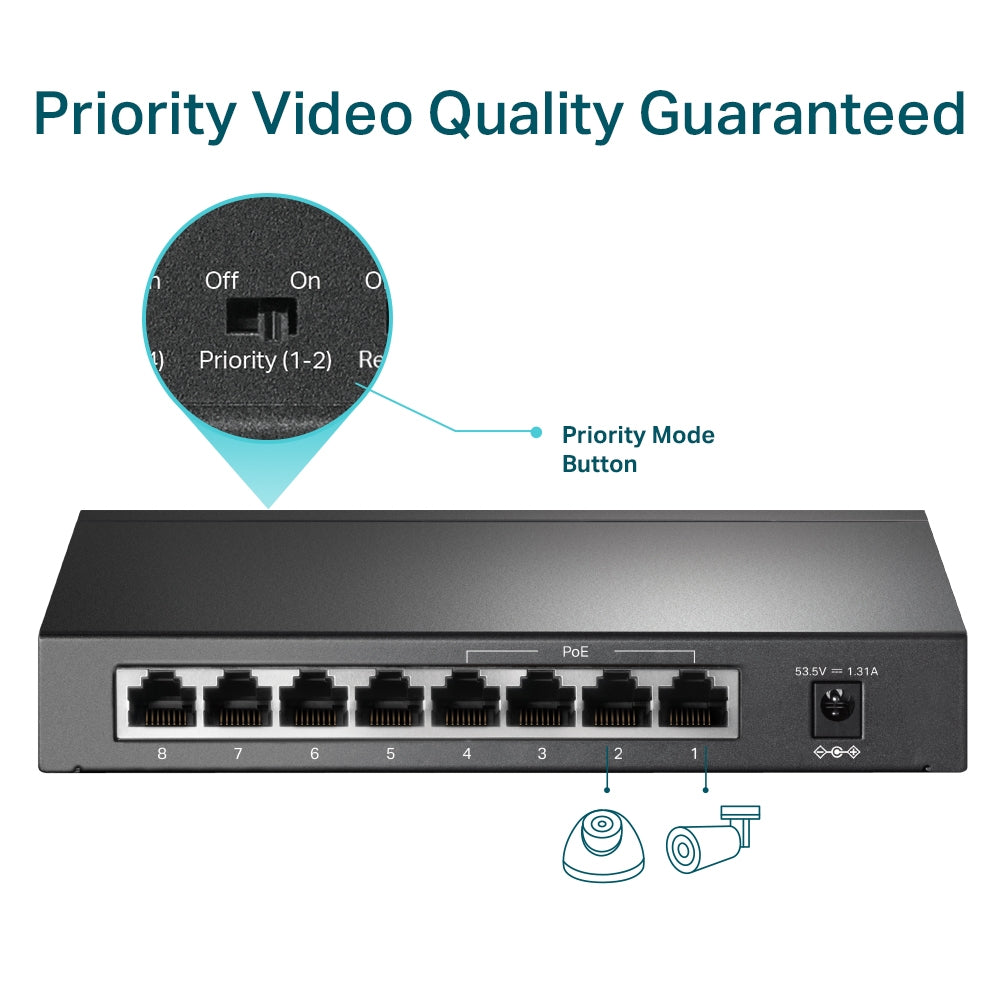

TP-Link TL-SF1008P 8-Port PoE Switch

The TP-Link TL-SF1008P is an 8-port unmanaged desktop switch that features 4 Power over Ethernet (PoE) ports, designed to provide both data and power to connected devices over a single cable. This switch is ideal for expanding networks in small offices, homes, or surveillance systems where power outlets are limited.

Key Features

• Port Configuration:
  • 8 x 10/100 Mbps RJ45 ports, with 4 of these supporting PoE (IEEE 802.3af), allowing for the simultaneous transmission of data and power.
• PoE Power Budget:

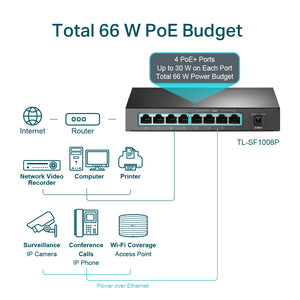

  • Each PoE port can deliver up to 15.4W, with a total PoE power budget of 66W across all PoE ports, making it suitable for powering devices like IP cameras, access points, and VoIP phones.
• Easy Installation:

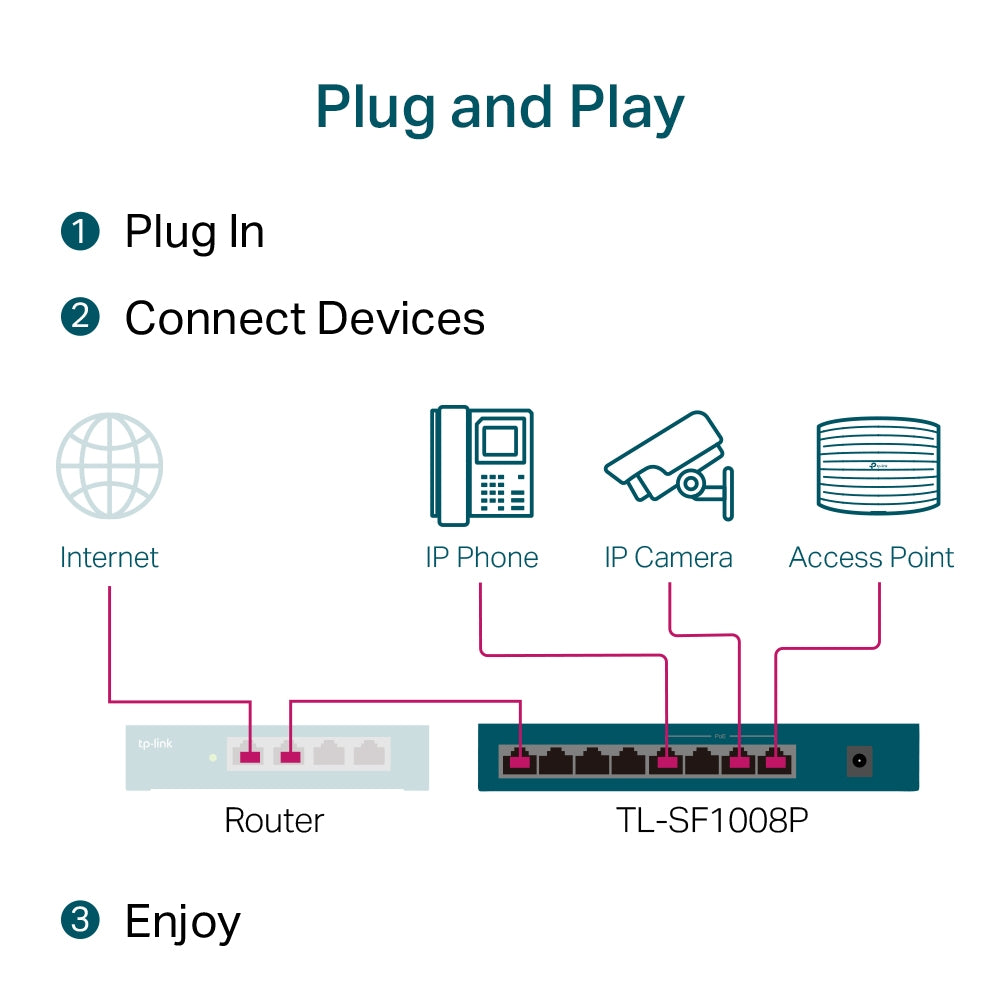

  • The TL-SF1008P requires no configuration, allowing for plug-and-play installation. Its compact design makes it easy to set up on a desktop or mount on a wall.
• Fanless Design:
  • Operates silently due to its fanless design, making it suitable for noise-sensitive environments.
• Extended Transmission Range:

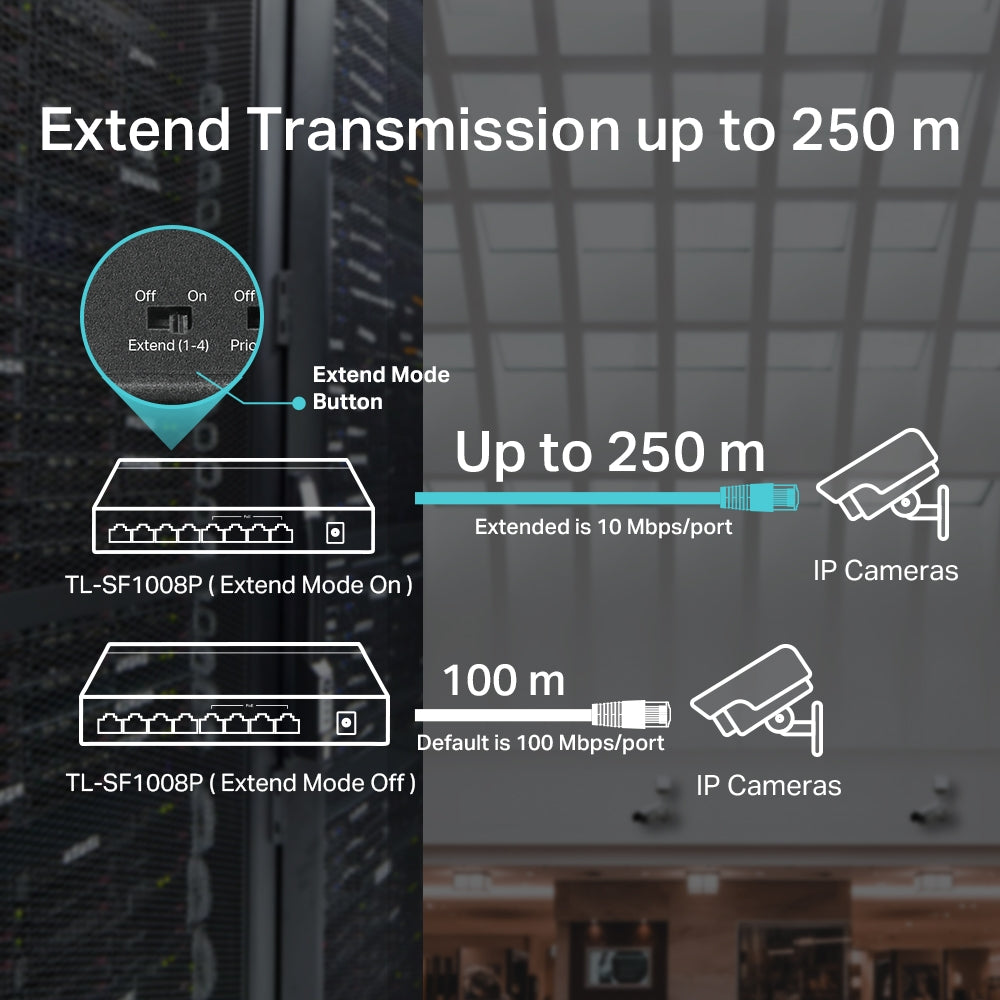

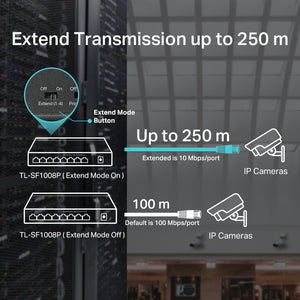

  • Supports an extended range of up to 250 meters in Extend Mode (though speeds will be reduced to 10 Mbps), which is beneficial for installations in larger areas.

Technical Specifications

• Model: TP-Link TL-SF1008P
• Ports:

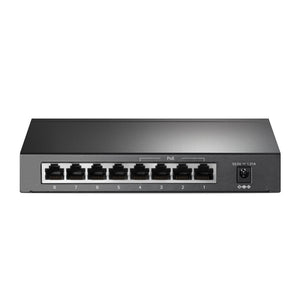

  • 8 x 10/100 Mbps RJ45 ports (4 PoE ports)
• Power Supply:
  • External power adapter (Output: 48V DC / 1.25A)
• Power Consumption:
  • Maximum of approximately 60.2W when fully loaded with powered devices.
• Dimensions:
  • Approximately 171 x 98 x 27 mm (6.7 x 3.9 x 1.1 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing

Applications

The TL-SF1008P is particularly well-suited for:

• IP surveillance systems.
• Connecting VoIP phones.
• Powering wireless access points.Expanding home or office networks where additional power outlets are not available.
