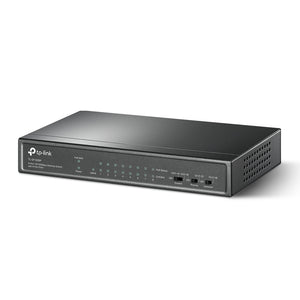

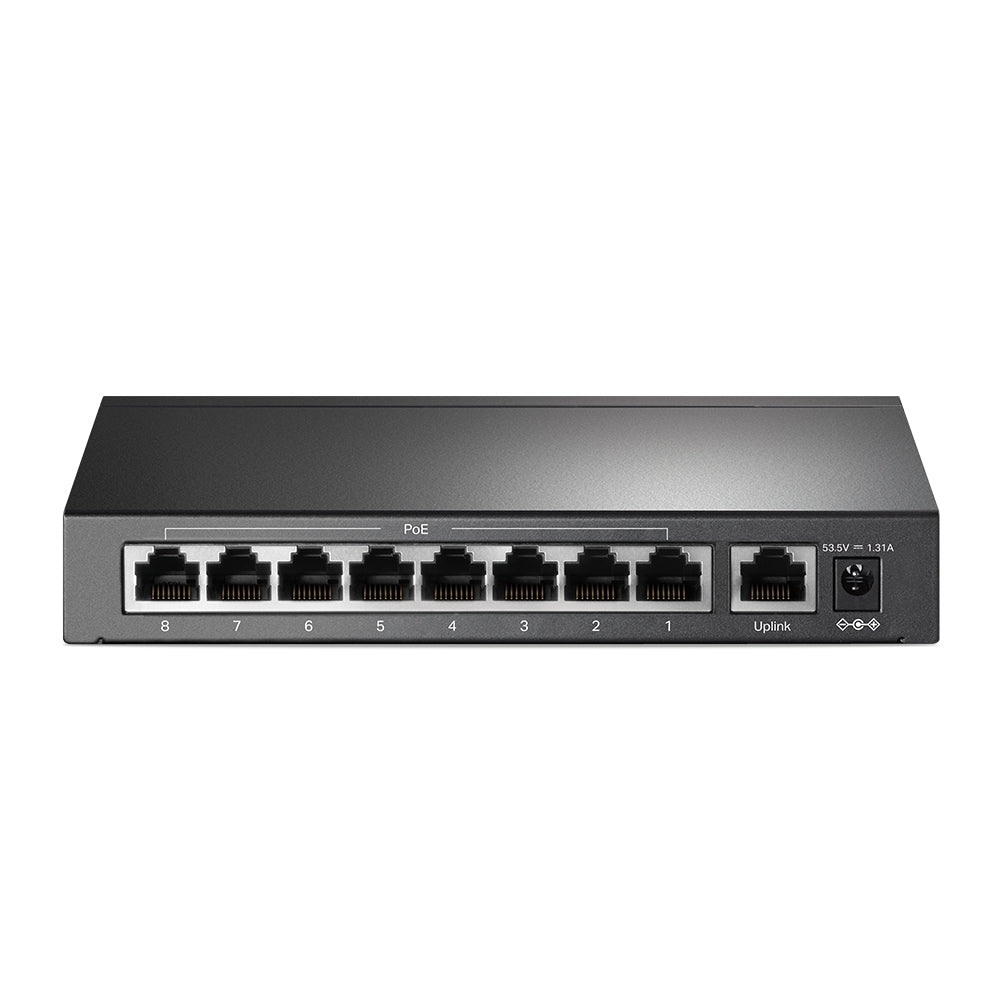

TP-Link TL-SF1009P 9-Port PoE Switch

The TP-Link TL-SF1009P is a 9-port unmanaged desktop switch that features 8 Power over Ethernet (PoE+) ports. This switch is designed to provide both data and power to connected devices, making it ideal for applications such as IP cameras, wireless access points, and VoIP phones in small to medium-sized networks.

Key Features

• Port Configuration:
  • 9 x 10/100 Mbps RJ45 ports, with 8 ports supporting PoE+ (IEEE 802.3af/at), allowing for simultaneous data and power transmission over a single cable.
• PoE Power Budget:

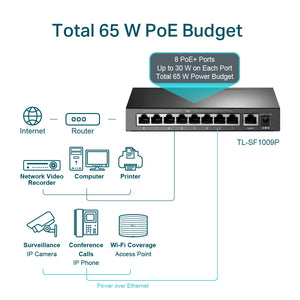

  • Each PoE port can deliver up to 30W, with a total PoE power budget of 65W, enabling the connection of multiple powered devices without the need for additional power sources.
• Extended Transmission Range:

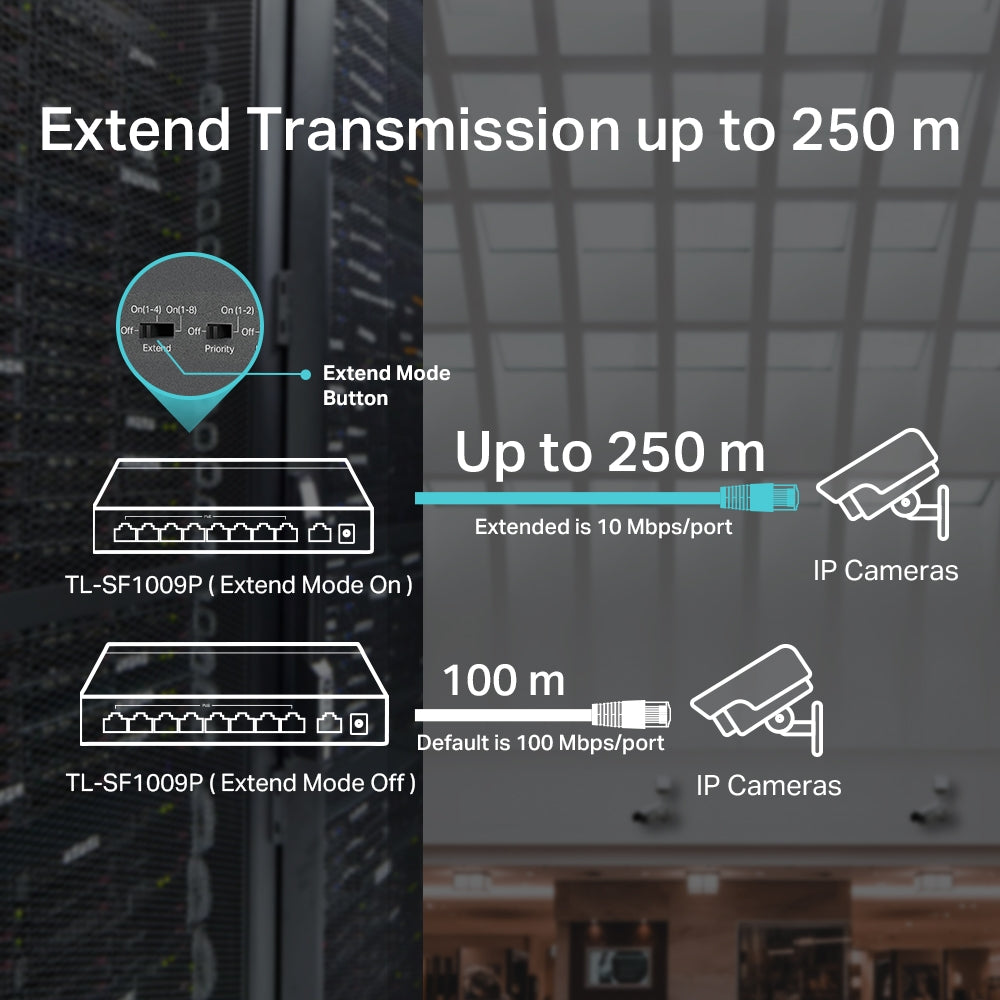

  • Supports an extended range of up to 250 meters in Extend Mode, though speeds will be reduced to 10 Mbps for ports in this mode, which is beneficial for installations in larger areas.
• Priority Mode:

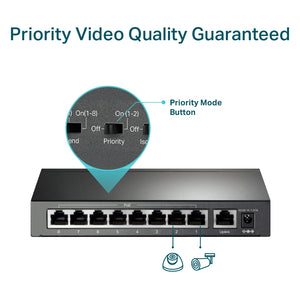

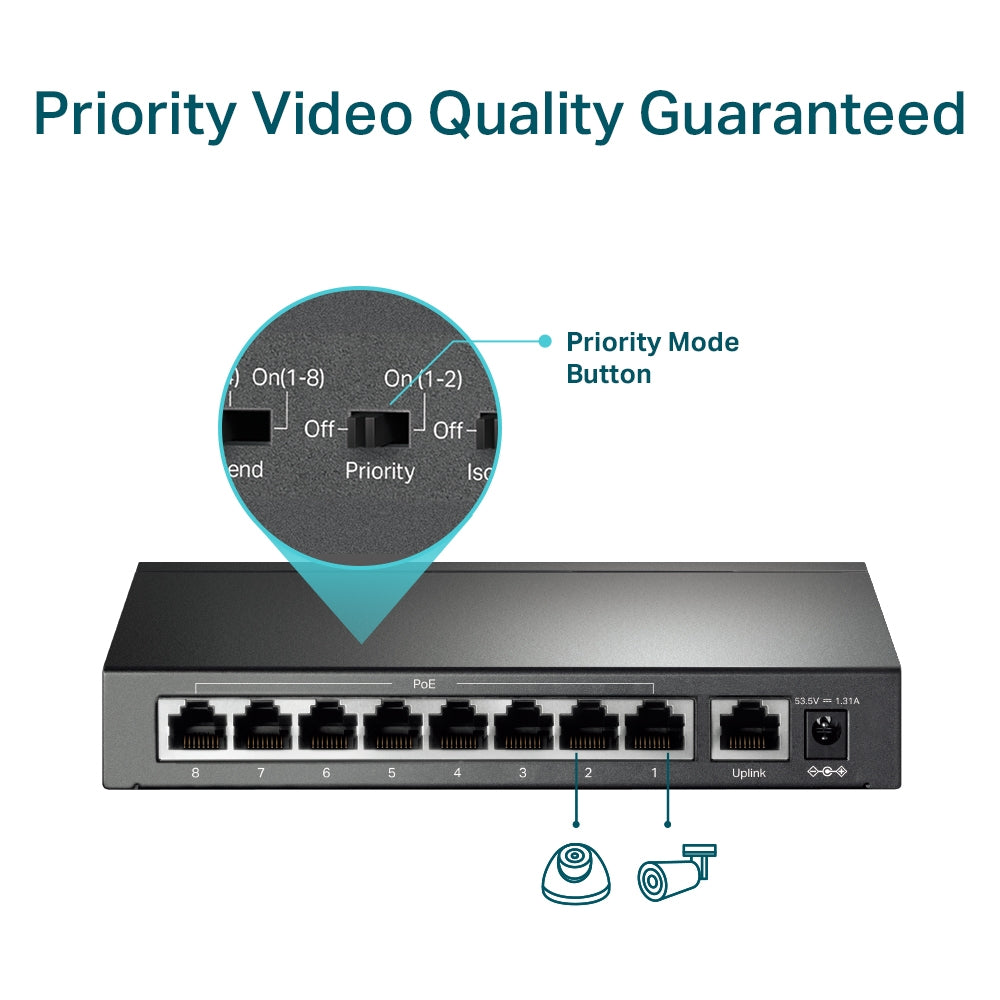

  • Features a one-touch Priority Mode that ensures higher priority for ports 1 and 2, which is essential for sensitive applications such as video monitoring.
• Isolation Mode:
  • Allows one-click client traffic separation for enhanced security and performance within the network.

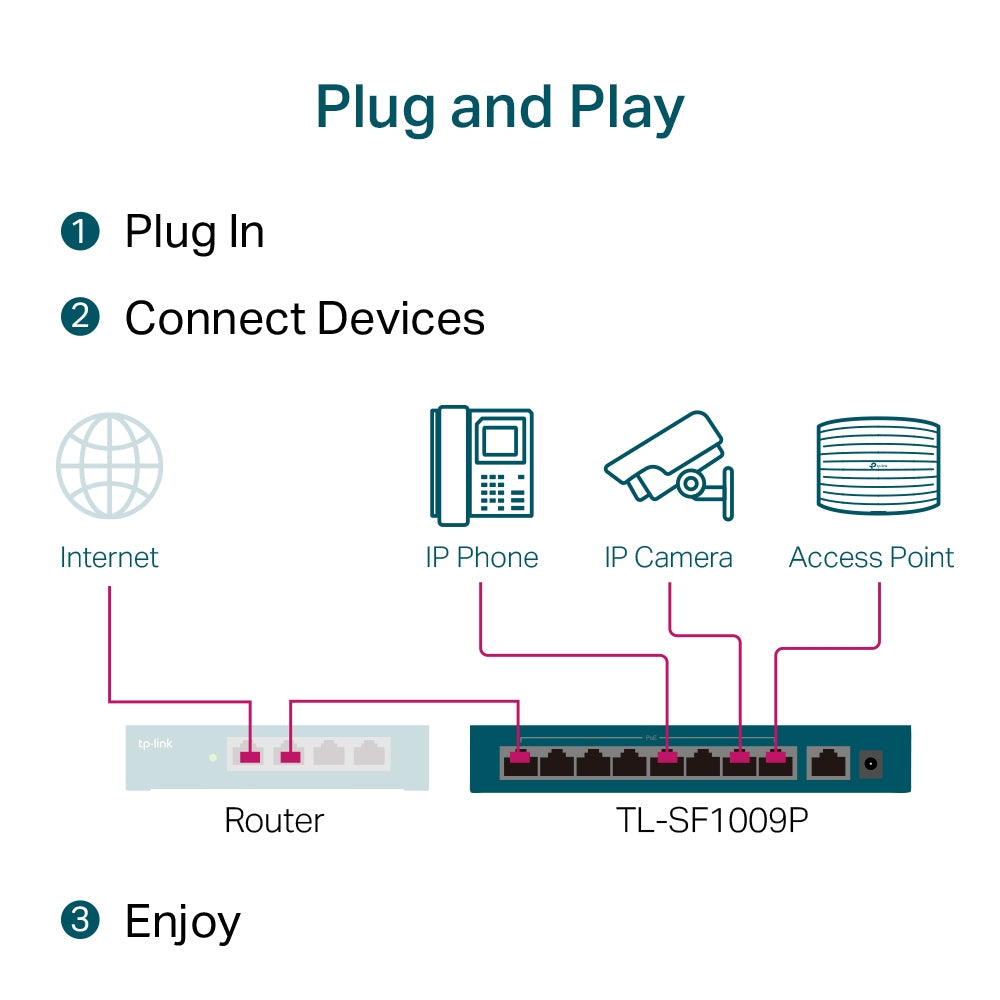

• Plug-and-Play Installation:

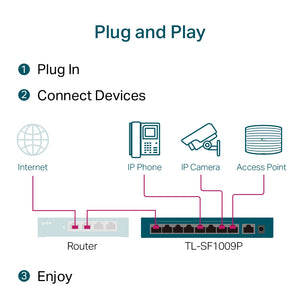

  • Easy to set up with no configuration required, making it user-friendly for quick deployments.
• Fanless Design:
  • Operates quietly due to its fanless design, making it suitable for office environments.

Technical Specifications

• Model: TP-Link TL-SF1009P
• Ports:
  • 9 x 10/100 Mbps RJ45 ports (8 x PoE+ ports)
• Power Supply:
  • External power adapter (Output: 53.5V DC / 1.31A)
• Switching Capacity:
  • 1.8 Gbps
• Packet Forwarding Rate:
  • Up to 1.3392 Mpps
• MAC Address Table Size:
  • Supports up to 2,000 MAC addresses
• Jumbo Frame Support:
  • Up to 2 KB
• Dimensions:
  • Approximately 171 x 98 x 27 mm (6.7 x 3.9 x 1.1 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing

Applications

The TL-SF1009P is particularly well-suited for:

• IP surveillance systems.
• Connecting VoIP phones.
• Powering wireless access points.
• Expanding home or office networks where additional power outlets are not available.
