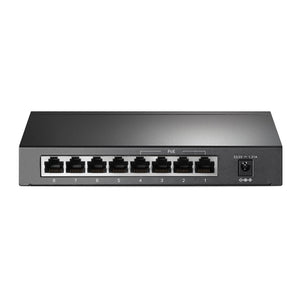

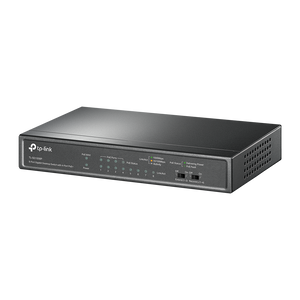

TP-Link TL-SG1008P 8-Port Gigabit PoE Switch

The TP-Link TL-SG1008P is an 8-port unmanaged Gigabit switch designed for small to medium-sized networks. It features 4 Power over Ethernet (PoE+) ports, allowing users to power devices such as IP cameras, VoIP phones, and wireless access points directly through the network cable, simplifying installation and reducing cable clutter.

Key Features

• Port Configuration:
  • 8 x 10/100/1000 Mbps RJ45 ports, with 4 ports supporting PoE+ (IEEE 802.3af/at), enabling simultaneous data and power transmission.

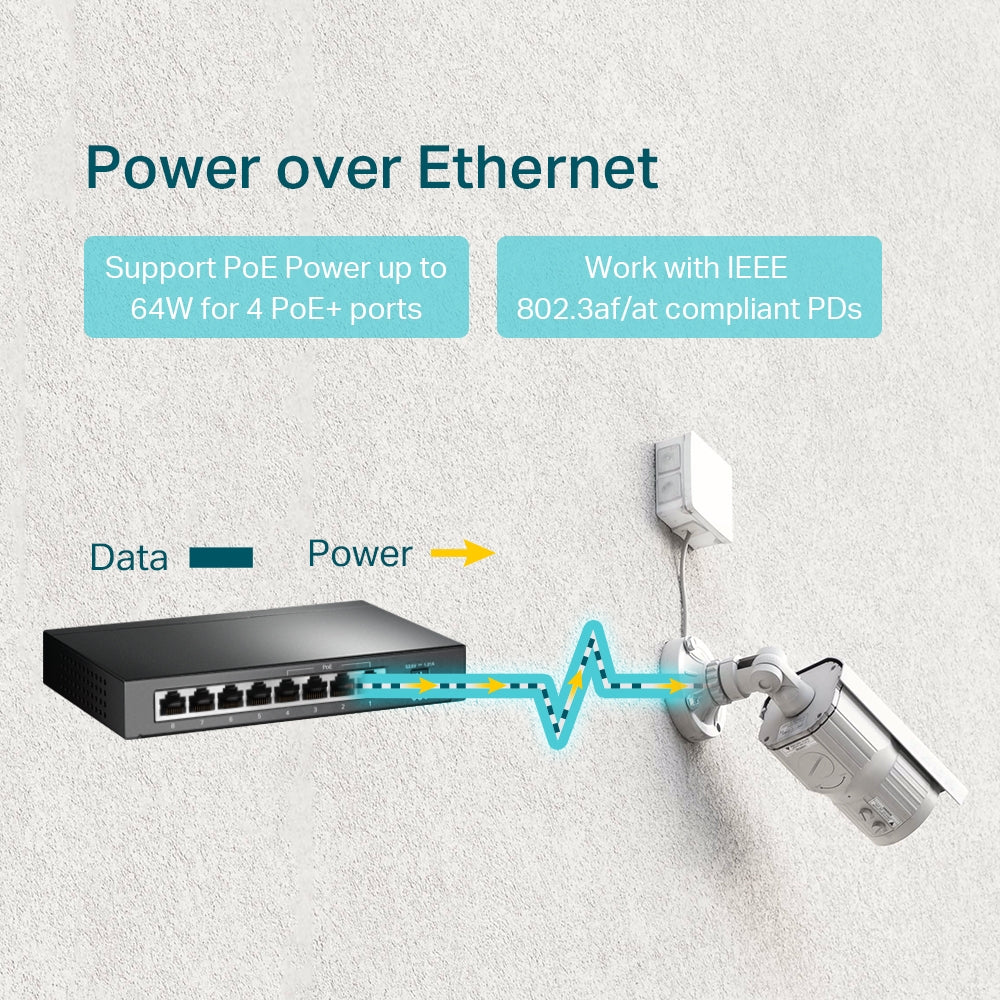

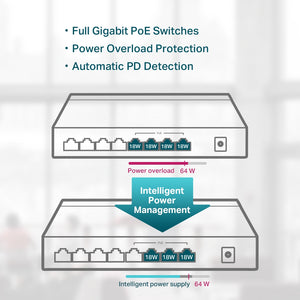

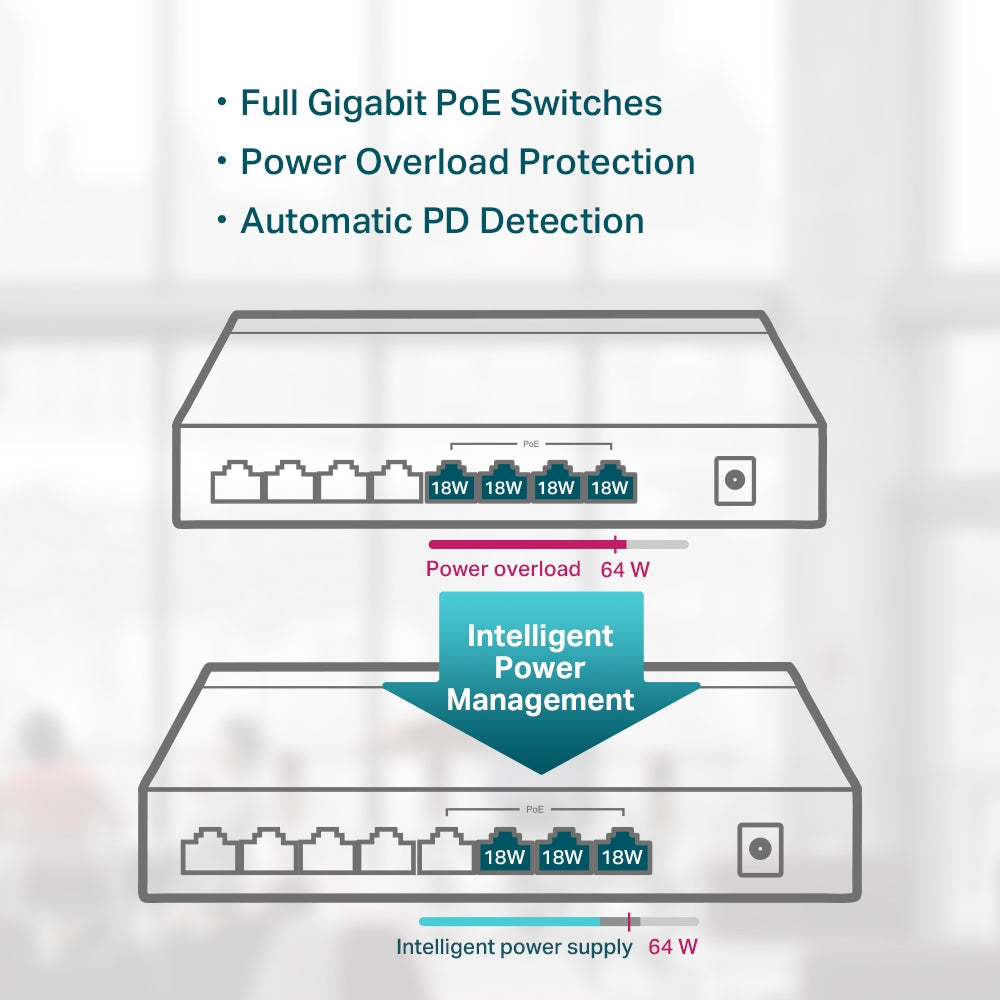

• PoE Power Budget:
  • Each PoE port can deliver up to 30W, with a total PoE power budget of 65W, making it suitable for powering multiple devices without requiring additional power sources.
• Plug and Play:

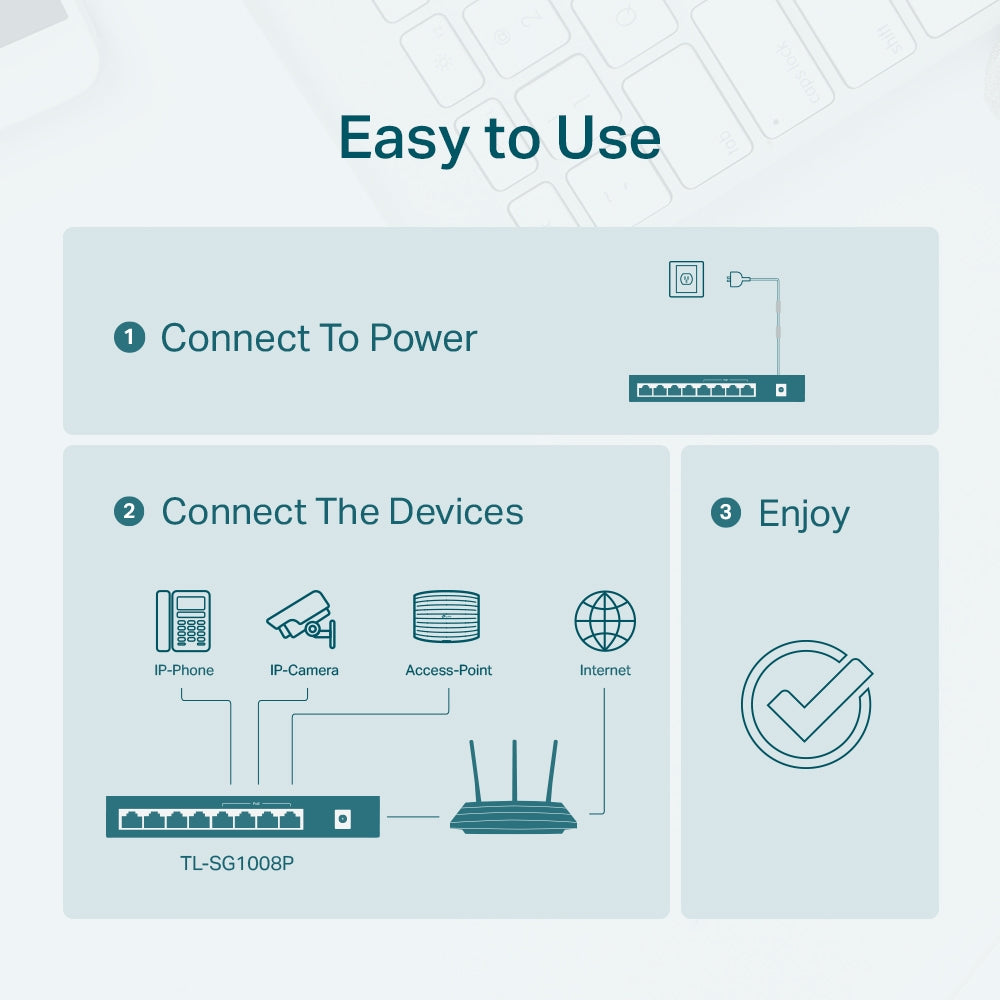

  • Easy installation with no configuration needed; simply plug in the devices and start using it.
• Extended Transmission Range:
  • Supports an extended range of up to 250 meters in Extend Mode, although speeds will be reduced to 10 Mbps for ports in this mode, ideal for long-distance installations.
• Fanless Design:
  • Operates silently due to its fanless design, making it suitable for office environments where noise is a concern.

Technical Specifications

• Model: TP-Link TL-SG1008P
• Ports:
  • 8 x 10/100/1000 Mbps RJ45 ports (4 PoE+ ports)
• Power Supply:
  • External power adapter (Output: 48V DC / 1.25A)
• Switching Capacity:
  • 16 Gbps
• Packet Forwarding Rate:
  • Up to 11.904 Mpps
• MAC Address Table Size:
  • Supports up to 4,000 MAC addresses
• Dimensions:
  • Approximately 171 x 98 x 27 mm (6.7 x 3.9 x 1.1 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing

Applications

The TL-SG1008P is particularly well-suited for:

• IP surveillance systems.
• Connecting VoIP phones.

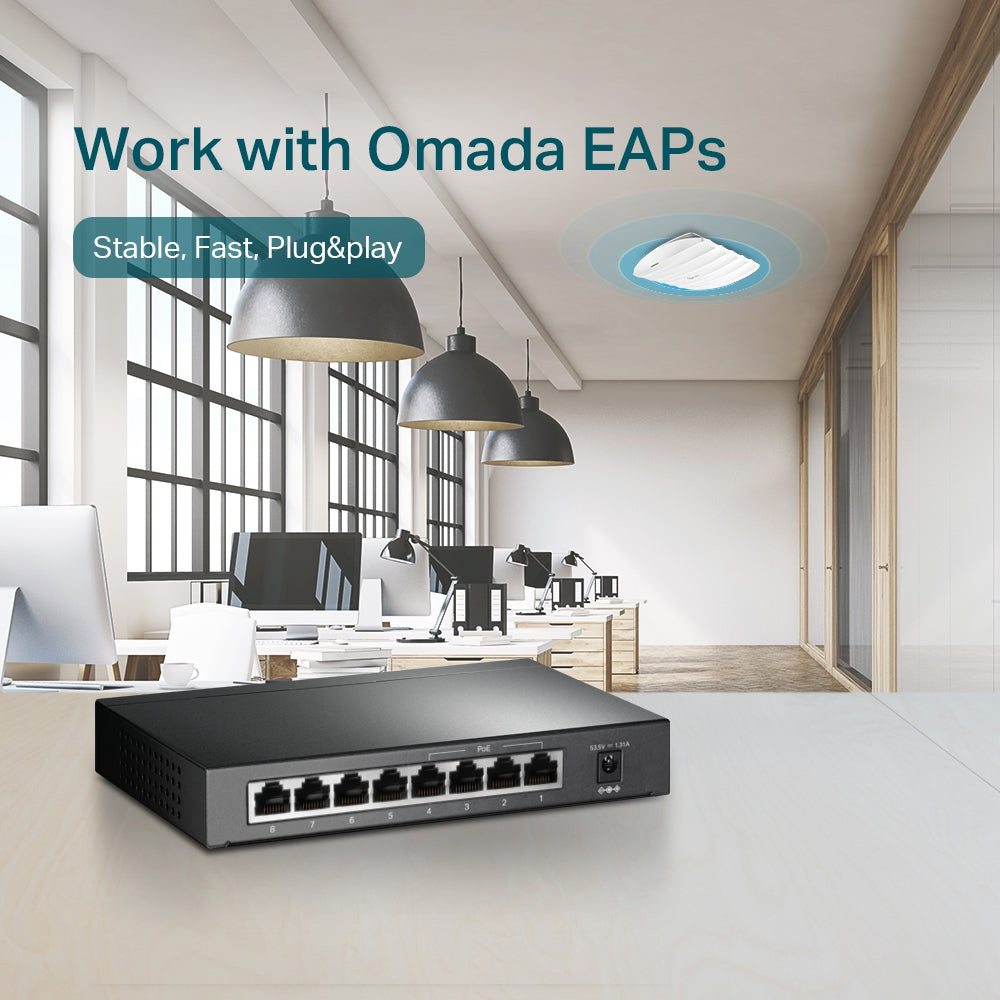

• Powering wireless access points.
• Expanding home or office networks where additional power outlets are not available.
