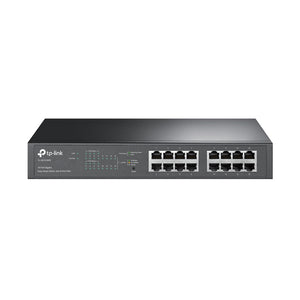

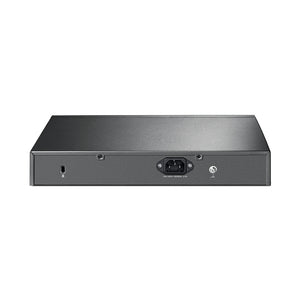

TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch

The TP-Link TL-SG1016PE is a 16-port Gigabit Easy Smart switch that features 8 PoE+ ports, designed to provide both data and power to connected devices over a single cable. This switch is ideal for expanding home and office networks, especially for powering devices such as IP cameras, wireless access points, and VoIP phones.

Key Features

• Port Configuration:
  • 16 x 10/100/1000 Mbps RJ45 ports, with 8 ports supporting PoE+ (IEEE 802.3af/at), allowing for the simultaneous transmission of data and power.
• PoE Power Budget:
  • Each PoE port can deliver up to 30W, with a total PoE power budget of 110W, enabling the connection of multiple powered devices without needing additional power sources.
• Performance:
  • Switching Capacity: 32 Gbps
  • Forwarding Rate: 23.8 Mpps
  • MAC Address Table Size: Supports up to 8K MAC addresses
  • Jumbo Frame Support: Up to 9 KB
• Management Features:
  • The switch includes a web-based management interface that simplifies configuration and monitoring.
  • Supports advanced features such as VLANs (up to 128 VLANs), IGMP snooping, port mirroring, and QoS for traffic prioritization.
• Easy Installation:
  • Plug-and-play design with auto MDI/MDI-X support on all ports eliminates the need for crossover cables or uplink ports.
• Durable Design:
  • The switch is rack mountable (1U height) and features a sturdy metal casing for durability in various environments.

Technical Specifications

• Model: TP-Link TL-SG1016PE
• Ports:
  • 16 x 10/100/1000 Mbps RJ45 ports (8 PoE+ ports)
• Power Supply:
  • Input: 100-240V AC, 50/60Hz
• Max Power Consumption:
  • Approximately 14.7W (no PD load) and up to 131.4W (with maximum PD load)
• Dimensions:
  • Approximately 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing

Applications

The TL-SG1016PE is particularly well-suited for:

• IP surveillance systems.
• Connecting VoIP phones.
• Powering wireless access points.
• Expanding office networks where additional power outlets are not available.
