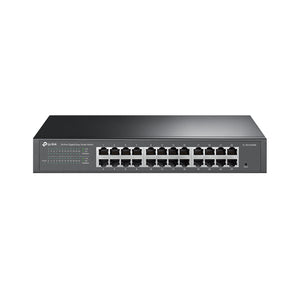

TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch

The TP-Link TL-SG1024DE is a 24-port Gigabit Easy Smart switch designed for small to medium-sized businesses seeking a reliable and efficient network solution. It combines essential management features with high performance, making it an excellent upgrade from unmanaged switches.

Key Features

• Port Configuration:
  • 24 x 10/100/1000 Mbps RJ45 ports that support auto-negotiation and auto MDI/MDIX, facilitating easy integration into existing networks.
• Performance:
  • Switching Capacity: 48 Gbps
  • Packet Forwarding Rate: 35.7 Mpps
  • MAC Address Table Size: Supports up to 8,000 MAC addresses
  • Jumbo Frame Support: Up to 9 KB, enhancing the performance of large data transfers.
• Management Features:
  • Supports VLANs (up to 128 VLANs simultaneously), IGMP Snooping, Port Mirroring, and QoS (Quality of Service) for traffic prioritization.
  • Provides network diagnostics and cable testing capabilities, helping maintain optimal performance.
• Energy Efficiency:
  • Incorporates innovative energy-efficient technology that reduces power consumption by up to 40%, making it an eco-friendly option.
• User-Friendly Interface:
  • A web-based management interface simplifies configuration and monitoring, allowing for straightforward network management without extensive technical knowledge.

Technical Specifications

• Model: TP-Link TL-SG1024DE
• Ports:
  • 24 x 10/100/1000 Mbps RJ45 ports
• Power Supply:
  • Input: 100-240VAC, 50/60Hz
• Max Power Consumption:
  • Approximately 14.86W at 220V/50Hz
• Dimensions:
  • Approximately 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing

Applications

The TL-SG1024DE is particularly well-suited for:

• Small to medium-sized business networks.
• Environments requiring simple network management with advanced features.
• Applications that demand efficient traffic management, such as video streaming and VoIP.
