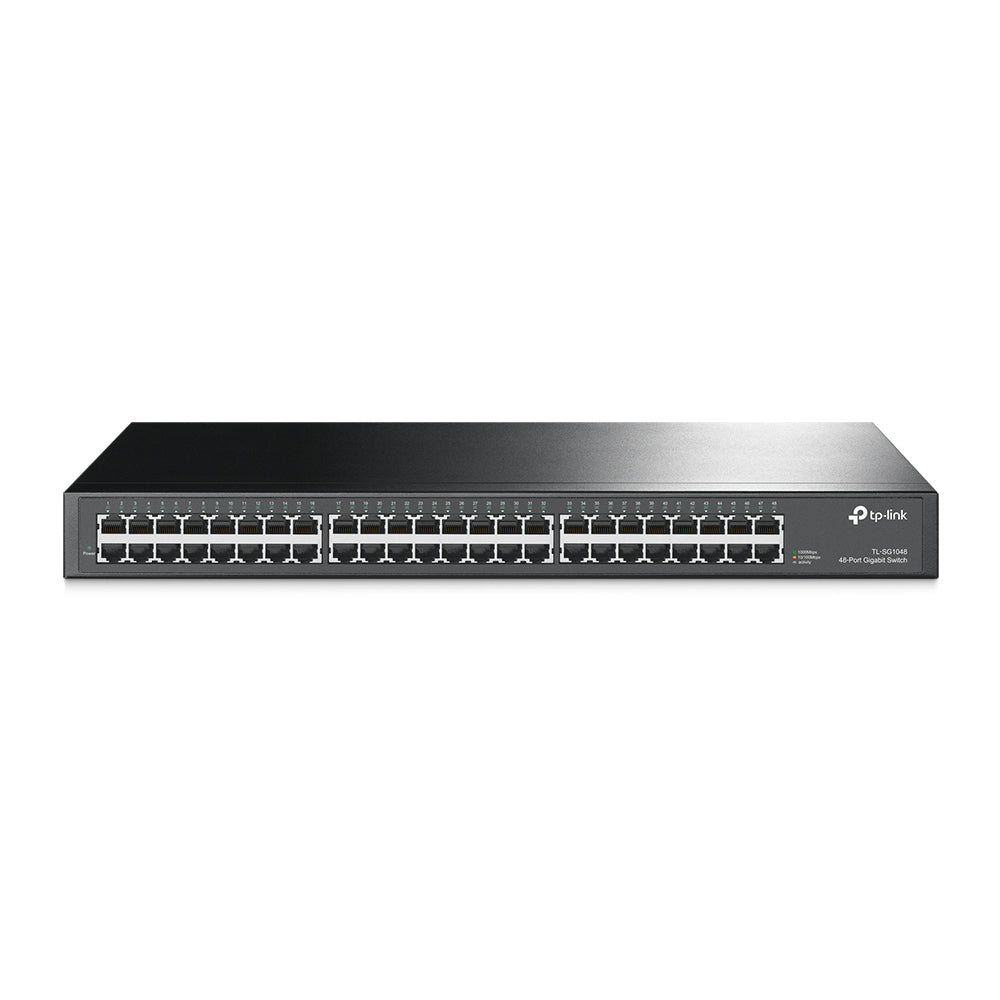

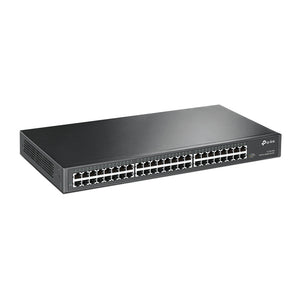

TP-Link TL-SG1048 48-Port Gigabit Rackmount Switch

The TP-Link TL-SG1048 is a 48-port Gigabit unmanaged switch designed to meet the demands of high-performance networking environments. It provides reliable connectivity for workgroups and departmental networks, making it suitable for small to medium-sized businesses.

Key Features

• Port Configuration:
  • 48 x 10/100/1000 Mbps RJ45 ports that support auto-negotiation and auto MDI/MDIX, allowing for easy plug-and-play installation without worrying about cable types.
• High Performance:
  • Switching Capacity: 96 Gbps, ensuring non-blocking wire-speed performance for maximum data throughput.
  • Packet Forwarding Rate: Up to 71.4 Mpps, facilitating efficient data handling.
  • MAC Address Table Size: Supports up to 16,000 MAC addresses, providing scalability for larger networks.
• Energy Efficiency:
  • Incorporates innovative energy-efficient technology that reduces power consumption by up to 18%, making it an eco-friendly choice for businesses.
• Robust Design:
  • Built in a standard 19-inch rack-mountable steel case, suitable for various installation environments.
  • Dimensions: Approximately 440 x 220 x 44 mm (17.3 x 8.7 x 1.73 in).
• Cooling System:
  • Equipped with 2 fans for efficient heat dissipation, ensuring stable operation even under heavy loads.

Technical Specifications

• Model: TP-Link TL-SG1048
• Ports:
  • 48 x 10/100/1000 Mbps RJ45 ports
• Power Supply:
  • Input: 100-240VAC, 50/60Hz
• Max Power Consumption:
  • Approximately 32.3W at maximum load.
• Max Heat Dissipation:
  • Approximately 110.17 BTU/h.

Applications

The TL-SG1048 is particularly well-suited for:

• Workgroup and departmental connectivity.
• Environments requiring high bandwidth and low latency, such as video conferencing and large file transfers.
• Expanding existing networks with additional ports while maintaining high performance.
