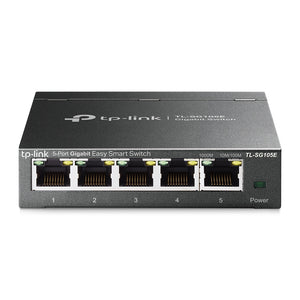

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch
Guarantee Safe Checkout
The TP-Link TL-SG105E is a 5-port Gigabit Easy Smart switch designed for small to medium-sized business networks that require simple yet effective network management. This switch offers enhanced features compared to unmanaged switches, allowing for better traffic control and monitoring.
Key Features
-
Port Configuration:

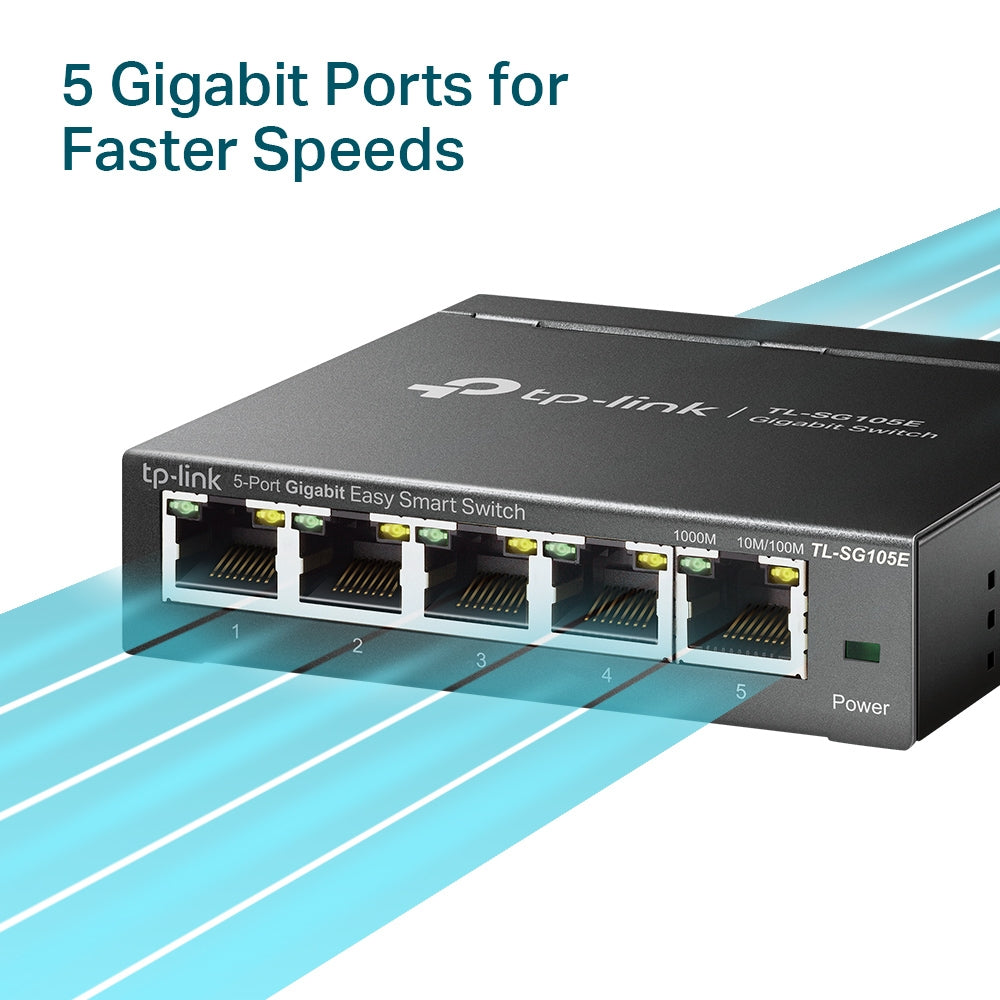

- 5 x 10/100/1000 Mbps RJ45 ports, supporting auto-negotiation and auto MDI/MDIX, which eliminates the need for crossover cables and simplifies connectivity.
-
Performance:
- Switching Capacity: 10 Gbps, providing high-speed data transfer.
- Packet Forwarding Rate: Up to 7.4 Mpps, ensuring efficient handling of network traffic.
- MAC Address Table Size: Supports up to 2,000 MAC addresses, accommodating a growing number of devices.
-
Management Features:
- Supports advanced features such as VLANs (up to 32 VLANs), IGMP Snooping, Port Mirroring, and QoS (Quality of Service) for prioritizing traffic.
- Includes cable diagnostics and loop prevention features to enhance network reliability.
-
Energy Efficiency:
- Designed with energy-efficient technology that can save up to 75% of power consumption, making it an eco-friendly solution for businesses.
-
Compact Design:

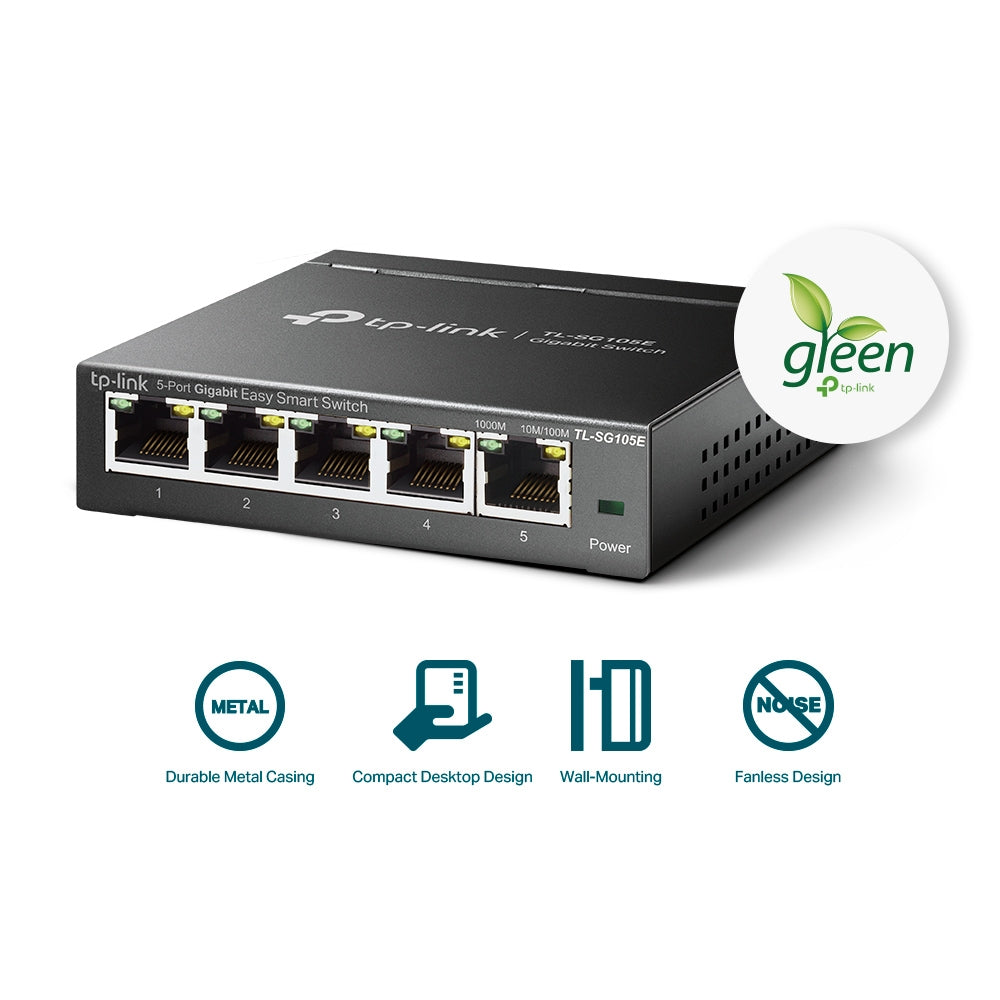

- The switch has a compact form factor (dimensions: 100 x 98 x 25 mm), making it suitable for desktop use or rack mounting in limited spaces.
Technical Specifications
- Model: TP-Link TL-SG105E
-
Ports:
- 5 x 10/100/1000 Mbps RJ45 ports
-

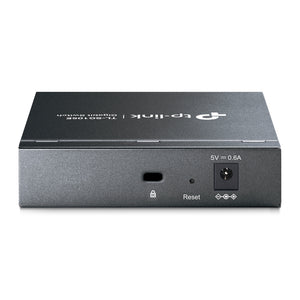

Power Supply:
- Input: 100-240VAC, 50/60Hz
-
Max Power Consumption:
- Approximately 6.42W at maximum load.
-
Operating Temperature:
- Ranges from 0°C to +40°C (32°F to +104°F)
-
Storage Temperature:
- Ranges from -40°C to +70°C (-40°F to +158°F)
-
Operating Humidity:
- Humidity levels of 10% to 90% non-condensing
Applications
The TL-SG105E is particularly well-suited for:
- Small office networks requiring basic management features.
- Environments needing efficient traffic management for applications like VoIP and video streaming.
- Expanding existing networks with additional ports while maintaining high performance.
