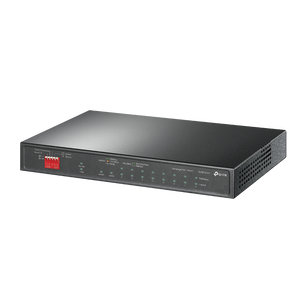

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

The TP-Link TL-SG1210P is a 10-port Gigabit desktop switch that features 8 Power over Ethernet (PoE+) ports. This switch is designed for small to medium-sized networks, providing both data and power to connected devices such as IP cameras, wireless access points, and VoIP phones.

Key Features

• Port Configuration:
  • 8 x 10/100/1000 Mbps RJ45 PoE+ ports and 1 x 10/100/1000 Mbps RJ45 port, along with 1 Gigabit SFP port for flexible network expansion.
• PoE Power Budget:
  • Each PoE port can deliver up to 30W, with a total PoE power budget of 63W, allowing multiple powered devices to be connected without the need for additional power sources.
• Plug and Play:
  • Easy installation with no configuration required; simply plug in your devices and start using the switch.
• Advanced Features:
  • Supports 802.1p and DSCP QoS for traffic prioritization, ensuring smooth performance for voice and video applications.
  • IGMP Snooping optimizes multicast traffic delivery, enhancing network efficiency for applications like IPTV.
• Fanless Design:
  • The fanless design ensures quiet operation, making it suitable for office environments.

Technical Specifications

• Model: TP-Link TL-SG1210P

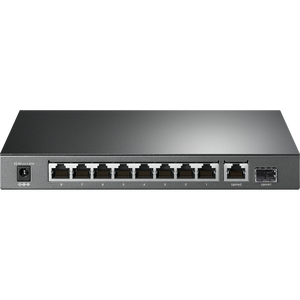

• Ports:
  • 8 x PoE+ 10/100/1000 Mbps RJ45 ports
  • 1 x 10/100/1000 Mbps RJ45 port
  • 1 x Gigabit SFP slot
• Switching Capacity:
  • Up to 20 Gbps
• MAC Address Table Size:
  • Supports up to 4,000 MAC addresses
• Max Power Consumption:
  • Approximately 7.11W (no PD connected) and up to 78.13W (with maximum PoE load).
• Dimensions:
  • Approximately 209 x 126 x 26 mm (8.2 x 5.0 x 1.0 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% non-condensing

Applications

The TL-SG1210P is particularly well-suited for:

• Powering IP surveillance systems.
• Connecting VoIP phones.
• Supporting wireless access points in office or home environments.
• Providing network connectivity in areas with limited power outlets.
