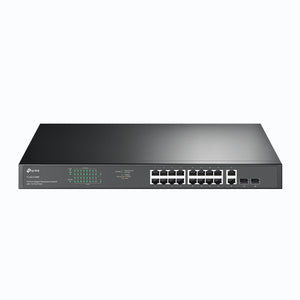

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE+

The TP-Link TL-SG1218MP is an 18-port Gigabit rackmount switch that features 16 Power over Ethernet (PoE+) ports. This switch is designed to provide both data and power to connected devices, making it ideal for applications such as IP surveillance, VoIP phones, and wireless access points in small to medium-sized business environments.

Key Features

• Port Configuration:

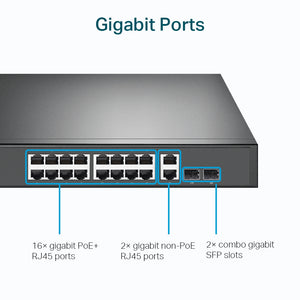

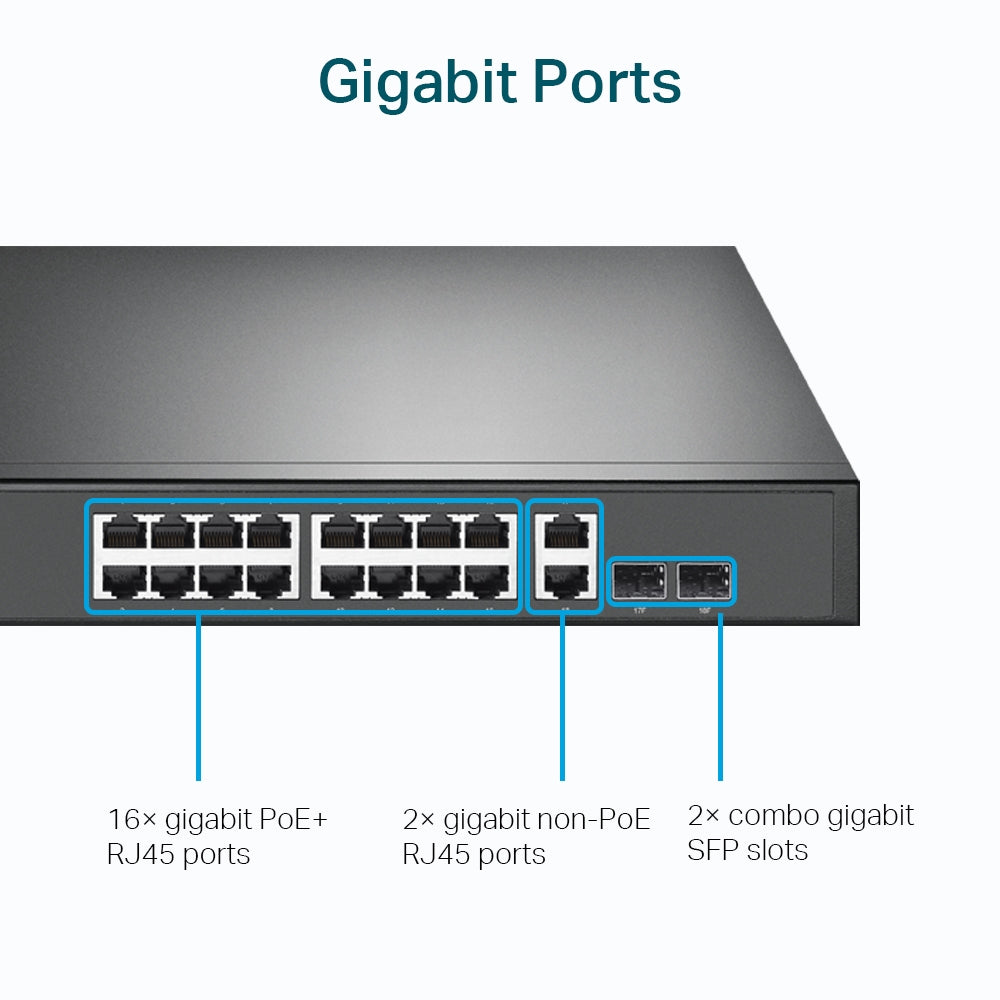

  • 16 x Gigabit PoE+ RJ45 ports and 2 x non-PoE Gigabit RJ45 ports, along with 2 combo Gigabit SFP slots for flexible network expansion.
• PoE Power Budget:
  • Each PoE port can deliver up to 30W, with a total PoE power budget of 250W, allowing for the connection of multiple powered devices without the need for additional power sources.
• High Performance:
  • Switching Capacity: 36 Gbps
  • Packet Forwarding Rate: Up to 26.78 Mbps
  • MAC Address Table Size: Supports up to 8,000 MAC addresses
  • Packet Buffer Memory: 4.1 Mbit
• Advanced Features:
  • Supports 802.1p QoS for traffic prioritization, ensuring smooth performance for latency-sensitive applications like voice and video.
  • Features such as IGMP Snooping enhance multicast traffic management.
• User-Friendly Design:

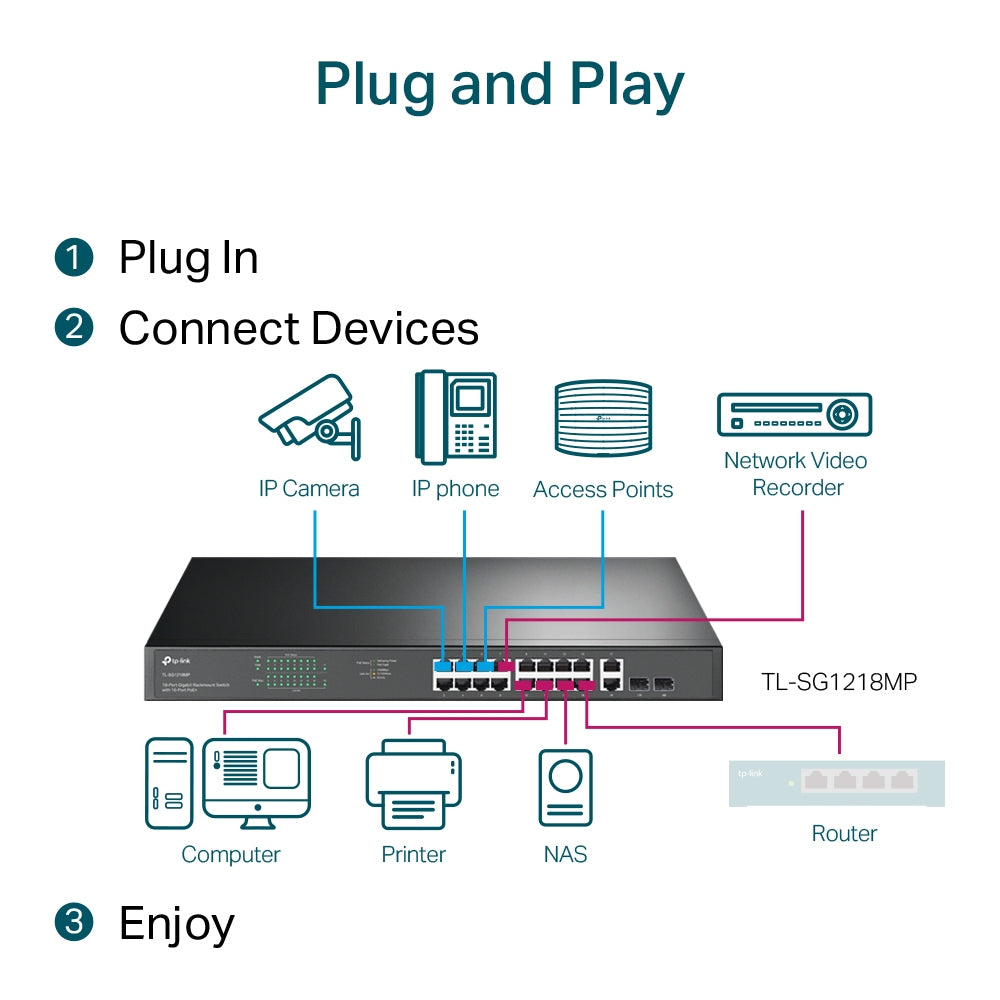

  • Plug-and-play installation with no configuration required. Auto MDI/MDI-X support eliminates the need for crossover cables.
• Durable Construction:

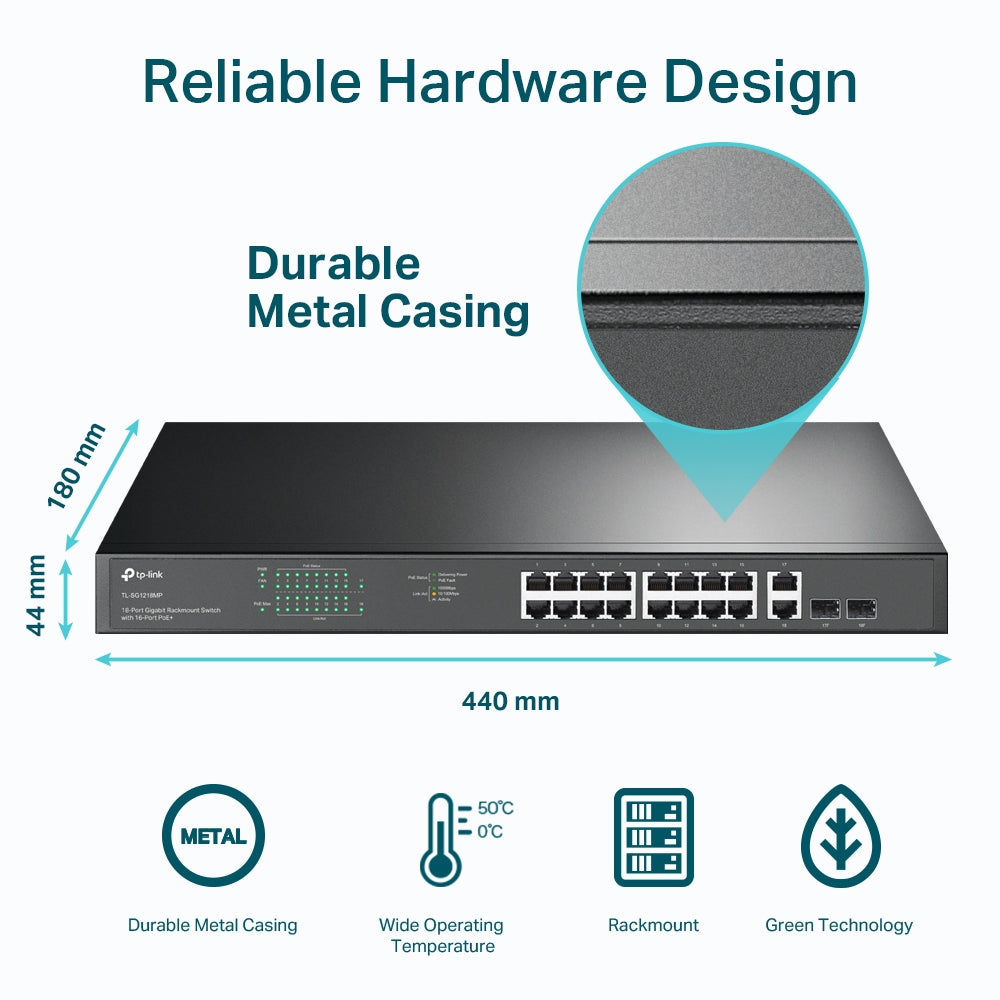

  • Rack-mountable design (1U height) with a sturdy metal casing, suitable for various installation environments.

Technical Specifications

• Model: TP-Link TL-SG1218MP
• Ports:
  • 16 x 10/100/1000 Mbps RJ45 PoE+ ports
  • 2 x 10/100/1000 Mbps non-PoE RJ45 ports
  • 2 x Combo Gigabit SFP slots
• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz
• Max Power Consumption:
  • Approximately 21.4W (no powered device connected) and up to 286.6W (with maximum load).
• Dimensions:
  • Approximately 440 x 180 x 44 mm (17.3 x 7.1 x 1.73 in)
• Operating Temperature:
  • Ranges from 0°C to +50°C (32°F to +122°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing

Applications

The TL-SG1218MP is particularly well-suited for:

• Powering IP cameras and wireless access points in surveillance systems.
• Connecting VoIP phones in office environments.
• Supporting network expansion in small businesses or dormitories.
