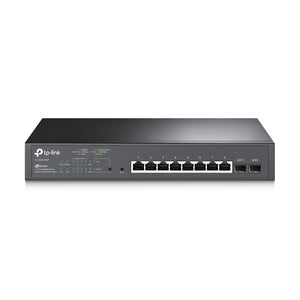

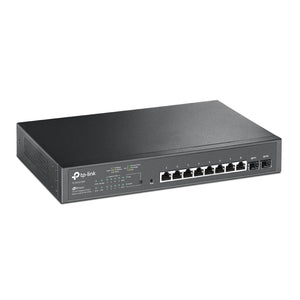

TP-Link TL-SG2210MP 10-Port Gigabit Smart Switch with 8 PoE+ Ports

The TP-Link TL-SG2210MP is a 10-port Gigabit Smart switch designed for small to medium-sized businesses. It features 8 Power over Ethernet (PoE+) ports, providing both data and power to connected devices such as IP cameras, VoIP phones, and wireless access points. This switch is part of the JetStream series and is optimized for voice and video applications.

Key Features

• Port Configuration:
  • 8 x 10/100/1000 Mbps RJ45 PoE+ ports (compliant with IEEE 802.3at/af) and 2 x Gigabit SFP slots for fiber uplink connections.
• PoE Power Budget:
  • Each PoE port can deliver up to 30W, with a total PoE power budget of 150W, allowing multiple powered devices to be connected without additional power sources.
• Performance:
  • Switching Capacity: 20 Gbps
  • Packet Forwarding Rate: Up to 14.9 Mpps
  • MAC Address Table Size: Supports up to 8,000 MAC addresses
  • Jumbo Frame Support: Up to 9,000 bytes, enhancing performance for large data transfers.
• Management Features:
  • Supports advanced Layer 2 features including VLANs, IGMP Snooping, QoS (Quality of Service), and Access Control Lists (ACLs).
  • Integrated with the Omada Software Defined Networking (SDN) platform for centralized management and monitoring of network devices.
• Security Features:
  • Robust security options including DHCP Snooping, DoS Attack Prevention, and RADIUS Authentication to protect the network from unauthorized access.
• User-Friendly Design:
  • Plug-and-play installation with no configuration required. Auto MDI/MDI-X support simplifies connectivity.
  • Rack-mountable design with included mounting kits for easy installation in a standard rack.

Technical Specifications

• Model: TP-Link TL-SG2210MP
• Ports:
  • 8 x Gigabit PoE+ RJ45 ports
  • 2 x Gigabit SFP slots
• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz
• Max Power Consumption:
  • Approximately 173.9W (maximum load) and around 8.56W (standby).
• Dimensions:
  • Approximately 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in)
• Operating Temperature:
  • Ranges from 0°C to +50°C (32°F to +122°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing

Applications

The TL-SG2210MP is particularly well-suited for:

• Powering IP surveillance systems.
• Connecting VoIP phones in office environments.
• Supporting wireless access points.
• Managing network traffic efficiently in small to medium-sized business networks.
