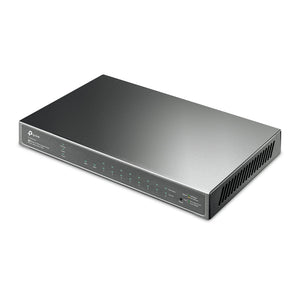

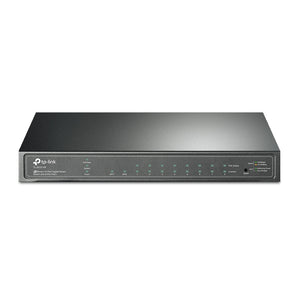

TP-Link TL-SG2210P 10-Port Gigabit Smart PoE Switch

The TP-Link TL-SG2210P is a 10-port Gigabit Smart switch designed for small to medium-sized businesses. It features 8 Power over Ethernet (PoE+) ports, providing both data and power to connected devices such as IP cameras, VoIP phones, and wireless access points. This switch is part of the JetStream series and offers advanced management features for efficient network operation.

Key Features

• Port Configuration:

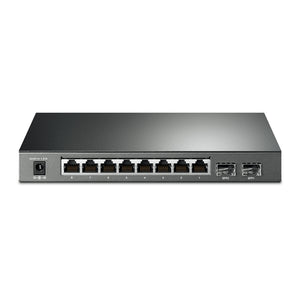

  • 8 x 10/100/1000 Mbps RJ45 PoE+ ports and 2 x Gigabit SFP slots for fiber uplink connections.
• PoE Power Budget:
  • Each PoE port can deliver up to 30W, with a total PoE power budget of 61W, allowing multiple powered devices to be connected without additional power sources.
• High Performance:
  • Switching Capacity: 20 Gbps
  • Packet Forwarding Rate: Up to 14.88 Mpps
  • MAC Address Table Size: Supports up to 8,000 MAC addresses
  • Jumbo Frame Support: Up to 9,216 bytes, enhancing performance for large data transfers.
• Advanced Management Features:
  • Supports VLANs (up to 512 VLANs), IGMP Snooping for multicast traffic management, and QoS (Quality of Service) for prioritizing critical applications.
  • Integrated with the Omada Software Defined Networking (SDN) platform for centralized management and monitoring.
• Security Features:
  • Robust security options including Access Control Lists (ACLs), port security, and storm control to protect the network from unauthorized access.
• User-Friendly Design:
  • Plug-and-play installation with no configuration required. Auto MDI/MDI-X support simplifies connectivity.
  • Fanless design ensures quiet operation, making it suitable for office environments.

Technical Specifications

• Model: TP-Link TL-SG2210P
• Ports:
  • 8 x Gigabit PoE+ RJ45 ports
  • 2 x Gigabit SFP slots
• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz; External power adapter (Output: 54V DC / 1.3A)
• Max Power Consumption:
  • Approximately 75.3W (maximum load) and around 10.5W (standby).
• Dimensions:
  • Approximately 209 x 126 x 26 mm (8.2 x 4.9 x 1.0 in)
• Operating Temperature:
  • Ranges from 0°C to +50°C (32°F to +122°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing

Applications

The TL-SG2210P is particularly well-suited for:

• Powering IP surveillance systems.
• Connecting VoIP phones in office environments.
• Supporting wireless access points.
• Managing network traffic efficiently in small to medium-sized business networks.
