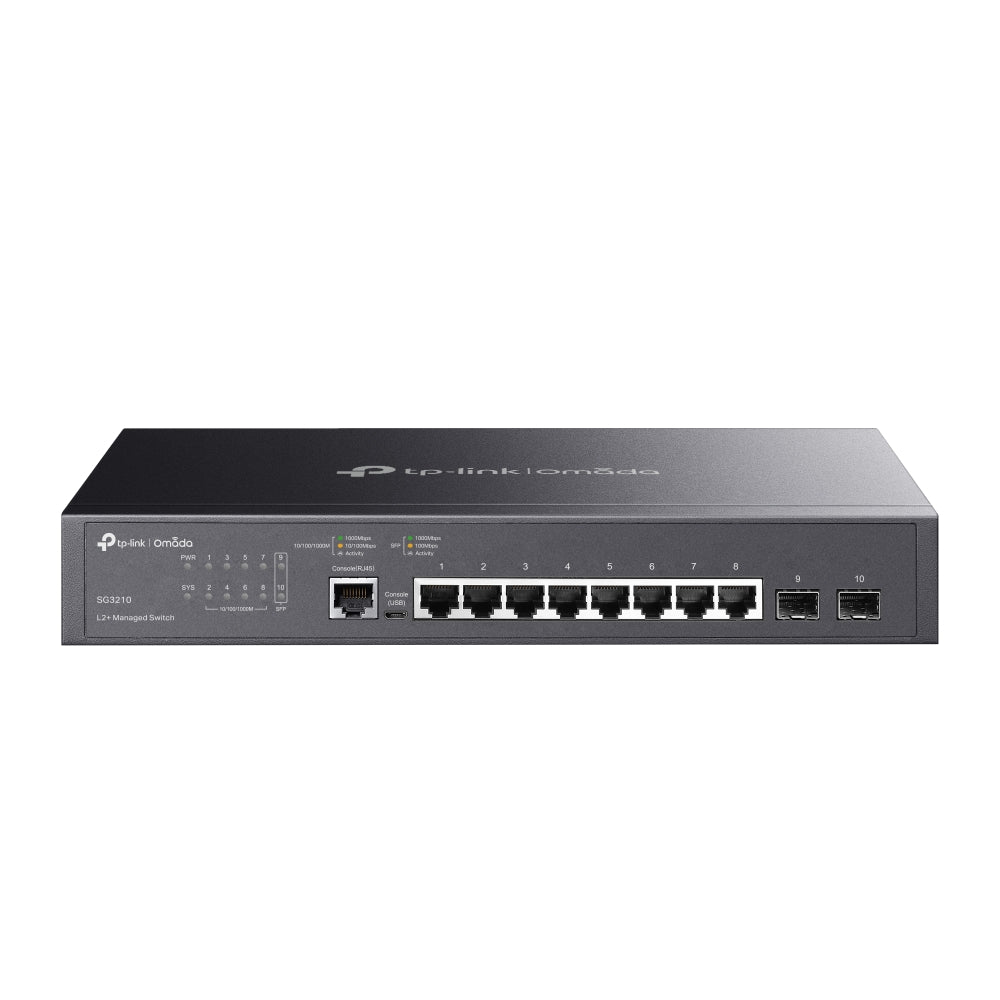

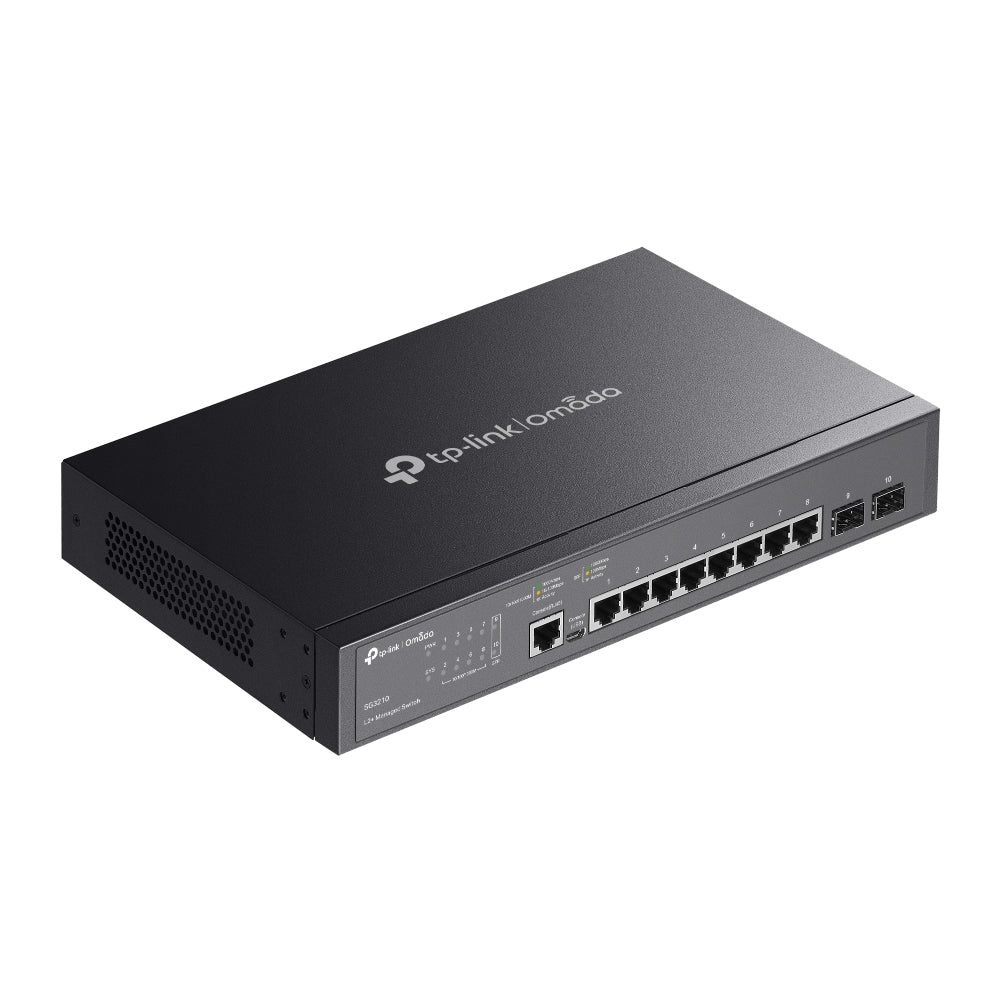

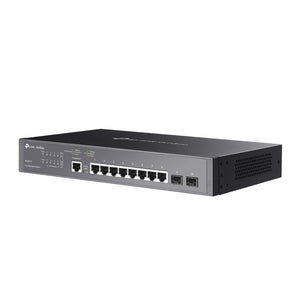

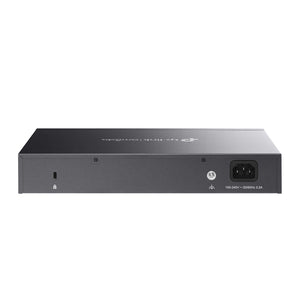

TP-Link TL-SG3210 8-Port Gigabit L2+ Managed Switch

The TP-Link TL-SG3210 is an 8-port Gigabit L2+ managed switch designed for small to medium-sized networks. It offers advanced management features, high performance, and flexible connectivity options, making it suitable for various applications, including voice, video, and data services.

Key Features

• Port Configuration:
  • 8 x 10/100/1000 Mbps RJ45 ports for high-speed connections.
  • 2 x Gigabit SFP slots for fiber uplink connectivity.
  • 1 x RJ45 Console Port and 1 x Micro-USB Console Port for management access.
• Performance:
  • Switching Capacity: 20 Gbps, allowing for efficient data handling.
  • Packet Forwarding Rate: Up to 14.89 Mpps, ensuring smooth data transmission.
  • MAC Address Table Size: Supports up to 8,000 MAC addresses.
  • Jumbo Frame Support: Up to 9 KB, which enhances performance for large data transfers.
• Advanced Management Features:
  • Supports VLANs (802.1Q), IGMP Snooping for multicast traffic management, and QoS (Quality of Service) for prioritizing critical applications.
  • Web-based GUI and Command Line Interface (CLI) for easy configuration and monitoring.
  • SNMP support for network management and monitoring.
• Security Features:
  • Includes Access Control Lists (ACLs), DHCP Snooping, and Storm Control to protect the network from unauthorized access and threats.
• User-Friendly Design:
  • Fanless design ensures quiet operation, making it suitable for office environments.
  • Rack-mountable design with included mounting kits for easy installation in standard racks.

Technical Specifications

• Model: TP-Link TL-SG3210
• Ports:
  • 8 x Gigabit RJ45 ports
  • 2 x Gigabit SFP slots
• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz
• Max Power Consumption:
  • Approximately 6.84 W at maximum load.
• Dimensions:
  • Approximately 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in)
• Operating Temperature:
  • Ranges from 0°C to +45°C (32°F to +113°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing

Applications

The TL-SG3210 is particularly well-suited for:

• Small to medium-sized business networks requiring efficient traffic management.
• Environments needing reliable connectivity for IP surveillance systems and VoIP applications.
• Expanding existing networks with additional ports while maintaining high performance.
