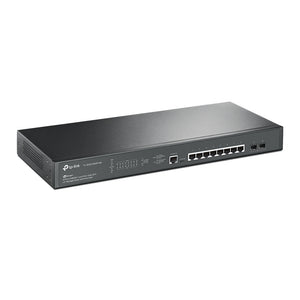

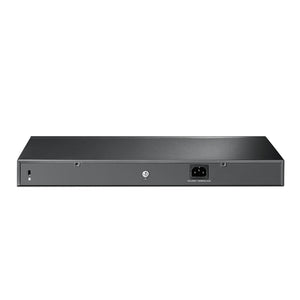

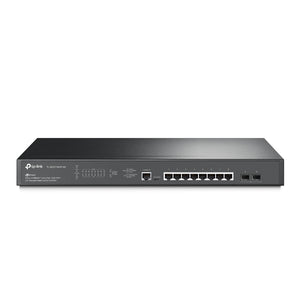

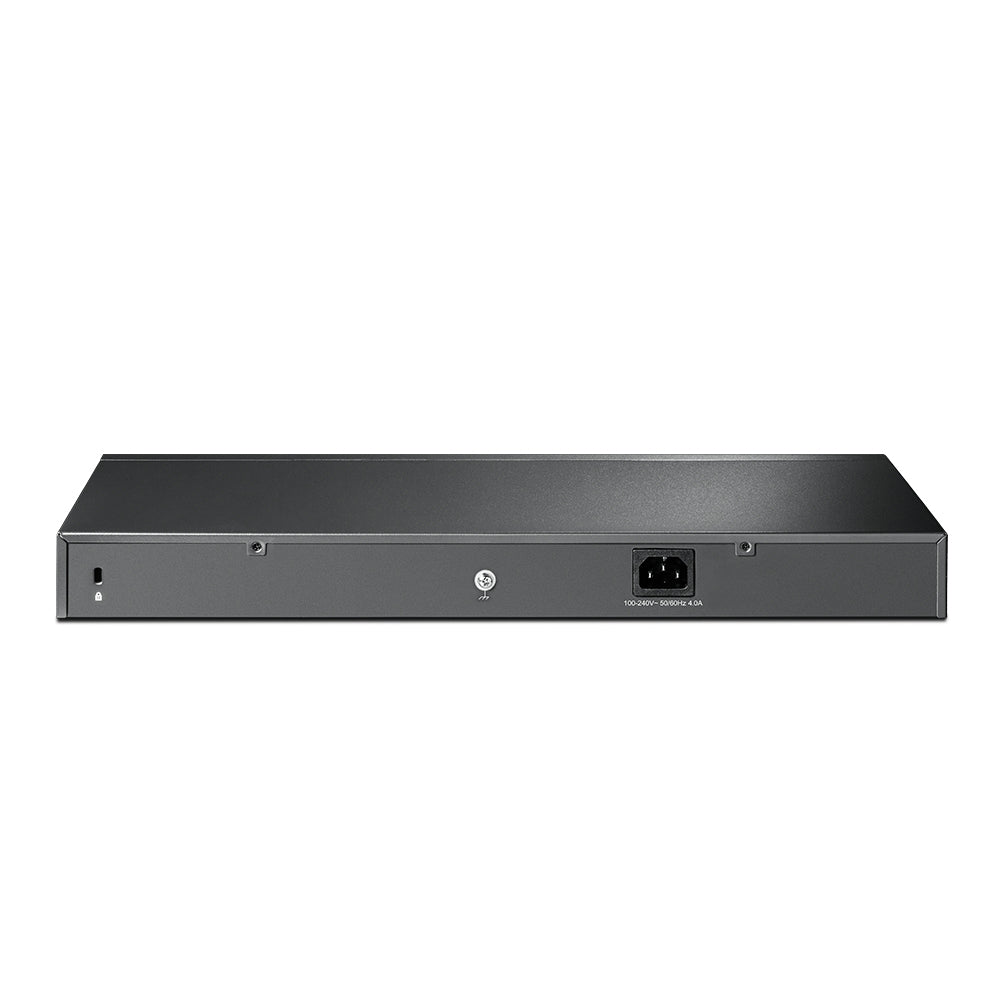

TP-Link TL-SG3210XHP-M2 8-Port 2.5GBASE-T Managed Switch

The TP-Link TL-SG3210XHP-M2 is an 8-port 2.5GBASE-T managed switch designed for small to medium-sized business networks. It features advanced Layer 2+ management capabilities, high performance, and extensive Power over Ethernet (PoE) support, making it ideal for applications that require robust connectivity and power delivery.

Key Features

• Port Configuration:
  • 8 x 100/1000/2500 Mbps RJ45 PoE+ ports for flexible connectivity.
  • 2 x 10G SFP+ slots for high-speed fiber uplink connections.
  • 1 x RJ45 Console Port and 1 x Micro-USB Console Port for management access.
• PoE Power Budget:
  • Each PoE port can deliver up to 30W, with a total PoE power budget of 240W, allowing multiple powered devices to be connected without additional power sources.
• Performance:
  • Switching Capacity: 80 Gbps, ensuring efficient data handling.
  • Packet Forwarding Rate: Up to 59.52 Mpps, facilitating smooth data transmission.
  • MAC Address Table Size: Supports up to 16,000 MAC addresses.
  • Jumbo Frame Support: Up to 9 KB, enhancing performance for large data transfers.
• Advanced Management Features:
  • Supports VLANs (802.1Q), IGMP Snooping for multicast traffic management, and QoS (Quality of Service) for prioritizing critical applications.
  • Static routing capability allows for internal traffic segmentation, improving network efficiency.
  • Web-based GUI and Command Line Interface (CLI) for easy configuration and monitoring.
• Security Features:
  • Includes Access Control Lists (ACLs), DHCP Snooping, and Storm Control to protect the network from unauthorized access and threats.
• User-Friendly Design:
  • Fanless design ensures quiet operation, suitable for office environments.
  • Rack-mountable design with included mounting kits for easy installation in standard racks.

Technical Specifications

• Model: TP-Link TL-SG3210XHP-M2
• Ports:
  • 8 x Gigabit RJ45 PoE+ ports
  • 2 x Gigabit SFP+ slots
• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz
• Max Power Consumption:
  • Approximately 17.2 W (no powered device connected) and up to 291.5 W (with maximum load).
• Dimensions:
  • Approximately 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in)
• Operating Temperature:
  • Ranges from 0°C to +50°C (32°F to +122°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing

Applications

The TL-SG3210XHP-M2 is particularly well-suited for:

• Powering IP cameras and wireless access points in surveillance systems.
• Connecting VoIP phones in office environments.
• Supporting high-bandwidth applications like video conferencing.
• Managing network traffic efficiently in small to medium-sized business networks.
