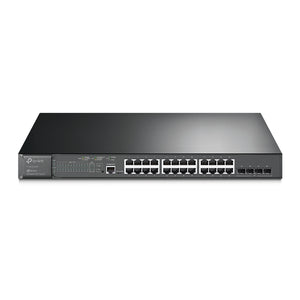

TP-Link TL-SG3428MP 28-Port Gigabit L2+ Managed Switch with 24 PoE+ Ports

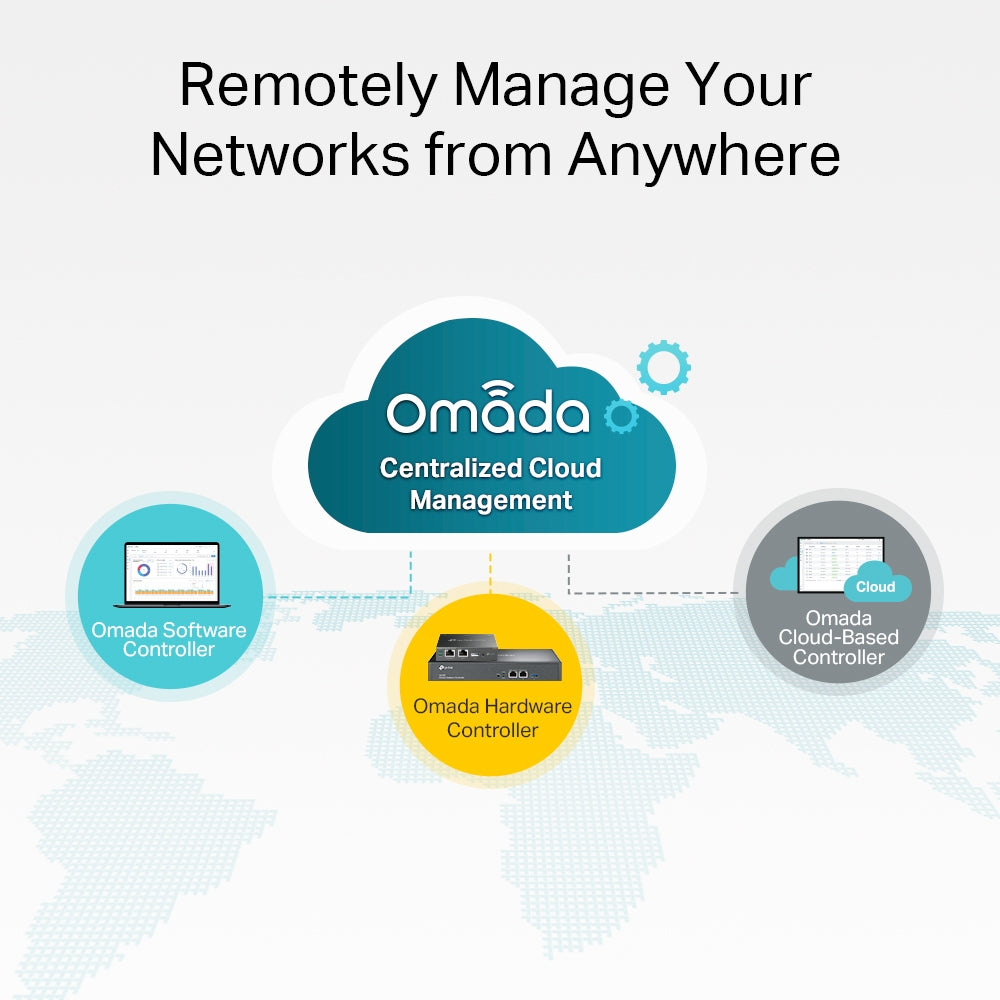

The TP-Link TL-SG3428MP is a high-performance 28-port Gigabit L2+ managed switch designed for small to medium-sized business networks. It features 24 Power over Ethernet (PoE+) ports, allowing users to power devices such as IP cameras, wireless access points, and VoIP phones directly through the Ethernet cable. This switch is integrated into the Omada Software Defined Networking (SDN) platform for centralized management.

Key Features

• Port Configuration:
  • 24 x 10/100/1000 Mbps RJ45 PoE+ ports compliant with IEEE 802.3af/at.
  • 4 x Gigabit SFP slots for high-speed fiber uplink connections.
  • 1 x RJ45 Console Port and 1 x Micro-USB Console Port for management access.

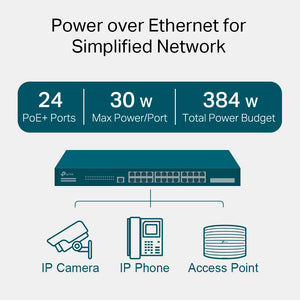

• PoE Power Budget:
  • Each PoE port can deliver up to 30W, with a total PoE power budget of 384W, enabling the connection of multiple powered devices without additional power sources.
• Performance:
  • Switching Capacity: 56 Gbps, ensuring efficient data handling.
  • Packet Forwarding Rate: Up to 41.66 Mpps, facilitating smooth data transmission.
  • MAC Address Table Size: Supports up to 16,000 MAC addresses.
  • Packet Buffer Memory: 4.1 Mbit.
  • Jumbo Frame Support: Up to 9 KB, enhancing performance for large data transfers.
• Advanced Management Features:
  • Supports VLANs (802.1Q), IGMP Snooping for multicast traffic management, and QoS (Quality of Service) for prioritizing critical applications.
  • Web-based GUI and Command Line Interface (CLI) for easy configuration and monitoring.
  • SNMP support for network management and monitoring.
• Security Features:
  • Includes Access Control Lists (ACLs), DHCP Snooping, and Storm Control to protect the network from unauthorized access and threats.
• User-Friendly Design:
  • Fan-assisted cooling design ensures efficient heat dissipation while maintaining quiet operation.
  • Rack-mountable design with included mounting kits for easy installation in standard racks.

Technical Specifications

• Model: TP-Link TL-SG3428MP
• Ports:
  • 24 x Gigabit RJ45 PoE+ ports
  • 4 x Gigabit SFP slots

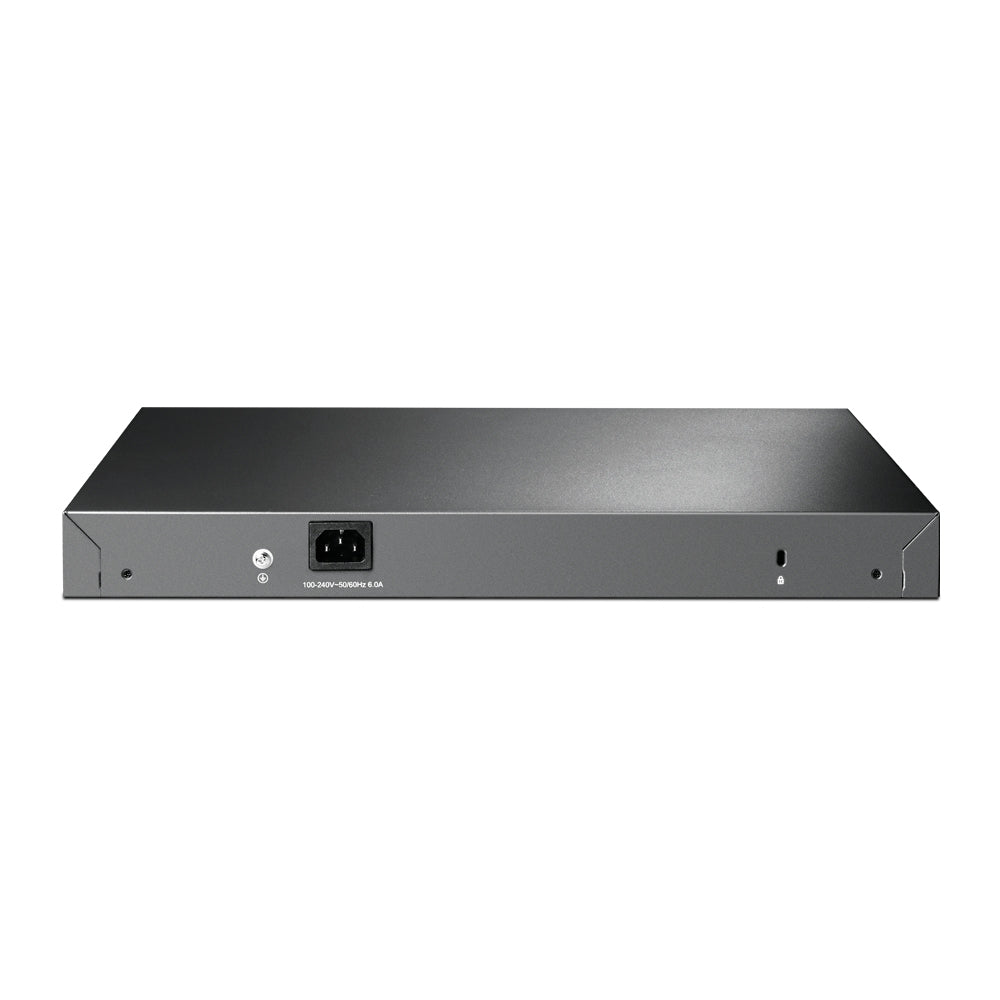

• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz
• Max Power Consumption:
  • Approximately 34.4 W (no powered device connected) and up to 463.8 W (with maximum load).

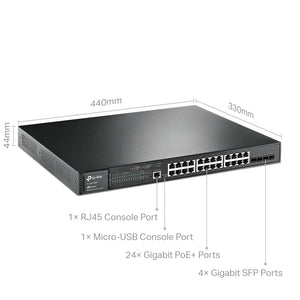

• Dimensions:
  • Approximately 440 x 330 x 44 mm (17.3 x 13.0 x 1.7 in)
• Operating Temperature:
  • Ranges from 0°C to +50°C (32°F to +122°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing

Applications

The TL-SG3428MP is particularly well-suited for:

• Powering IP cameras and wireless access points in surveillance systems.
• Connecting VoIP phones in office environments.
• Supporting high-bandwidth applications like video conferencing.
• Managing network traffic efficiently in small to medium-sized business networks.
