TP-Link TL-SG3428X 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

The TP-Link TL-SG3428X is a high-performance 24-port Gigabit L2+ managed switch designed for businesses that require enhanced speed, scalability, and advanced management capabilities. It features 4 SFP+ slots for 10 Gigabit fiber connections, making it suitable for high-bandwidth applications and complex network architectures.

Key Features

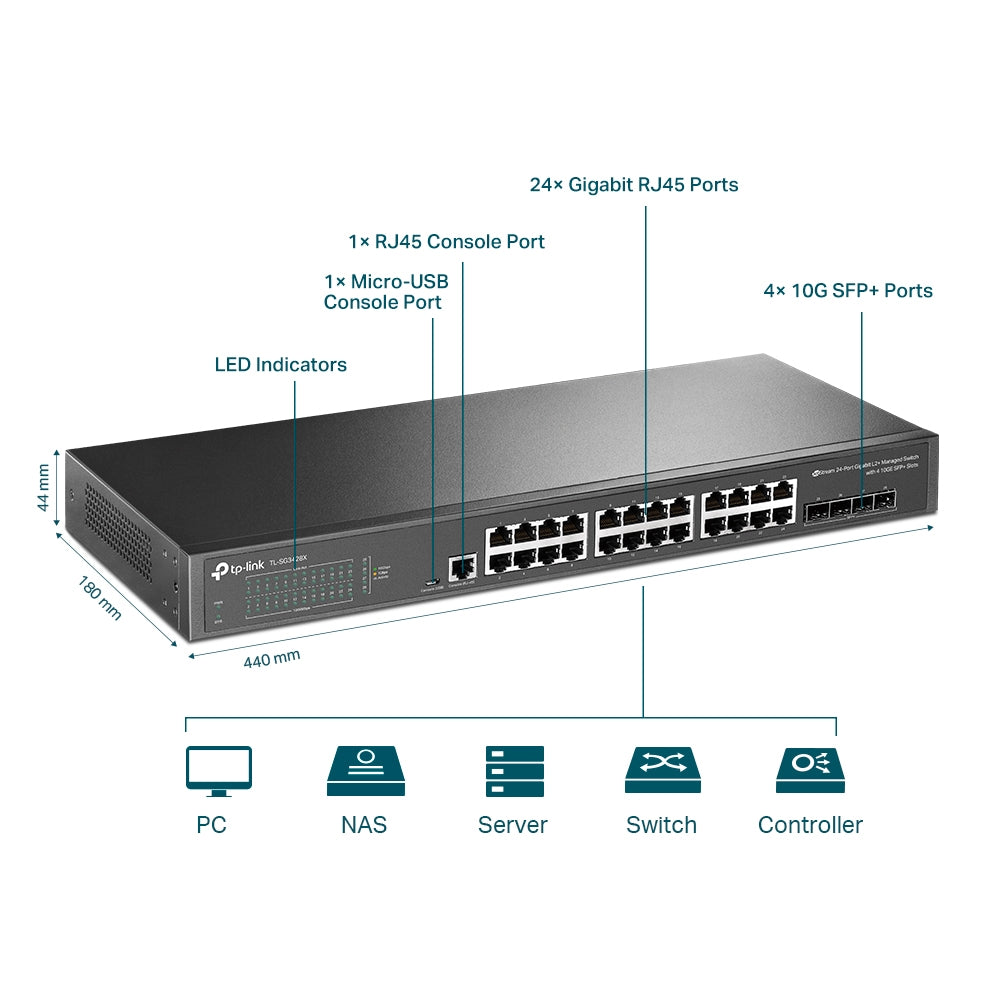

• Port Configuration:
  • 24 x 10/100/1000 Mbps RJ45 ports for reliable Ethernet connectivity.
  • 4 x 10G SFP+ slots for ultra-fast fiber uplink connections.
  • 1 x RJ45 Console Port and 1 x Micro-USB Console Port for management access.
• Performance:
  • Switching Capacity: 128 Gbps, allowing for efficient data handling across all ports.
  • Packet Forwarding Rate: Up to 95.23 Mpps, facilitating smooth data transmission even under heavy load.
  • MAC Address Table Size: Supports up to 16,000 MAC addresses.
  • Jumbo Frame Support: Up to 9 KB, which enhances performance for large data transfers.
• Advanced Management Features:
  • Supports essential Layer 2 features such as VLANs (802.1Q), IGMP Snooping for multicast traffic management, and QoS (Quality of Service) for prioritizing critical applications.
  • Static routing capability allows for efficient traffic management within the network.
  • Managed through a web interface, CLI, and SNMP for comprehensive control and monitoring.
• Security Features:
  • Comprehensive security options including Access Control Lists (ACLs), DHCP Snooping, and Storm Control to protect the network from unauthorized access and threats.
• User-Friendly Design:
  • Fanless design ensures quiet operation, making it suitable for office environments.
  • Rack-mountable design with included mounting kits for easy installation in standard racks.

Technical Specifications

• Model: TP-Link TL-SG3428X
• Ports:
  • 24 x Gigabit RJ45 ports
  • 4 x 10G SFP+ slots
• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz
• Max Power Consumption:
  • Approximately 23.6 W (no powered device connected) and up to 465.8 W (with maximum load).
• Dimensions:
  • Approximately 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in)
• Operating Temperature:
  • Ranges from 0°C to +50°C (32°F to +122°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing

Applications

The TL-SG3428X is particularly well-suited for:

• High-performance networking environments requiring reliable connectivity and power delivery.
• Powering IP surveillance systems and wireless access points in complex setups.
• Supporting VoIP phones and other critical business applications where performance is essential.
