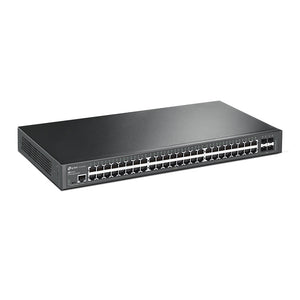

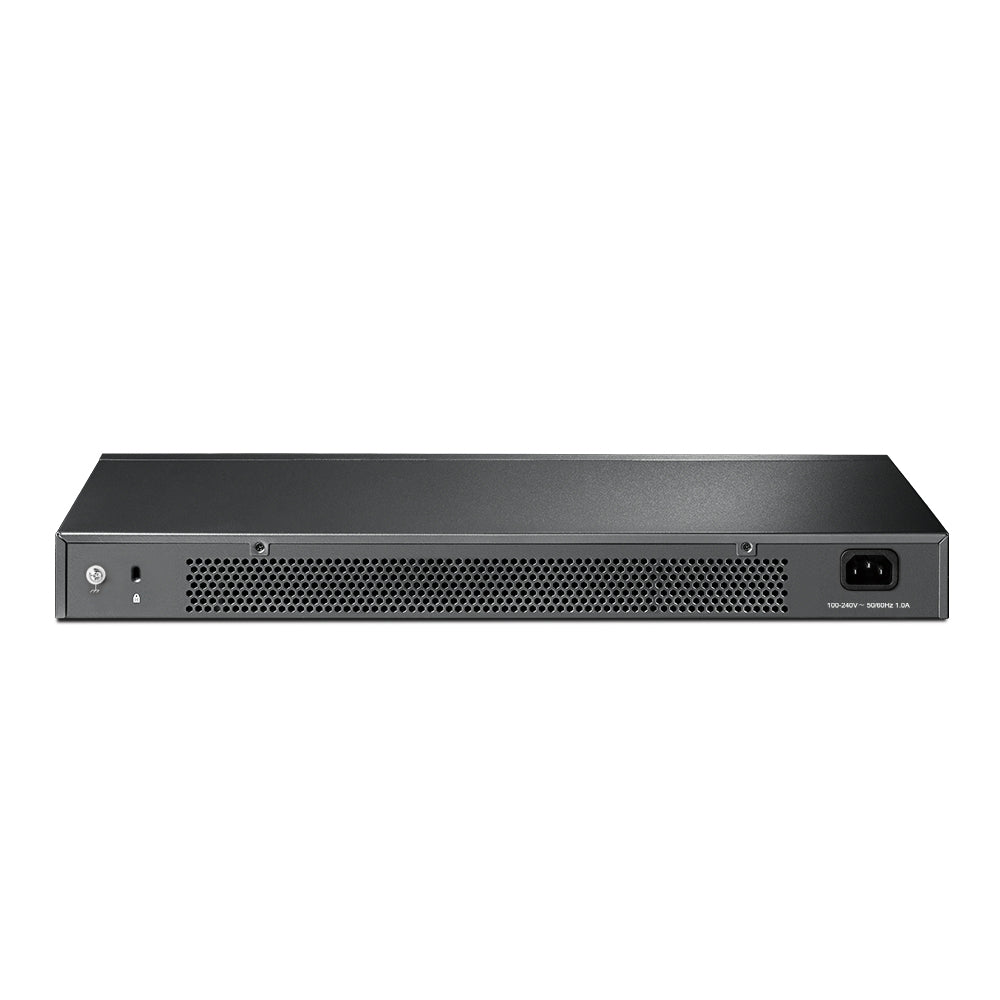

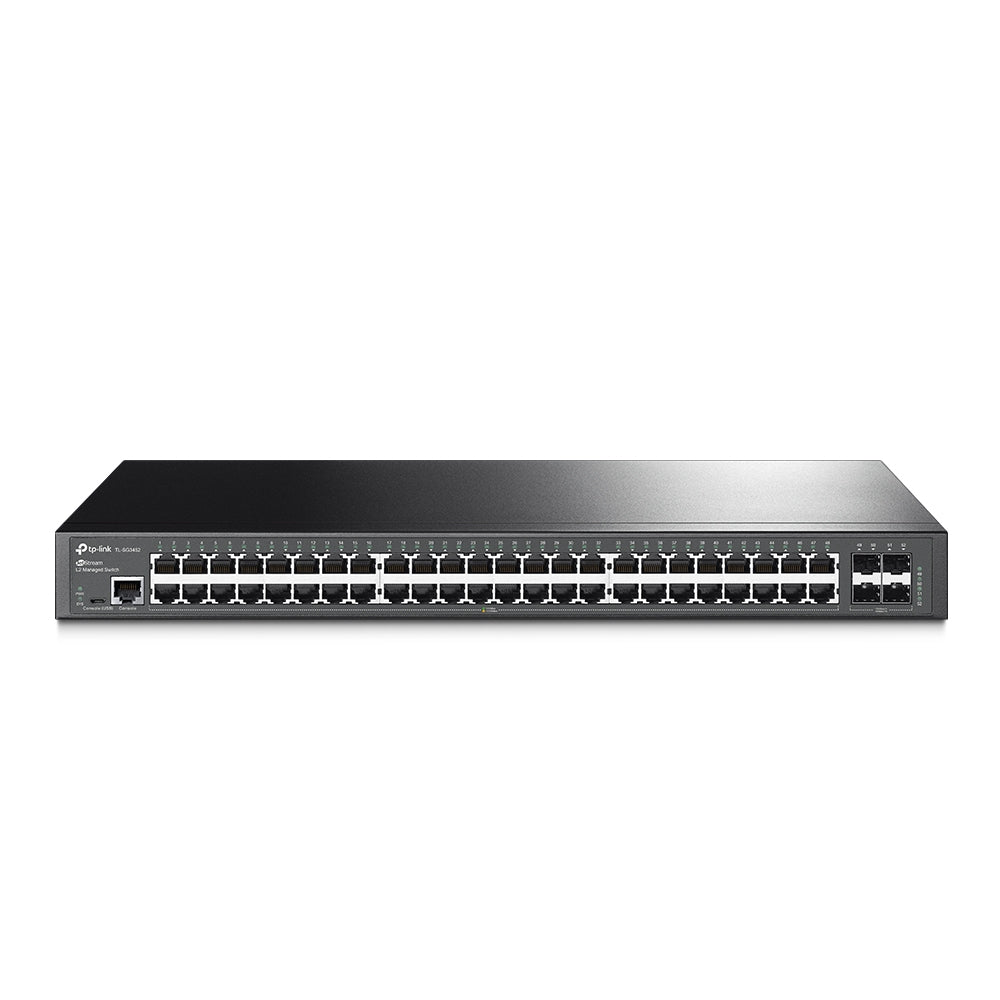

TP-Link TL-SG3452 48-Port Gigabit L2 Managed Switch with 4 SFP Slots

The TP-Link TL-SG3452 is a high-performance 48-port Gigabit L2 managed switch designed for small to medium-sized business networks. It features 4 SFP slots for fiber uplink connections, making it suitable for various applications that require high-speed connectivity and advanced management capabilities.

Key Features

• Port Configuration:
  • 48 x 10/100/1000 Mbps RJ45 ports for reliable Ethernet connectivity.
  • 4 x Gigabit SFP slots for flexible fiber uplink options.
  • 1 x RJ45 Console Port and 1 x Micro-USB Console Port for management access.
• Performance:
  • Switching Capacity: 104 Gbps, ensuring efficient data handling across all ports.
  • Packet Forwarding Rate: Up to 77.4 Mpps, facilitating smooth data transmission even under heavy load.
  • MAC Address Table Size: Supports up to 16,000 MAC addresses.
  • Packet Buffer Memory: 12 Mbit.
  • Jumbo Frame Support: Up to 9 KB, enhancing performance for large data transfers.
• Advanced Management Features:
  • Supports essential Layer 2 features such as VLANs (802.1Q), IGMP Snooping for multicast traffic management, and QoS (Quality of Service) for prioritizing critical applications.
  • Managed through a web interface, CLI, and SNMP for comprehensive control and monitoring.
  • Advanced features include static routing, DHCP snooping, and link aggregation.
• Security Features:
  • Comprehensive security options including Access Control Lists (ACLs), DHCP Snooping, and Storm Control to protect the network from unauthorized access and threats.
• User-Friendly Design:
  • Fanless design ensures quiet operation, making it suitable for office environments.
  • Rack-mountable design with included mounting kits for easy installation in standard racks.

Technical Specifications

• Model: TP-Link TL-SG3452
• Ports:
  • 48 x Gigabit RJ45 ports
  • 4 x Gigabit SFP slots
• Power Supply:
  • Input: 100–240 VAC, 50/60 Hz
• Max Power Consumption:
  • Approximately 32.8 W (220 V/50 Hz).
• Dimensions:
  • Approximately 440 x 220 x 44 mm (17.3 x 8.7 x 1.7 in)
• Operating Temperature:
  • Ranges from 0°C to +40°C (32°F to +104°F)
• Storage Temperature:
  • Ranges from -40°C to +70°C (-40°F to +158°F)
• Operating Humidity:
  • Humidity levels of 10% to 90% RH, non-condensing

Applications

The TL-SG3452 is particularly well-suited for:

• High-performance networking environments requiring reliable connectivity and power delivery.
• Powering IP surveillance systems and wireless access points in complex setups.
• Supporting VoIP phones and other critical business applications where performance is essential.
